Description

Price

300

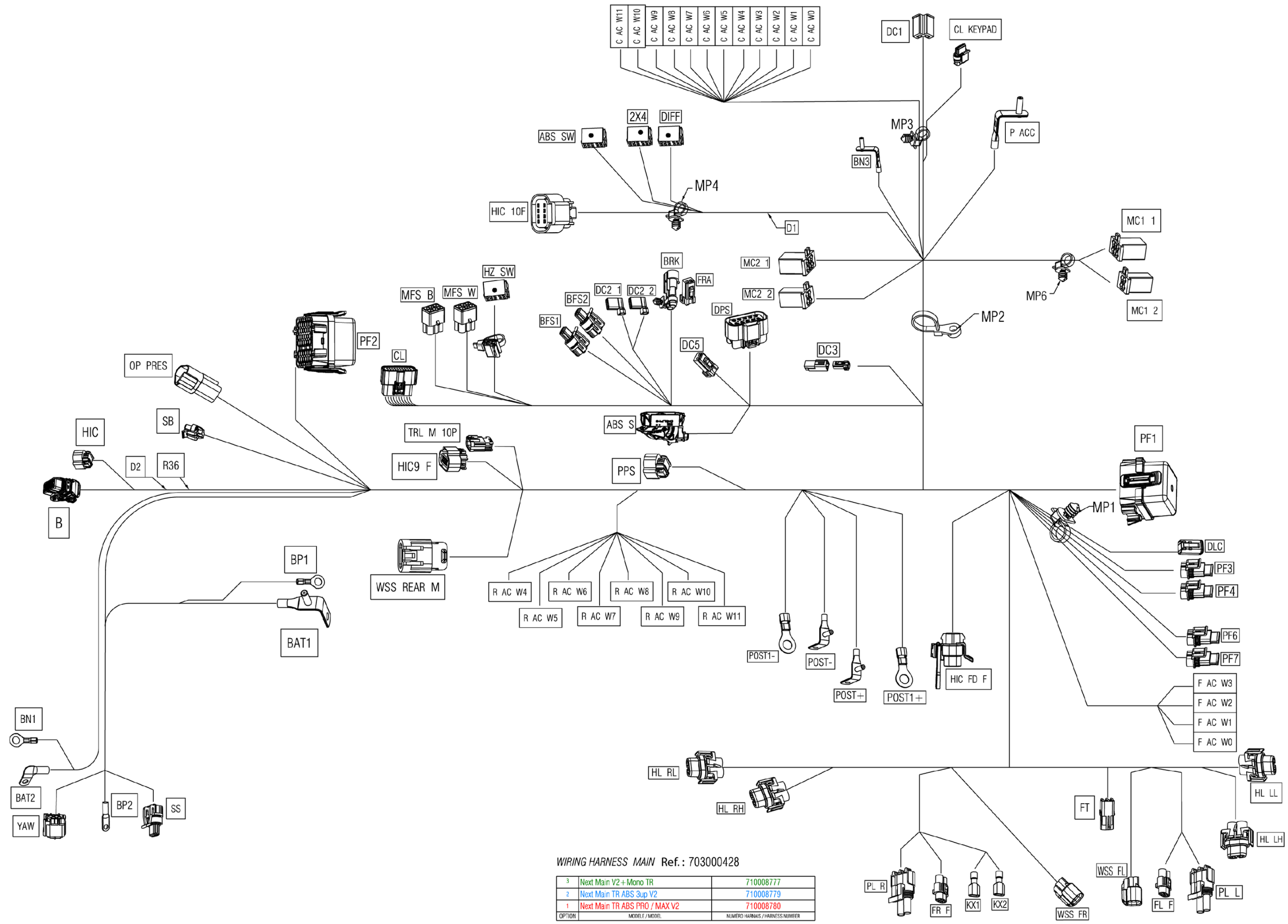

Main Wiring Harness

710008780

$827.58

2X4.

Housing

710002000

$6.73

2X4.

Terminal

710003047

$3.12

2X4.

Female Terminal

710005491

$1.57

ABS L

Wire Seal

710001159

$5.90

ABS L

Terminal

710002775

$0.74

ABS M

Wire Seal

278000999

$2.93

ABS M

Female Terminal

710000836

$5.30

ABS S

RH Connector Cover

710002772

$4.19

ABS S

Housing

710002768

$16.39

ABS S

Plug

710001258

$3.29

ABS S

Wire Seal

710006230

$1.49

ABS S

Terminal

710002773

$2.09

ABS SW

Housing

710002000

$6.73

ABS SW

Female Terminal

710005491

$1.57

B

Cover, 48 positions

710001591

$11.54

B

Female Terminal Housing, 48 Circuits

710001588

$45.49

B

Plug

710001592

$2.06

B

Plug

710001593

$2.06

B

Female Terminal

710001727

$2.93

B

Terminal

710001728

$5.52

B

Female Terminal

710001589

$2.06

BFS1

Female Housing, 2 Circuits

515177192

$7.25

BFS1

Lock

710001152

$4.00

BFS1

Wire Seal

710001163

$5.85

BFS1

Female Terminal

710001164

$6.79

BFS2

Female Housing, 2 Circuits

515177192

$7.25

BFS2

Lock

710001152

$4.00

BFS2

Wire Seal

710001163

$5.85

BFS2

Female Terminal

710001164

$6.79

BN1

Terminal

710000913

$5.30

BN3

Open Barell

710006801

$9.25

BP1

Open Barrel

278000992

$2.06

BP2

Cap Battery Cable

710007033

$5.75

BRK

Male Terminal Housing, 2 Circuits

409209400

$14.52

BRK

Wire Seal

515176621

$6.79

BRK

Male Terminal

515176164

$6.24

C AC W0

Insulated Sheath

278001008

$3.10

C AC W0

Male Terminal

278000230

$4.00

C AC W1

Insulated Sheath

278001008

$3.10

C AC W1

Male Terminal

278000230

$4.00

C AC W11

Insulated Sheath

278001008

$3.10

C AC W11

Male Terminal

278000230

$4.00

C AC W2

Insulated Sheath

278001008

$3.10

C AC W2

Male Terminal

278000230

$4.00

C AC W3

Insulated Sheath

278001008

$3.10

C AC W3

Male Terminal

278000230

$4.00

C AC W4

Insulated Sheath

278001008

$3.10

C AC W4

Male Terminal

278000230

$4.00

C AC W5

Insulated Sheath

278001008

$3.10

C AC W5

Male Terminal

278000230

$4.00

C AC W6

Insulated Sheath

278001008

$3.10

C AC W6

Male Terminal

278000230

$4.00

C AC W7

Insulated Sheath

278001008

$3.10

C AC W7

Male Terminal

278000230

$4.00

C AC W8

Insulated Sheath

278001008

$3.10

C AC W8

Male Terminal

278000230

$4.00

C AC W9

Insulated Sheath

278001008

$3.10

C AC W9

Male Terminal

278000230

$4.00

C AC-W10

Insulated Sheath

278001008

$3.10

C AC-W10

Male Terminal

278000230

$4.00

CL

Female Housing 20 Circuits

278002858

$22.98

CL

Sealing Cap

278002860

$1.63

CL

Female Terminal

515178018

$0.90

CL

Female Terminal 22 AWG

515178349

$1.76

CL KEYPAD

Housing

710001161

$10.51

CL KEYPAD

Lock

710001162

$3.18

CL KEYPAD

Wire Seal

710001163

$5.85

CL KEYPAD

Female Terminal

710001164

$6.79

D2

Diode

409012700

$10.51

DC1

Housing

710005373

$3.93

DC1

Terminal

710005518

$1.49

DC2 1

Female Terminal

409010300

$4.00

DC2 2

Female Terminal

409010300

$4.00

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Female Terminal

515175231

$4.00

DC3 CAP

Male Housing, 2 Circuits

710000667

$7.25

DC5

Female Housing, 2 Circuits

515175658

$14.90

DC5

Female Terminal

515175231

$4.00

DC5 CAP

Male Housing, 2 Circuits

710000667

$7.25

DIFF

Housing

710002000

$6.73

DIFF

Female Terminal

710005491

$1.57

DIFF

Terminal

710003047

$3.12

DLC

Female Housing 6 Circuits

710002706

$18.63

DLC

Lock

710002705

$4.15

DLC

Female Terminal

710005438

$3.88

DLC

Female Terminal

710005439

$4.15

DPS

Female Housing

710004989

$7.00

DPS

Lock | PACKARD 15430900

710005098

$1.57

DPS

Lock

710001222

$1.93

DPS

Plug

710002075

$2.84

DPS

Wire Seal

278002186

$5.18

DPS

Seal

710003153

$0.91

DPS

Female Terminal

278002187

$5.79

DPS

Terminal

710001873

$2.19

F AC W0

Insulated Sheath

278001007

$3.12

F AC W0

Female Terminal | DS 650 X

278001009

$2.93

F AC W1

Insulated Sheath

278001007

$3.12

F AC W1

Female Terminal | DS 650 X

278001009

$2.93

F AC W2

Insulated Sheath

278001007

$3.12

F AC W2

Female Terminal | DS 650 X

278001009

$2.93

F AC W3

Insulated Sheath

278001007

$3.12

F AC W3

Female Terminal | DS 650 X

278001009

$2.93

FL F

Wire Seal

710000402

$4.28

FL F

Female Terminal

409012100

$4.28

FL-1

Fuse Link 21-30AMP

715002536

$14.27

FL-2

Fuse Link 41-50AMP

715002538

$20.12

FR F

Wire Seal

710000402

$4.28

FR F

Female Terminal

409012100

$4.28

FT

Clip

710000992

$3.88

FT

Female Housing, 2 Circuits

278000217

$8.72

FT

Wire Seal

278000218

$4.00

FT

Male Terminal

409004300

$5.30

HIC

Female Housing, 12 Circuits

710001930

$13.52

HIC

Lock

710006333

$5.52

HIC

Lock

710001222

$1.93

HIC

Cap

710001225

$8.34

HIC

Seal

710001233

$2.93

HIC

Seal Wire

710001332

$3.12

HIC

Terminal

710001229

$2.93

HIC

Terminal

710001228

$3.12

HIC-10 F

Housing

710001928

$14.52

HIC-10 F

Lock

710001222

$1.93

HIC-10 F

Lock

710006181

$3.12

HIC-10 F

Seal

710001233

$2.93

HIC-10 F

Terminal

710001229

$2.93

HIC9 F

Female Housing, 12 Circuits

710001930

$13.52

HIC9 F

Lock

710006333

$5.52

HIC9 F

Lock

710001222

$1.93

HIC9 F

Cap

710001225

$8.34

HIC9 F

Seal

710001233

$2.93

HIC9 F

Seal Wire

710001332

$3.12

HIC9 F

Terminal

710001229

$2.93

HIC9 F

Terminal

710001228

$3.12

HL LH.

Housing

710002578

$3.12

HL LH.

Lock

710002584

$3.93

HL LH.

Wire Seal

710001427

$2.09

HL LH.

Female Terminal

278002578

$0.99

HL LL.

Housing

710002578

$3.12

HL LL.

Lock

710002584

$3.93

HL LL.

Wire Seal

710001427

$2.09

HL LL.

Female Terminal

278002578

$0.99

HL RH.

Housing

710002578

$3.12

HL RH.

Lock

710002584

$3.93

HL RH.

Wire Seal

710001427

$2.09

HL RH.

Female Terminal

278002578

$0.99

HL RL.

Housing

710002578

$3.12

HL RL.

Lock

710002584

$3.93

HL RL.

Wire Seal

710001427

$2.09

HL RL.

Female Terminal

278002578

$0.99

HZ SW

Housing

710002000

$6.73

HZ SW

Terminal

710003047

$3.12

HZ SW

Female Terminal

710005491

$1.57

KX1

Female Terminal

409010700

$4.93

KX2

Female Terminal

409010700

$4.93

MC1 1

Female Housing

710004047

$13.12

MC1 1

Terminal

710002315

$4.19

MC1 2

Female Housing

710004048

$13.75

MC1 2

Terminal

710002315

$4.19

MC2 1

Female Housing

710004047

$13.12

MC2 1

Terminal

710002315

$4.19

MC2 2

Female Housing

710004048

$13.75

MC2 2

Terminal

710002315

$4.19

MFS B

Female Housing, 6 Circuits

710000081

$7.88

MFS B

Cap

710000080

$6.28

MFS B

Wire Seal

710000402

$4.28

MFS B

Female Terminal

409012100

$4.28

MFS W

Female Housing, 6 Circuits

710000081

$7.88

MFS W

Cap

710000080

$6.28

MFS W

Seal

409012300

$4.25

MFS W

Wire Seal

710000402

$4.28

MFS W

Female Terminal

409012100

$4.28

OP PRES

Male Housing

278002378

$12.52

OP PRES

Clip

710005273

$6.75

OP PRES

Male Lock, 3 Circuits

409207600

$2.93

OP PRES

Male Terminal

710001348

$10.81

P ACC

Folded Terminal Eyelet

710006749

$9.25

PF1

Fuse Cover

278003553

$3.79

PF1

Fuse Base Ass'y

278003448

$30.57

PF1

Wire Seal

278000216

$2.93

PF1

Seal

293300198

$1.78

PF1

Wire Seal

278000218

$4.00

PF1

Wire Seal

278001065

$5.85

PF1

Wire Seal

710000048

$5.85

PF1

Female Terminal

710000918

$5.85

PF1

Female Terminal

278002578

$0.99

PF1

Female Terminal

515177177

$4.96

PF1

Terminal

710008508

$4.19

PF1 T LABEL

Fuse Box Decal

710008096

$12.30

PF1-F10

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F11

Little Fuse, 20 Amperes

710000746

$7.78

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F14

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F18

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F24

Little Fuse, 5 Amperes

710000742

$8.31

PF1-F25

Little Fuse, 5 Amperes

710000742

$8.31

PF1-F26

Little Fuse, 5 Amperes

710000742

$8.31

PF1-R3

Relay, 30 AMP

515176774

$18.63

PF1-R8

Relay

715900824

$18.63

PF1-R9

Relay, 50 AMP

515176775

$13.45

PF1-SPARE

Little Fuse, 20 Amperes

710000746

$7.78

PF2

Fuse Cover

278003553

$3.79

PF2

Fuse Base Ass'y

278003448

$30.57

PF2

Wire Seal

278000216

$2.93

PF2

Seal

293300198

$1.78

PF2

Wire Seal

278000218

$4.00

PF2

Wire Seal

278001065

$5.85

PF2

Female Terminal

710000918

$5.85

PF2

Female Terminal

278002578

$0.99

PF2

Female Terminal

710000890

$4.28

PF2 LABEL

Fuse Box Decal

710008085

$12.79

PF2 SP1

Little Fuse, 10 Amperes

710000744

$8.31

PF2 SP2

Little Fuse, 10 Amperes

710000744

$8.31

PF2 SP3

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F7

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F9

Fuse, 25 Amps

710002590

$17.88

PF2-R1

Relay, 30 AMP

515176774

$18.63

PF2-R2

Relay

715900824

$18.63

PF3

Fuse Holder

278001325

$8.31

PF3

Female Terminal

710000113

$5.85

PF3-F2

Fuse

710001613

$8.31

PF4

Fuse Holder

278001325

$8.31

PF4

Female Terminal

710000357

$5.85

PF4-F21

Fuse

710001613

$8.31

PF6..

Fuse Holder

278001325

$8.31

PF6..

Female Terminal

710000357

$5.85

PF6-F1

Fuse

710001613

$8.31

PF7..

Fuse Holder

278001987

$12.52

PF7..

Female Terminal

710000113

$5.85

PF7-F1

25 Amp Fuse

278003867

$3.16

PL L

Male Connector, 2 Circuits

278000220

$12.66

PL L

Wire Seal

278001065

$5.85

PL L

Female Terminal

278000223

$2.93

PL R

Male Connector, 2 Circuits

278000220

$12.66

PL R

Wire Seal

278001065

$5.85

PL R

Female Terminal

278000223

$2.93

POST1-

Open Barrel Terminal

278001392

$4.00

POST1+

Open Barrel Terminal

278001392

$4.00

PPS

Housing

515177151

$4.54

PPS

Lock 6 Positions

710005296

$0.79

PPS

Seal

710001233

$2.93

PPS

Terminal

710001229

$2.93

R AC W10

Insulated Sheath

278001007

$3.12

R AC W10

Female Terminal | DS 650 X

278001009

$2.93

R AC W11

Insulated Sheath

278001007

$3.12

R AC W11

Female Terminal | DS 650 X

278001009

$2.93

R AC W4

Insulated Sheath

278001007

$3.12

R AC W4

Female Terminal | DS 650 X

278001009

$2.93

R AC W5

Insulated Sheath

278001007

$3.12

R AC W5

Female Terminal | DS 650 X

278001009

$2.93

R AC W6

Insulated Sheath

278001007

$3.12

R AC W6

Female Terminal | DS 650 X

278001009

$2.93

R AC W7

Insulated Sheath

278001007

$3.12

R AC W7

Female Terminal | DS 650 X

278001009

$2.93

R AC W8

Insulated Sheath

278001007

$3.12

R AC W8

Female Terminal | DS 650 X

278001009

$2.93

R AC W9

Insulated Sheath

278001007

$3.12

R AC W9

Female Terminal | DS 650 X

278001009

$2.93

R-1

Resistor

710006155

$2.24

R-2

Resistor

710005179

$2.24

R-36

Resistor

710007285

$2.24

SB

Housing

710002177

$3.12

SB

Lock

710002043

$0.81

SB

Seal

278001482

$2.93

SB

Female Terminal

710001134

$5.85

SS

Female Housing, 2 Circuits

515177192

$7.25

SS

Lock

710001152

$4.00

SS

Seal Wire

710001153

$2.06

SS

Female Terminal

710001164

$6.79

TRL M 10P

Housing

710001952

$10.12

TRL M 10P

Lock

710006361

$0.73

TRL M 10P

Seal

710001233

$2.93

TRL M 10P

Terminal

710001224

$2.93

WSS FL

Connector 2 Pins

710005669

$2.24

WSS FL

Seal

710005689

$2.09

WSS FL

Female Terminal 18-20 AWG

515178348

$1.57

WSS FR

Connector 2 Pins

710005669

$2.24

WSS FR

Seal

710005689

$2.09

WSS FR

Female Terminal 18-20 AWG

515178348

$1.57

WSS REAR M

Housing

515177201

$7.33

WSS REAR M

Lock

710006398

$0.73

WSS REAR M

Seal

710001233

$2.93

WSS REAR M

Terminal

710001224

$2.93

YAW

Housing

710003730

$13.75

YAW

Wire Seal

710006230

$1.49

YAW

Female Terminal

710003862

$2.31

PF1 T LABEL

Fuses Decals

710008909

$9.40

Can-Am CE - Traxter PRO HD10 - XU - 8VRN - Tundra Green - 64" Width, 2024 Electric - Main Harness - 710008780 Diagram

Main Wiring Harness

Housing

Terminal

Female Terminal

Wire Seal

Terminal

Wire Seal

Female Terminal

RH Connector Cover

Housing

Plug

Wire Seal

Terminal

Housing

Female Terminal

Cover, 48 positions

Female Terminal Housing, 48 Circuits

Plug

Plug

Female Terminal

Terminal

Female Terminal

Female Housing, 2 Circuits

Lock

Wire Seal

Female Terminal

Female Housing, 2 Circuits

Lock

Wire Seal

Female Terminal

Terminal

Open Barell

Open Barrel

Cap Battery Cable

Male Terminal Housing, 2 Circuits

Wire Seal

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Female Housing 20 Circuits

Sealing Cap

Female Terminal

Female Terminal 22 AWG

Housing

Lock

Wire Seal

Female Terminal

Diode

Housing

Terminal

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Male Housing, 2 Circuits

Female Housing, 2 Circuits

Female Terminal
