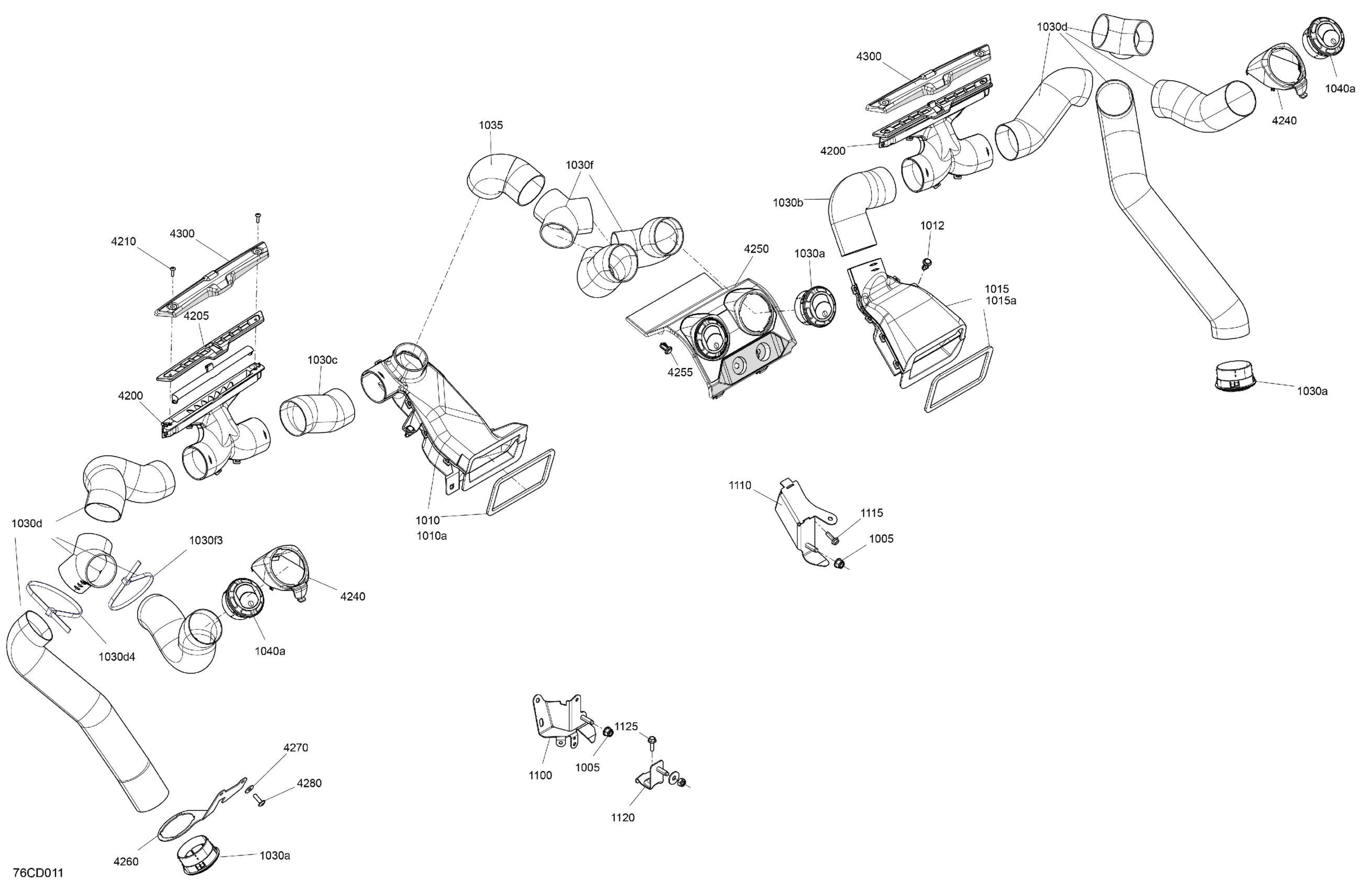

Can-Am CE - Traxter PRO HD10 - XU - 8VRN - Tundra Green - 64" Width, 2024 Enclosure Cab - Air Conditioning System Diagram

Description

Price

1005

Hex. Flange Elastic Nut M8

233281414

$1.31

1010

LH Manifold Ass'y | Includes 1010 to 1010a

705800649

$18.63

1010a

LH Manifold Ass'y | Includes 1010 to 1010a

705800649

$18.63

1012

Tuflok Plastic Rivet

293150230

$1.39

1015

RH Manifold Ass'y | Includes 1015 to 1015a

705800650

$18.63

1015a

RH Manifold Ass'y | Includes 1015 to 1015a

705800650

$18.63

1030a

Grille Scoop

705800436

$22.36

1030b

Duct Ventilation Kit

705800706

$9.45

1030c

Duct Ventilation Kit

705800706

$9.45

1030d

Duct Ventilation Kit

705800842

$63.40

1030d4

Anchorage Tie Wrap

293750094

$0.93

1030f

Ventilation Duct Kit

705800707

$67.13

1030f3

Anchorage Tie Wrap

293750094

$0.93

1035

Adaptor

705800690

$25.34

1040a

Grille Scoop

705800436

$22.36

1100

LH Upper Console Support

705801110

Unavailable

1110

RH Upper Console Support

705801112

$58.18

1115

Hex. Flange Screw M6 X 20

207662044

$1.91

1120

Lower Console Support

705801148

Unavailable

1125

Hex. Flange Screw M6 X 20

207662044

$1.91

4200

Central Adapter

705800501

$24.60

4205

Front Ventilation Grille

705800425

$10.85

4210

Torx-Truss Pt K40 X 16

250000759

$2.00

4240

Side Grille Support

705800426

$4.81

4250

Central Grille Support Ass'y

715007124

$33.55

4255

Tuflok Plastic Rivet

293150230

$1.39

4260

LH Lower Grille Support

705801099

$20.12

4270

Stainless Steel Flat Washer

234062670

$2.00

4280

Torx Screw M6 X 20

250000722

$1.54

4300

Guard

705800849

$17.88
