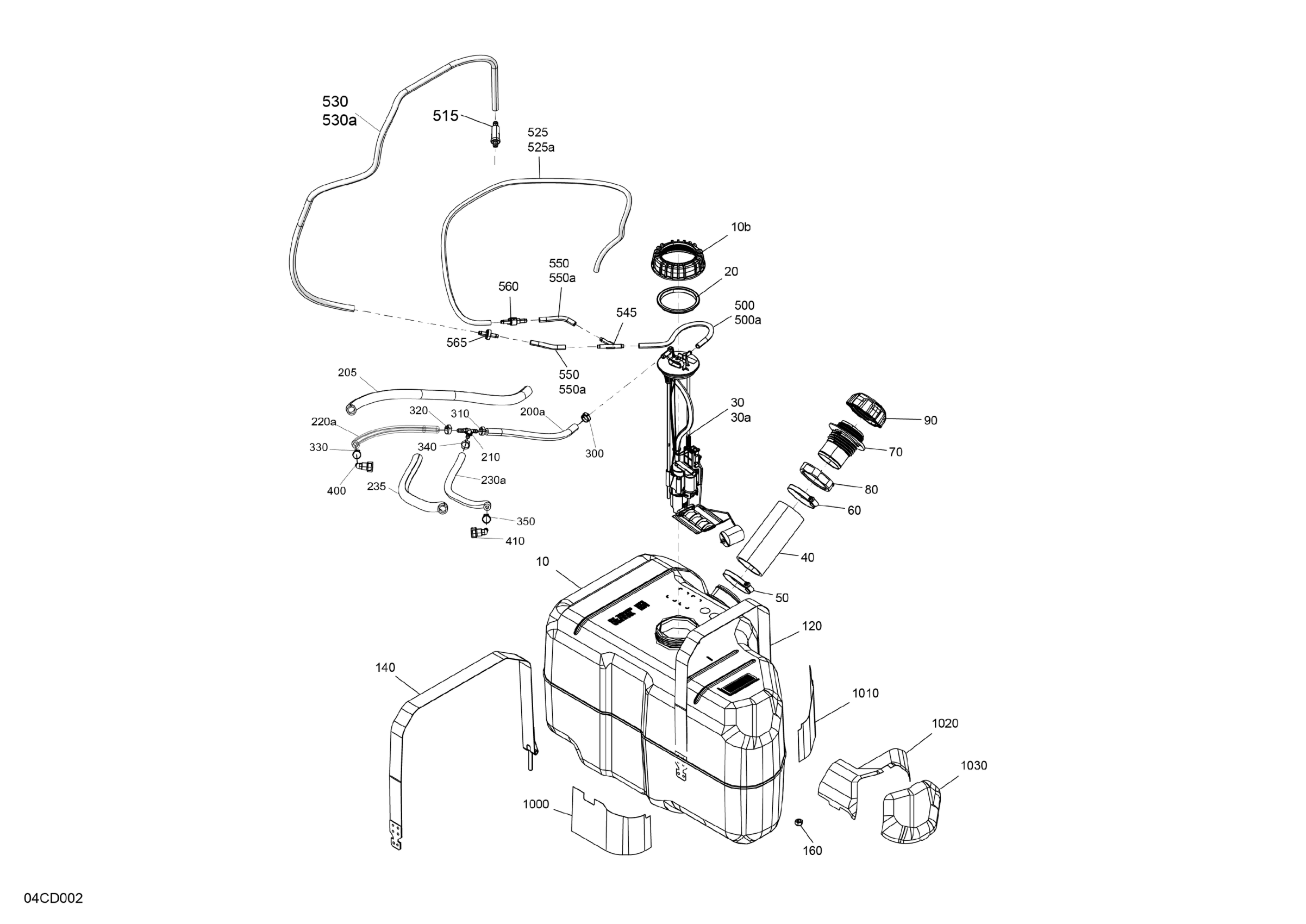

Can-Am CE - Traxter PRO HD10 - XU - 8VRN - Tundra Green - 64" Width, 2024 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001432

$240.27

10b

Fuel Pump Module Nut

709000328

$12.43

20

Seal

709000208

$12.16

30

Fuel Pump | Includes 30 to 30a

709001189

$323.94

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$68.63

40

Hose Filler Neck

709000595

$28.33

50

Norma Clamp

293650081

$11.33

60

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Fuel Filler Neck Nut

293600206

$11.51

90

Fuel Cap

709000868

$29.07

120

Retaining Strap

709001291

$35.79

140

Retaining Strap

709001292

$35.79

160

Hex. Flange Elastic Nut M8

233281414

$1.31

200a

Hose 7,94 MM ID 3000MM Long

219704475

$81.31

205

Tubing 16 Mm 1000Mm Long

219704408

$7.15

210

Y Fitting

709001329

$9.85

220a

Hose 7,94 MM ID 3000MM Long

219704475

$81.31

230a

Hose 7,94 MM ID 3000MM Long

219704475

$81.31

235

Tubing 16 Mm 1000Mm Long

219704408

$7.15

300

Crimp Clamp

293650053

$2.78

310

Crimp Clamp

293650053

$2.78

320

Crimp Clamp

293650053

$2.78

330

Crimp Clamp

293650053

$2.78

340

Crimp Clamp

293650053

$2.78

350

Crimp Clamp

293650053

$2.78

400

Quick Disconnect

275500921

$14.48

410

Quick Disconnect

275500921

$14.48

500

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

500a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

515

Filter

709001120

$7.48

525

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

525a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

530

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

530a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

545

Y-Fitting

293710059

$9.40

550

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

550a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

560

Check Valve

513033469

$29.07

565

Check Valve

275500398

$9.84

1000

Heat Shield

707002670

$30.57

1010

Heat Shield

707002671

$30.57

1020

Heat Shield

707002673

$30.57

1030

Heat Shield

707002719

$29.82
