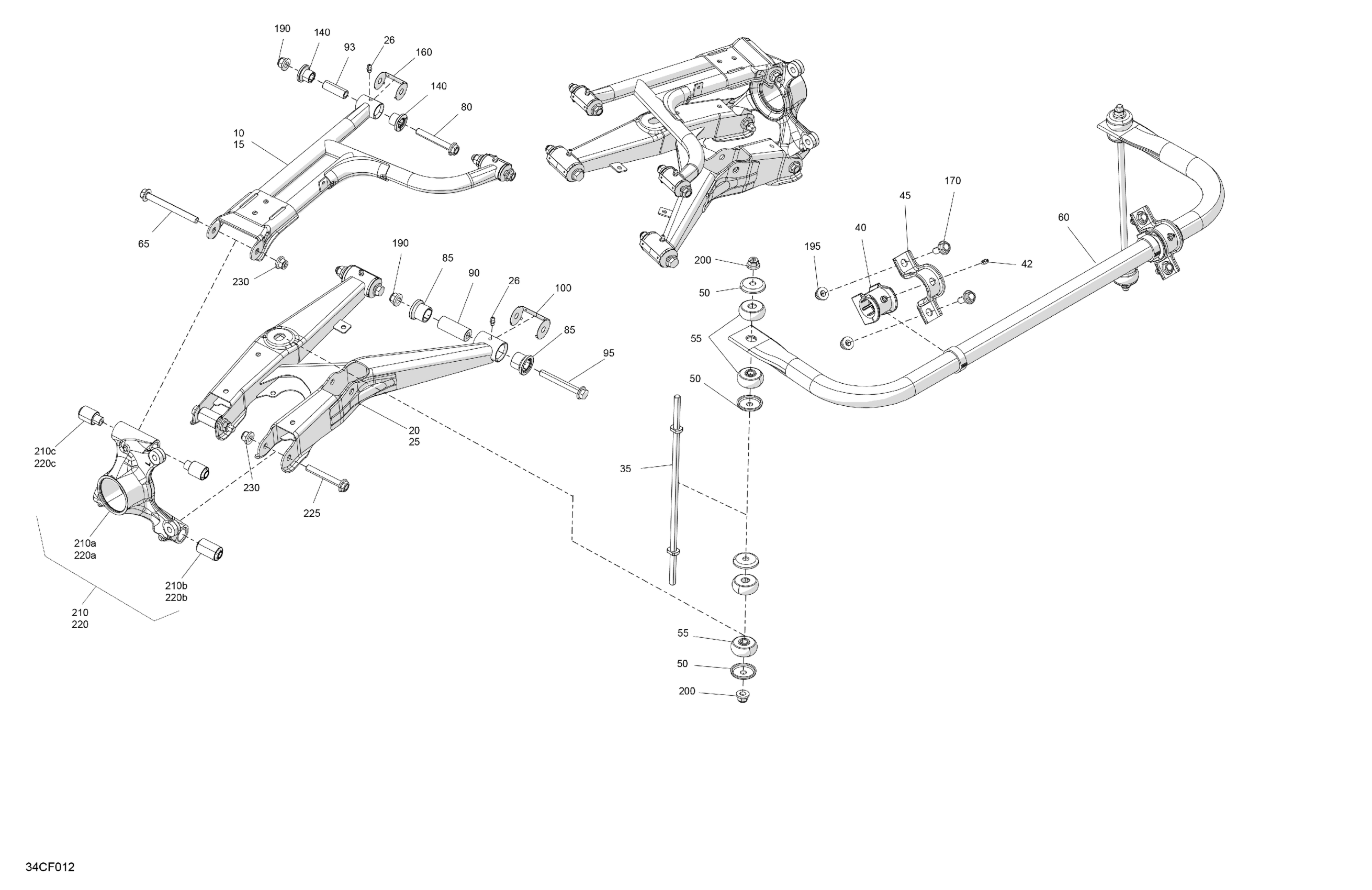

Can-Am CE - Traxter MAX - HD9 - DPS - 8RTM - Compass Green - 62" Width, 2026 Suspension - Rear Components Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm

706004308

$190.99

15

Deep Black, RH Upper Suspension Arm

706004309

$190.99

20

Deep Black, LH Lower Suspension Arm

706003067

$164.49

25

Deep Black, RH Lower Suspension Arm

706003068

$190.99

26

Grease Fitting

408200700

$3.49

35

Torsion Bar Link

706001898

$19.99

40

Stabilizer Bar Bushing

706004301

$8.04

42

Grease Fitting

408200700

$3.49

45

Clamp

706002592

$6.67

50

Stamped Washer

706005431

$12.99

55

Linkage Bushing

706002028

$7.34

60

Stabilizer Bar Ass'y

715008414

$95.49

65

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

80

Hex. Flange Screw M10 X 70

207607046

$2.96

85

Deep Black, RH Rear Suspension Arm

706206653

$9.10

90

Sleeve

706201590

$11.99

93

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

95

Hex Flange Screw M10 X 80

207608046

$6.69

100

Wear Plate

706201660

$0.95

140

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

160

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

170

Hex. Flange Screw M10 X 25

207602544

$1.69

190

Hex. Flange Elastic Nut M10

233201436

$2.11

195

Hex. Flange Elastic Nut M10

233201436

$2.11

200

Hex. Flange Elastic Nut M10

233201436

$2.11

210

LH Rear Knuckle Ass'y

715010183

$126.99

210a

Not Available As Spare Parts

XXX

Unavailable

210b

Suspension Arm Bushing

706006099

$3.91

210c

Suspension Arm Bushing

706006100

$3.91

220

RH Rear Knuckle Ass'y

715010184

$126.99

220a

Not Available As Spare Parts

XXX

Unavailable

220b

Suspension Arm Bushing

706006099

$3.91

220c

Suspension Arm Bushing

706006100

$3.91

225

Hex. Screw M10 X 70, Scotch Grip

207507046

$7.41

230

Hex. Flange Elastic Nut M10

233201436

$2.11
