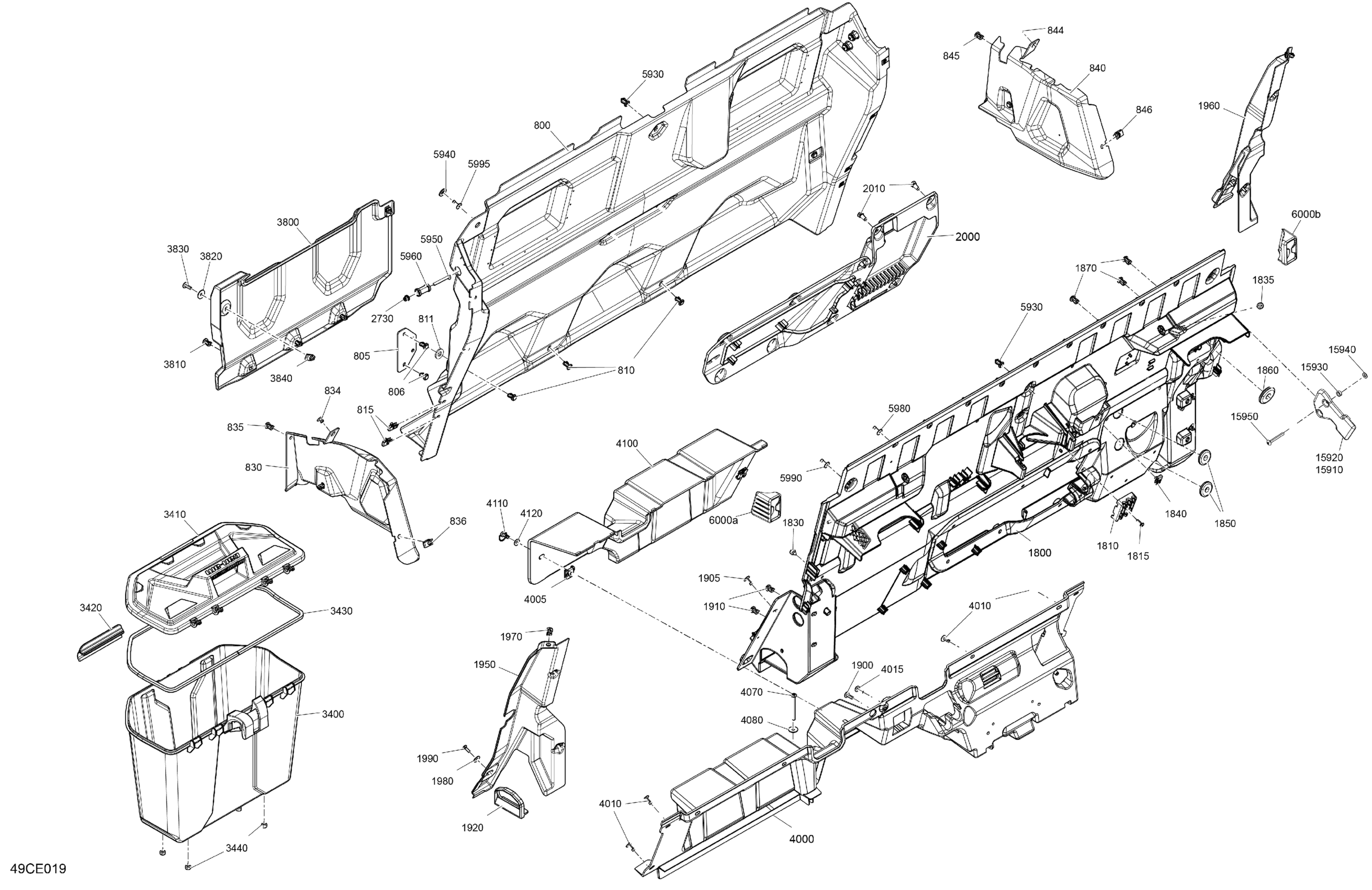

Can-Am CE - Traxter Max - HD10 - XU - 8NSN - Dusty Navy - 64" Width - 2025 Cab Interior - Back Wall Diagram

#

Description
Price

800

Middle Deflector

707900997

Unavailable

805

Plate

707900469

$28.43

806

Tuflok Plastic Rivet

293150230

$1.21

810

Tuflok Plastic Rivet

293150230

$1.21

811

Washer

503192494

$3.11

815

Panel Nut M6 X 1.0

250100198

$1.73

830

LH Lower Panel

707900994

$78.43

834

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

835

Tuflok Plastic Rivet

293150230

$1.21

836

Panel Nut M6 X 1.0

250100198

$1.73

840

RH Lower Panel

707900995

$78.43

844

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

845

Tuflok Plastic Rivet

293150230

$1.21

846

Panel Nut M6 X 1.0

250100198

$1.73

1800

Rear Upper Cab Panel

707901101

$396.89

1810

Hose Support

707900788

$0.86

1815

Torx Screw K50 X 16

250000720

$1.39

1830

Rubber Bumper

293830005

$5.33

1835

Rubber Bumper

293830005

$5.33

1840

Panel Nut M6 X 1.0

250100198

$1.73

1850

Grommet

293720119

$4.98

1860

Grommet

293720119

$4.98

1870

Tuflok Plastic Rivet

293150230

$1.21

1900

Torx Screw M6 X 20

250000722

$1.34

1905

Black, Ornit Rivet 3/16 X ,800

293150306

$1.08

1910

Tuflok Plastic Rivet

293150230

$1.21

1920

Panel Trim

707900774

$4.28

1950

LH Upper Deflector

707900766

$16.89

1960

RH Upper Deflector

707900767

$16.89

1970

Tuflok Plastic Rivet

293150230

$1.21

1980

Stainless Steel Flat Washer

234062670

$1.74

1990

Torx Screw K50 X 16

250000720

$1.39

2000

Rear Access Cover

707900742

$78.43

2010

Torx Screw M6 X 20

250000712

$1.74

2730

Insert Half Hex Body M6 x 1.0

250100199

$2.54

3400

Storage Box

715003314

$109.24

3410

Storage Box

715003314

$109.24

3420

Clip | Outlander Max

269501945

$15.19

3430

Neoprene Seal

293250453

$14.92

3440

Rubber Bumper

293830005

$5.33

3800

Rear Panel

707900996

$92.28

3810

Tuflok Plastic Rivet

293150230

$1.21

3820

Flat Washer M6.6 X 22

250200162

$1.91

3830

Torx Screw M6 X 20

250000722

$1.34

3840

Panel Nut M6 X 1.0

250100198

$1.73

4000

Lower Rear Cab Panel

707901242

$207.66

4005

Quarter Turn Nut

705002651

$3.84

4010

Black, Ornit Rivet 3/16 X ,800

293150306

$1.08

4015

Torx Screw M6 X 20

250000722

$1.34

4070

Torx Screw M6 X 70

250000954

$1.56

4080

Flat Washer M6.6 X 22

250200162

$1.91

4100

Battery Cover

707900743

$87.66

4110

Quarter Turn Screw

705002649

$12.57

4120

Washer

708400286

$4.02

6000a

LH Cover

707901045

$3.68

6000b

RH Cover

707901046

$3.68

5930

Tuflok Plastic Rivet

293150230

$1.21

5940

Flat Washer 8 mm, Nylon

292001663

$1.18

5950

Torx Truss M6 X 50

250000868

$1.74

5960

Spacer

707900470

$2.31

5980

Black, Ornit Rivet 3/16 X ,800

293150306

$1.08

5990

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

5995

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

15910

LH Rear Guard

707900815

$16.12

15920

RH Rear Guard

707900816

$16.12

15930

Bushing

708300737

$4.62

15940

Flat Washer

224061121

$0.44

15950

Torx Truss Screw M6 X 50

250000749

$3.11
