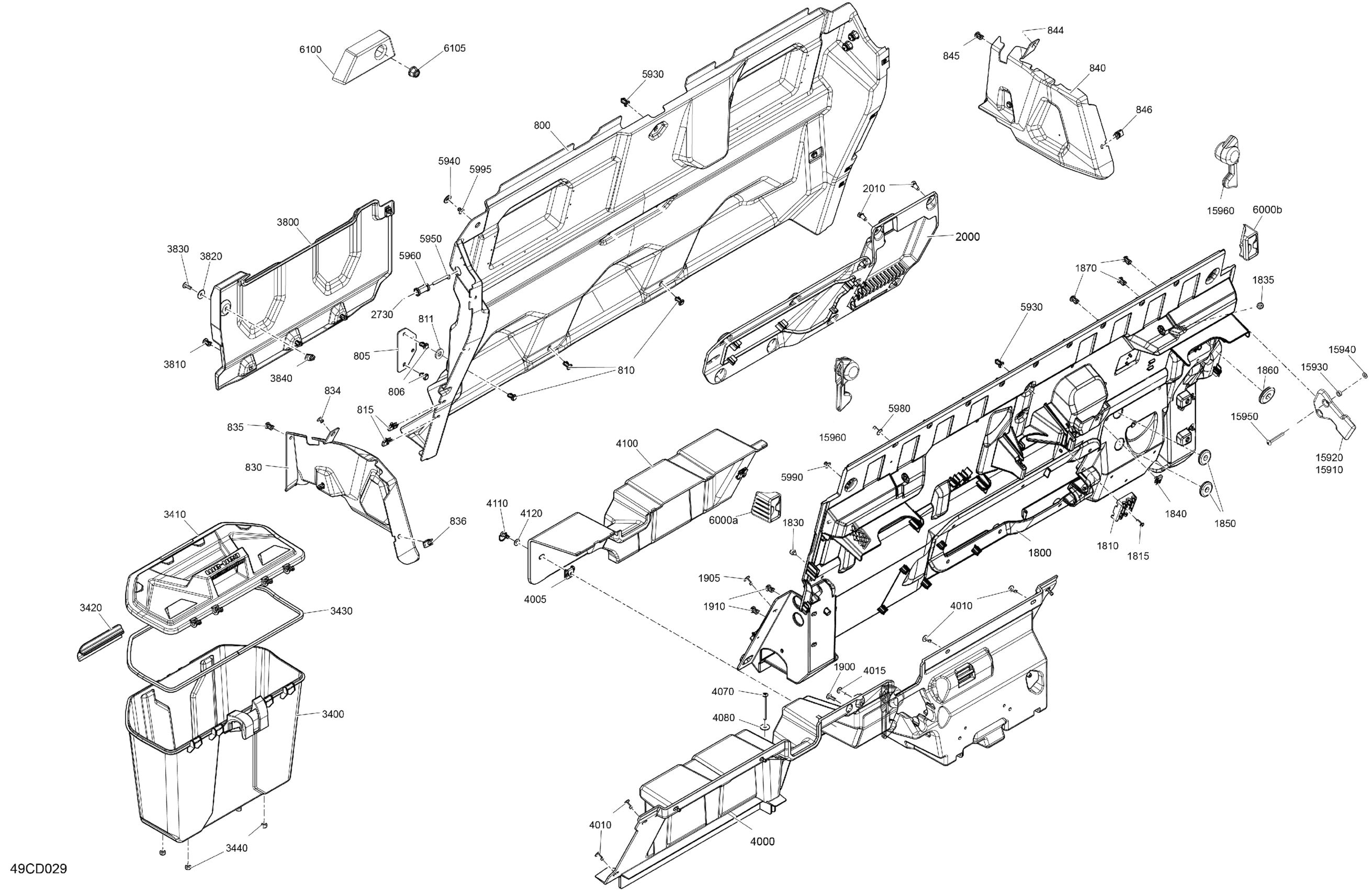

Can-Am CE - Traxter MAX HD10 - XU - 8NRN - Asphalt Grey - 64" Width, 2024 Cab Interior - Back Wall Diagram

#

Description
Price

800

Central Seperation Panel Ass'y

715008421

$82.06

805

Plate

707900469

$27.58

806

Tuflok Plastic Rivet

293150230

$1.39

810

Tuflok Plastic Rivet

293150230

$1.39

811

Washer

503192494

$3.01

815

Panel Nut M6 X 1.0

250100198

$1.99

830

LH Lower Panel

707900994

$73.85

834

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

835

Tuflok Plastic Rivet

293150230

$1.39

836

Panel Nut M6 X 1.0

250100198

$1.99

840

RH Lower Panel

707900995

$73.85

844

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

845

Tuflok Plastic Rivet

293150230

$1.39

846

Panel Nut M6 X 1.0

250100198

$1.99

1800

Rear Upper Cab Panel Ass'y | Includes 1800 to 1800f

715008410

$182.81

1810

Hose Support

707900788

$0.82

1815

Torx Screw K50 X 16

250000720

$1.60

1830

Rubber Bumper

293830005

$6.12

1835

Rubber Bumper

293830005

$6.12

1840

Panel Nut M6 X 1.0

250100198

$1.99

1850

Grommet

293720119

$4.04

1860

Grommet

293720119

$4.04

1870

Tuflok Plastic Rivet

293150230

$1.39

1900

Torx Screw M6 X 20

250000722

$1.54

1905

Pop Rivet 3/16"

293150100

$1.04

1910

Tuflok Plastic Rivet

293150230

$1.39

2000

Rear Access Cover

707900742

$75.34

2010

Torx Screw M6 X 20

250000712

$2.00

2730

Insert Half Hex Body M6 x 1.0

250100199

$2.91

3400

Storage Box

715003314

$101.17

3410

Upper Dashboard Ass'y

715008990

$156.69

3420

Clip | Outlander Max

269501945

$14.90

3430

Neoprene Seal

293250453

$17.13

3440

Rubber Bumper

293830005

$6.12

3800

Rear Panel

707900996

$88.78

3810

Tuflok Plastic Rivet

293150230

$1.39

3820

Flat Washer M6.6 X 22

250200162

$2.19

3830

Torx Screw M6 X 20

250000722

$1.54

3840

Panel Nut M6 X 1.0

250100198

$1.99

4000

Rear Lower Cab Panel

707901074

$196.99

4005

Quarter Turn Nut

705002651

$4.40

4010

Pop Rivet 3/16"

293150100

$1.04

4015

Torx Screw M6 X 20

250000722

$1.54

4070

Torx Screw M6 X 70

250000954

$1.79

4080

Flat Washer M6.6 X 22

250200162

$2.19

4100

Battery Cover

707900743

$81.31

4110

Quarter Turn Screw

705002649

$14.43

4120

Washer

708400286

$3.90

6000a

LH Cover

707901045

$3.18

6000b

RH Cover

707901046

$3.18

6100

Cover

707901209

$17.88

6105

Hex. Elastic Flange Nut M8

233281416

$1.43

5930

Tuflok Plastic Rivet

293150230

$1.39

5940

Flat Washer 8 mm, Nylon

292001663

$1.36

5950

Torx Truss M6 X 50

250000868

$2.00

5960

Spacer

707900470

$2.06

5980

Pop Rivet 3/16"

293150100

$1.04

5990

Pop Rivet 3/16"

293150103

$0.52

5995

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

15910

LH Rear Guard

707900815

$15.64

15920

RH Rear Guard

707900816

$15.64

15930

Bushing

708300737

$4.43

15940

Flat Washer

224061121

$0.51

15950

Torx Truss Screw M6 X 50

250000749

$3.01

15960

Guard CTRL

707900856

$14.76
