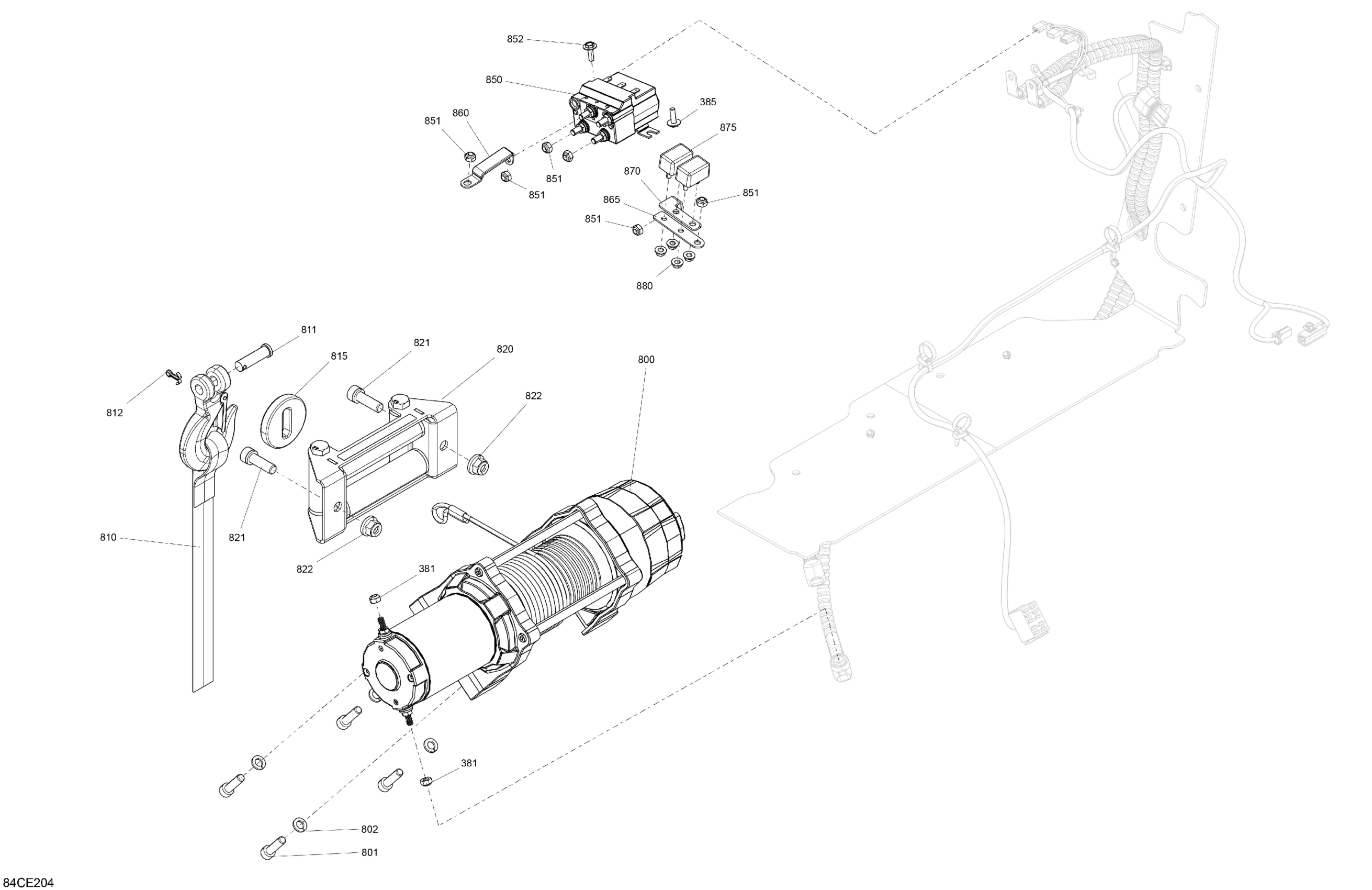

Can-Am CE - Traxter - HD9 - XU - 6NSN - Dusty Navy - 64" Width - 2025 Electric - Winch Diagram

Description

Price

381

Elastic Stop Nut M6, Brass

232561200

$4.23

385

Screw PT Type K-50 X 16

250000959

$2.11

800

Electric Winch | Includes 800 to 800a

710006993

$208.49

800a

Winch Decal | Not Shown

704908221

Unavailable

801

Socket Head Screw M8 X 30

205083044

$1.15

802

Lock Washer 8 mm

234181401

$0.92

810

Winch Hook Kit

705014949

$24.99

811

Winch Hook Kit

705014949

$24.99

812

Winch Hook Kit

705014949

$24.99

815

Stopper

710007028

$3.82

820

Fairlead Roller

710007082

$59.49

821

Socket Screw M10 x 30 | XT

205003044

$3.17

822

Hex. Flange Elastic Nut M10

233201436

$2.11

850

Solenoid

710006991

$62.49

851

Elastic Stop Nut M6, Brass

232561200

$4.23

852

Torx Screw K50 X 16

250000720

$1.69

860

Power Bar

710004772

$12.16

865

Copper Busbar

710006401

$12.16

870

Power Bar

710004873

$12.16

875

Circuit Breaker 50 Amp

710007039

$19.49

880

Flange Elastic Nut M5

233251434

$2.00
