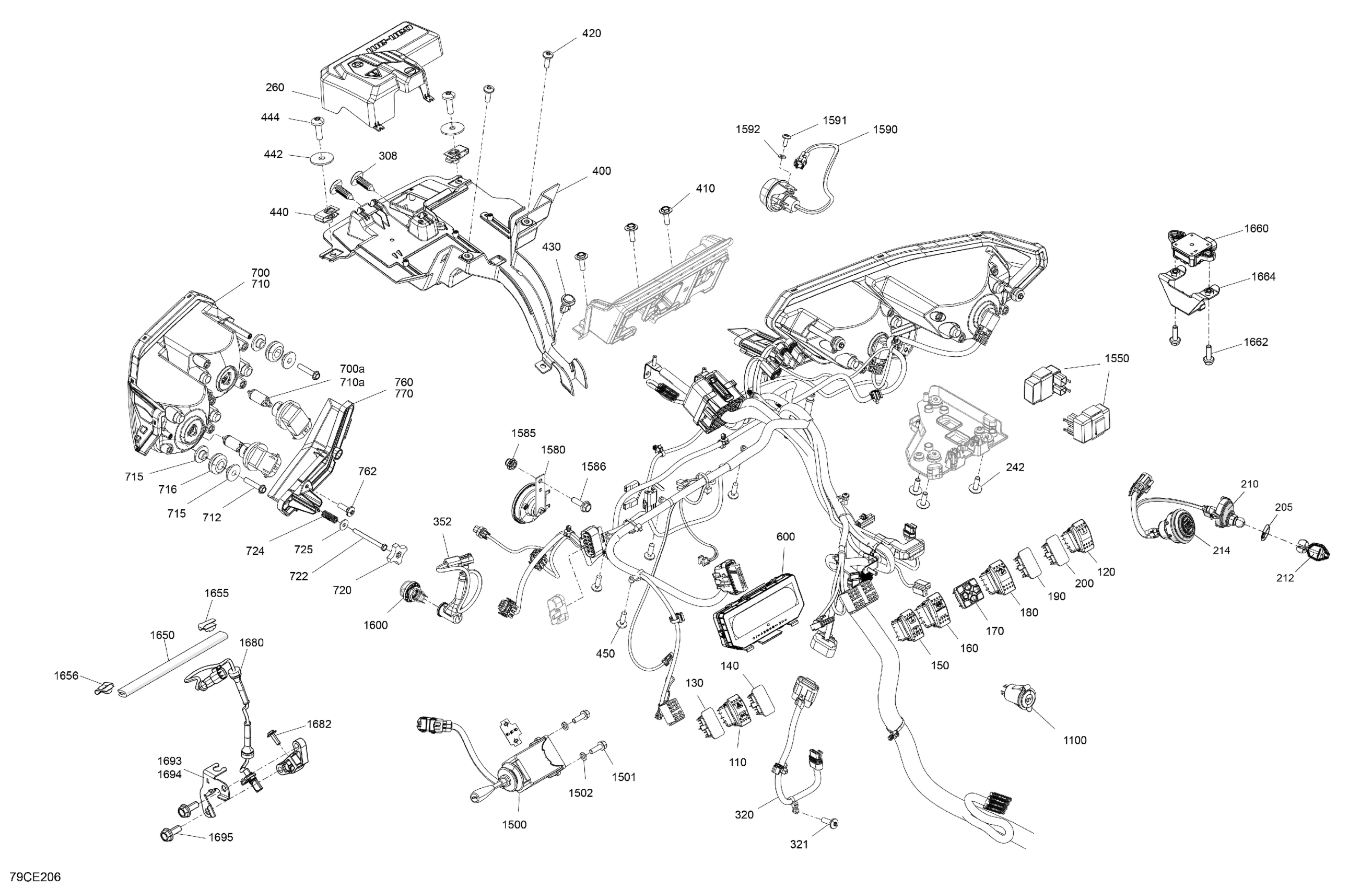

Can-Am CE - Traxter - HD9 - XU - 6NSN - Dusty Navy - 64" Width - 2025 Electric - Front Section Diagram

Hazard Lights Switch

710006107

$18.43

Switch Winch

710002052

$28.92

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Switch 2X4

710005489

$32.28

Differential Lock Switch

710005470

$46.12

Multifonction Switch

710006650

$87.66

Switch HDC

710006553

$23.05

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Specialized Nut

278004274

$2.72

Terminal DESS One Wire

515179305

$60.42

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

Start-Stop Button | Not Shown

710005213

$59.97

Screw PT Type K-50 X 16

250000959

$1.74

Junction Block Cover

710006707

$6.45

Black, Dart

293730006

$0.81

Throttle Pedal Harness

710006837

$226.12

Torx Screw K50 X 16

250000720

$1.39

Position Light Harness

710005676

$13.52

Wiring Harness Support

710006649

$22.28

Screw PT Type K-50 X 16

250000959

$1.74

Torx Screw K50 X 16

250000720

$1.39

Tuflok Plastic Rivet

293150230

$1.21

Panel Nut M6 X 1.0

250100198

$1.73

Washer M6

250200029

$1.83

Torx Screw M6 X 20

250000712

$1.74

Screw PT Type K-50 X 16

250000959

$1.74

MID Multifunction Gauge

710008295

$355.35

LH Headlamp | Includes 700 to 700a

710008313

$203.05

Halogen Bulb H8 12V 35W

219800149

$41.51

RH Headlamp | Includes 710 to 710a

710008314

$203.05

Halogen Bulb H8 12V 35W

219800149

$41.51

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

Shoulder Bushing

710004749

$2.75

Overmolded Grommet

293720130

$4.38

Handle

572106600

$9.31

Hex. Screw K40 X 45

250000718

$1.74

Spring

517168600

$6.91

Flat Washer 4 mm, Stainless

234042600

$0.92

Deep Black, LH Front Headlight Trim

710008973

$19.20

Screw PT Type K-50 X 16

250000959

$1.74

Deep Black, RH Front Headlight Trim

710008974

$19.20

12V Power Outlet

710005374

$27.27

Turn Signal | Europe

710001721

$198.43

Hex. Forming Screw M5 X 16

210251650

$0.92

Lock Washer 5 mm | Europe

234151401

$0.46

Flasher Unit

710003239

$78.43

Horn

710004791

$37.66

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Hex. Flange Screw M6 X 20

207662054

$0.83

Flasher | Europe

710002964

$35.14

Torx Truss Screw M6 X 16

250000721

$1.39

Flat Washer 6 mm

234061410

$1.04

Day Light | Europe

710001726

$36.89

Was 271000110 Protection Trim

219704353

$15.03

Clip Bracket Connector (edge)

409210100

$2.00

Clip

710001038

$5.11

Yaw Rate Sensor

710005658

$166.12

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Yaw Sensor Support

710006501

$32.28

Speed Sensor

710006981

$78.43

Screw PT Type K-50 X 16

250000959

$1.74

ABS Sensor Support

710008185

$8.83

ABS Sensor Support

710008186

$8.83

Hex Screw Washer Head M8 X 20

207582054

$2.61
