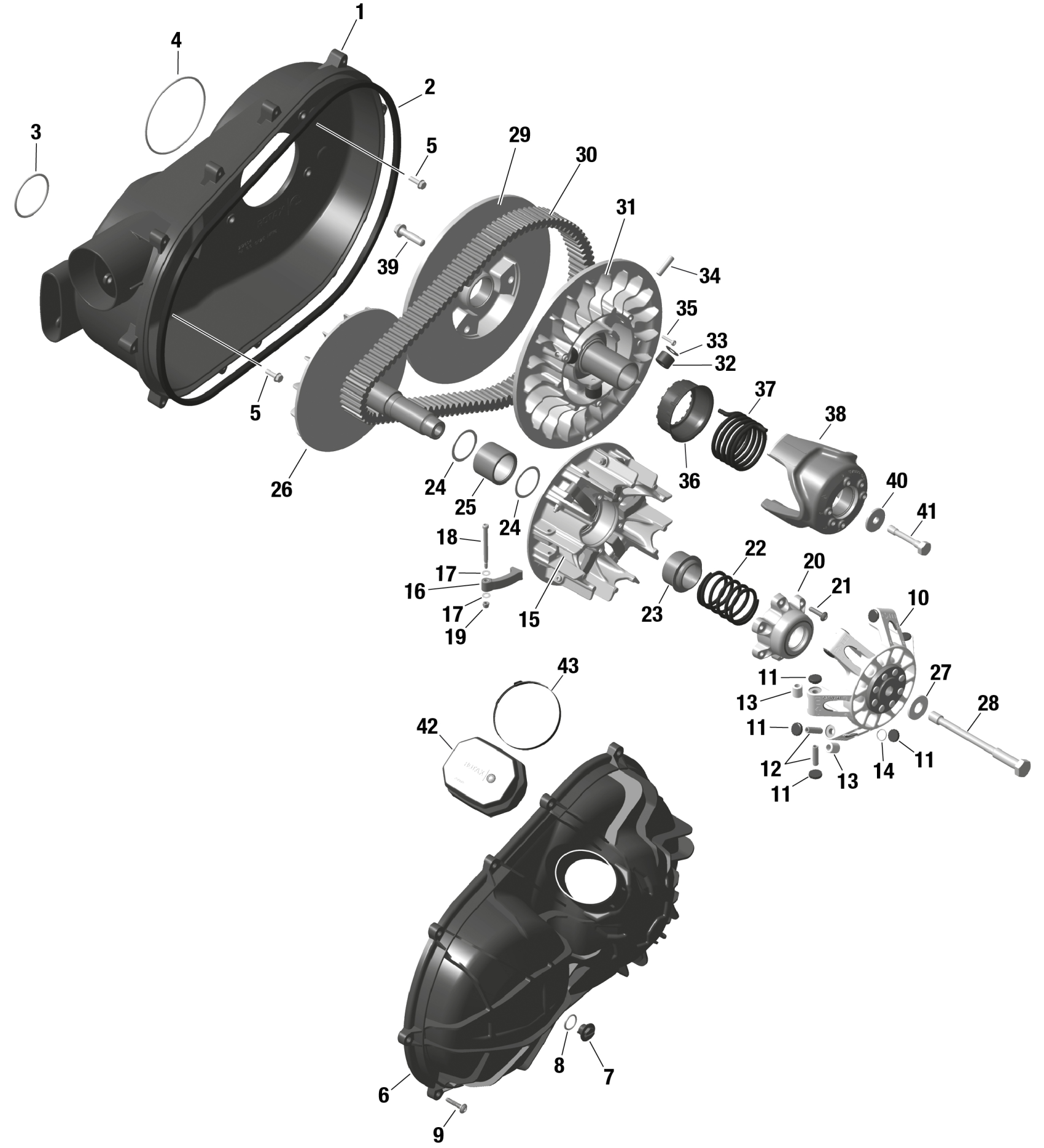

Can-Am CE - Traxter HD9 - XU - 6NRN - Tundra Green - 64" Width, 2024 ROTAX - CVT Diagram

#

Description
Price

1

CVT Air Guide

420212604

$224.99

2

Gasket

420450400

$31.99

3

O-Ring | Included in gasket kit

420430409

$5.29

4

O-Ring

420450431

$5.29

5

Hex.Screw M6 X 20

420441311

$5.18

6

Variator Cover

420212503

$184.99

7

Cap

420441820

$11.63

8

O-Ring

420250052

$10.43

9

Torx Screw 6X30

420441575

$3.06

10

Governor Cup Ass'y

420280746

$194.99

11

Slider Shoe Set

420281296

$65.49

12

Roller Axle

417223257

$6.99

13

Roller

417223767

$11.59

14

O-Ring

420230456

$2.09

15

Outer Half Ass'y

420280609

$379.99

16

Lever Set | Includes 16-19

420248688

$206.49

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Bearing Cover Ass'y

420280615

$65.49

21

Torx Flange Screw M6 X 25

420841549

$2.00

22

Compression Spring

420638119

$35.99

23

Spring Seat

420427210

$37.99

24

Washer

420427220

$4.86

25

Needle Roller Bearing With Sleeves

420832351

$49.99

26

Inner Half Ass'y

420280596

$339.99

27

Washer

420245690

$4.86

28

Hexagonal Screw M14X 165

420841161

$29.49

29

Sliding Pulley Ass'y

420280636

$349.99

30

Drive Belt

422280656

$174.99

31

Outer Half Ass'y

420280628

$369.99

32

Pulley Roller

417127016

$24.49

33

Thrust Washer

420227946

$2.51

34

Lock Washer 8 mm

250200009

$2.11

34

Bearing Pin

420629192

$16.34

35

Torx Screw M4 X 20

420841531

$2.09

36

Spring Support

420427805

$11.17

37

Compression Spring

420638124

$37.99

38

Cam

420280758

$116.49

39

Torx Flange Screw M10 X 40

420841711

$2.09

40

Collar Washer

420427243

$16.40

41

Hexagonal Screw M10X 61

420441990

$19.49

42

Closure Cap

420201940

$22.49

43

Ear Clamp 87.3-90.5MM

420251485

$8.11
