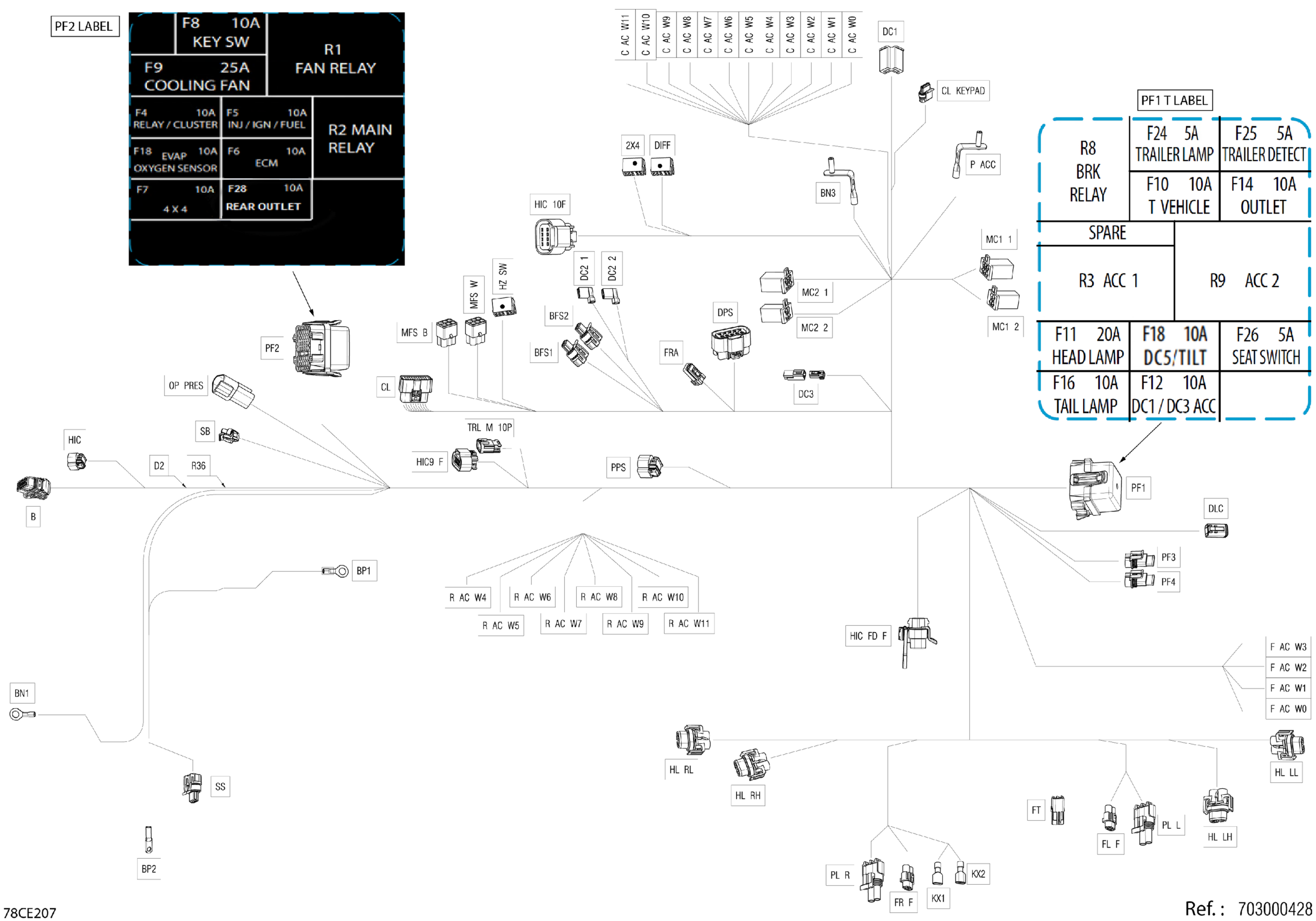

08- Electric - Main Harness - 710008777
Can-Am CE - Traxter - HD9 - BASE - 6WSN - Compass Green - 62" Width - 2025 08- Electric - Main Harness - 710008777 Diagram
#
300
Main Wiring Harness
710008777
Unavailable
2X4
Housing
710002000
Unavailable
2X4
Terminal
710003047
Unavailable
2X4
Female Terminal
710005491
Unavailable
B
Cover, 48 positions
710001591
Unavailable
B
Female Terminal Housing, 48 Circuits
710001588
Unavailable
B
Plug
710001592
Unavailable
B
Plug
710001593
Unavailable
B
Female Terminal
710001727
Unavailable
B
Terminal
710001728
Unavailable
B
Female Terminal
710001589
Unavailable
BFS1
Female Housing, 2 Circuits
515177192
Unavailable
BFS1
Lock
710001152
Unavailable
BFS1
Wire Seal
710001163
Unavailable
BFS1
Female Terminal
710001164
Unavailable
BFS2
Female Housing, 2 Circuits
515177192
Unavailable
BFS2
Lock
710001152
Unavailable
BFS2
Wire Seal
710001163
Unavailable
BFS2
Female Terminal
710001164
Unavailable
BN1
Terminal
710000913
Unavailable
BN3
Open Barell
710006801
Unavailable
BP1
Open Barrel
278000992
Unavailable
BP2
Cap Battery Cable
710007033
Unavailable
C AC W0
Insulated Sheath
278001008
Unavailable
C AC W0
Male Terminal
278000230
Unavailable
C AC W1
Insulated Sheath
278001008
Unavailable
C AC W1
Male Terminal
278000230
Unavailable
C AC W11
Insulated Sheath
278001008
Unavailable
C AC W11
Male Terminal
278000230
Unavailable
C AC W2
Insulated Sheath
278001008
Unavailable
C AC W2
Male Terminal
278000230
Unavailable
C AC W3
Insulated Sheath
278001008
Unavailable
C AC W3
Male Terminal
278000230
Unavailable
C AC W4
Insulated Sheath
278001008
Unavailable
C AC W4
Male Terminal
278000230
Unavailable
C AC W5
Insulated Sheath
278001008
Unavailable
C AC W5
Male Terminal
278000230
Unavailable
C AC W6
Insulated Sheath
278001008
Unavailable
C AC W6
Male Terminal
278000230
Unavailable
C AC W7
Insulated Sheath
278001008
Unavailable
C AC W7
Male Terminal
278000230
Unavailable
C AC W8
Insulated Sheath
278001008
Unavailable
C AC W8
Male Terminal
278000230
Unavailable
C AC W9
Insulated Sheath
278001008
Unavailable
C AC W9
Male Terminal
278000230
Unavailable
C AC-W10
Insulated Sheath
278001008
Unavailable
C AC-W10
Male Terminal
278000230
Unavailable
CL
Female Housing 20 Circuits
278002858
Unavailable
CL
Sealing Cap
278002860
Unavailable
CL
Female Terminal
515178018
Unavailable
CL
Female Terminal 22 AWG
515178349
Unavailable
CL KEYPAD
Housing
710001161
Unavailable
CL KEYPAD
Lock
710001162
Unavailable
CL KEYPAD
Wire Seal
710001163
Unavailable
CL KEYPAD
Female Terminal
710001164
Unavailable
D2
Diode
409012700
Unavailable
DC1
Housing
710005373
Unavailable
DC1
Terminal
710005518
Unavailable
DC2 1
Female Terminal
409010300
Unavailable
DC2 2
Female Terminal
409010300
Unavailable
DC3
Female Housing, 2 Circuits
515175658
Unavailable
DC3
Female Terminal
515175231
Unavailable
DC3 CAP
Male Housing, 2 Circuits
710000667
Unavailable
DC5
Female Housing, 2 Circuits
515175658
Unavailable
DC5
Female Terminal
515175231
Unavailable
DC5 CAP
Male Housing, 2 Circuits
710000667
Unavailable
DIFF
Housing
710002000
Unavailable
DIFF
Female Terminal
710005491
Unavailable
DIFF
Terminal
710003047
Unavailable
DLC
Female Housing 6 Circuits
710002706
Unavailable
DLC
Lock
710002705
Unavailable
DLC
Female Terminal
710005438
Unavailable
DLC
Female Terminal
710005439
Unavailable
DPS
Female Housing
710004989
Unavailable
DPS
Lock | PACKARD 15430900
710005098
Unavailable
DPS
Lock
710001222
Unavailable
DPS
Plug
710002075
Unavailable
DPS
Wire Seal
278002186
Unavailable
DPS
Seal
710003153
Unavailable
DPS
Female Terminal
278002187
Unavailable
DPS
Terminal
710001873
Unavailable
F AC W0
Insulated Sheath
278001007
Unavailable
F AC W0
Female Terminal | DS 650 X
278001009
Unavailable
F AC W1
Insulated Sheath
278001007
Unavailable
F AC W1
Female Terminal | DS 650 X
278001009
Unavailable
F AC W2
Insulated Sheath
278001007
Unavailable
F AC W2
Female Terminal | DS 650 X
278001009
Unavailable
F AC W3
Insulated Sheath
278001007
Unavailable
F AC W3
Female Terminal | DS 650 X
278001009
Unavailable
FL F
Wire Seal
710000402
Unavailable
FL F
Female Terminal
409012100
Unavailable
FL-1
Fuse Link 21-30AMP
715002536
Unavailable
FL-2
Fuse Link 41-50AMP
715002538
Unavailable
FR F
Wire Seal
710000402
Unavailable
FR F
Female Terminal
409012100
Unavailable
FRA
Female Housing, 2 Circuits
515175658
Unavailable
FRA
Female Terminal
710003896
Unavailable
FT
Clip
710000992
Unavailable
FT
Female Housing, 2 Circuits
278000217
Unavailable
FT
Wire Seal
278000218
Unavailable
FT
Male Terminal
409004300
Unavailable
HIC
Female Housing, 12 Circuits
710001930
Unavailable
HIC
Lock
710006333
Unavailable
HIC
Lock
710001222
Unavailable
HIC
Cap
710001225
Unavailable
HIC
Seal
710001233
Unavailable
HIC
Seal Wire
710001332
Unavailable
HIC
Terminal
710001229
Unavailable
HIC
Terminal
710001228
Unavailable
HIC FD F
Connector Guard
710007680
Unavailable
HIC FD F
Housing
710001132
Unavailable
HIC FD F
Lock
710001133
Unavailable
HIC FD F
Seal
278001482
Unavailable
HIC FD F
Female Terminal
710001134
Unavailable
HIC 10 F
Housing
710001928
Unavailable
HIC 10 F
Lock
710001222
Unavailable
HIC 10 F
Lock
710006181
Unavailable
HIC 10 F
Seal
710001233
Unavailable
HIC 10 F
Terminal
710001229
Unavailable
HIC9 F
Female Housing, 12 Circuits
710001930
Unavailable
HIC9 F
Lock
710006333
Unavailable
HIC9 F
Lock
710001222
Unavailable
HIC9 F
Cap
710001225
Unavailable
HIC9 F
Seal
710001233
Unavailable
HIC9 F
Seal Wire
710001332
Unavailable
HIC9 F
Terminal
710001229
Unavailable
HIC9 F
Terminal
710001228
Unavailable
HL LH
Housing
710002578
Unavailable
HL LH
Lock
710002584
Unavailable
HL LH
Wire Seal
710001427
Unavailable
HL LH
Female Terminal
278002578
Unavailable
HL LL
Housing
710002578
Unavailable
HL LL
Lock
710002584
Unavailable
HL LL
Wire Seal
710001427
Unavailable
HL LL
Female Terminal
278002578
Unavailable
HL RH
Housing
710002578
Unavailable
HL RH
Lock
710002584
Unavailable
HL RH
Wire Seal
710001427
Unavailable
HL RH
Female Terminal
278002578
Unavailable
HL RL
Housing
710002578
Unavailable
HL RL
Lock
710002584
Unavailable
HL RL
Wire Seal
710001427
Unavailable
HL RL
Female Terminal
278002578
Unavailable
HZ SW
Housing
710002000
Unavailable
HZ SW
Terminal
710003047
Unavailable
HZ SW
Female Terminal
710005491
Unavailable
KX1
Female Terminal
409010700
Unavailable
KX2
Female Terminal
409010700
Unavailable
MC1 1
Female Housing
710004047
Unavailable
MC1 1
Terminal
710002315
Unavailable
MC1 2
Female Housing
710004048
Unavailable
MC1 2
Terminal
710002315
Unavailable
MC2 1
Female Housing
710004047
Unavailable
MC2 1
Terminal
710002315
Unavailable
MC2 2
Female Housing
710004048
Unavailable
MC2 2
Terminal
710002315
Unavailable
MFS B
Female Housing, 6 Circuits
710000081
Unavailable
MFS B
Cap
710000080
Unavailable
MFS B
Wire Seal
710000402
Unavailable
MFS B
Female Terminal
409012100
Unavailable
MFS W
Female Housing, 6 Circuits
710000081
Unavailable
MFS W
Cap
710000080
Unavailable
MFS W
Seal
409012300
Unavailable
MFS W
Wire Seal
710000402
Unavailable
MFS W
Female Terminal
409012100
Unavailable
OP PRES
Male Housing
278002378
Unavailable
OP PRES
Clip
710005273
Unavailable
OP PRES
Male Lock, 3 Circuits
409207600
Unavailable
OP PRES
Male Terminal
710001348
Unavailable
P ACC
Folded Terminal Eyelet
710006749
Unavailable
PF1
Fuse Cover
278003553
Unavailable
PF1
Fuse Base Ass'y
278003448
Unavailable
PF1
Wire Seal
278000216
Unavailable
PF1
Seal
293300198
Unavailable
PF1
Wire Seal
278000218
Unavailable
PF1
Wire Seal
278001065
Unavailable
PF1
Wire Seal
710000048
Unavailable
PF1
Female Terminal
710000918
Unavailable
PF1
Female Terminal
278002578
Unavailable
PF1
Female Terminal
515177177
Unavailable
PF1
Terminal
710008508
Unavailable
PF1 T LABEL
Fuses Decals
710008909
Unavailable
PF1-F10
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-F11
Little Fuse, 20 Amperes
710000746
Unavailable
PF1-F12
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-F14
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-F16
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-F18
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-F24
Little Fuse, 5 Amperes
710000742
Unavailable
PF1-F25
Little Fuse, 5 Amperes
710000742
Unavailable
PF1-F26
Little Fuse, 5 Amperes
710000742
Unavailable
PF1-R3
Relay, 30 AMP
515176774
Unavailable
PF1-R8
Relay
715900824
Unavailable
PF1-R9
Relay, 50 AMP
515176775
Unavailable
PF1-SPARE
Little Fuse, 20 Amperes
710000746
Unavailable
PF2
Fuse Cover
278003553
Unavailable
PF2
Fuse Base Ass'y
278003448
Unavailable
PF2
Wire Seal
278000216
Unavailable
PF2
Seal
293300198
Unavailable
PF2
Wire Seal
278000218
Unavailable
PF2
Wire Seal
278001065
Unavailable
PF2
Female Terminal
710000918
Unavailable
PF2
Female Terminal
278002578
Unavailable
PF2
Female Terminal
710000890
Unavailable
PF2 LABEL
Fuse Box Decal
710008085
Unavailable
PF2 SP1
Little Fuse, 10 Amperes
710000744
Unavailable
PF2 SP2
Little Fuse, 10 Amperes
710000744
Unavailable
PF2 SP3
Little Fuse, 10 Amperes
710000744
Unavailable
PF2-F18
Little Fuse, 10 Amperes
710000744
Unavailable
PF2-F4
Little Fuse, 10 Amperes
710000744
Unavailable
PF2-F5
Little Fuse, 10 Amperes
710000744
Unavailable
PF2-F6
Little Fuse, 10 Amperes
710000744
Unavailable
PF2-F7
Little Fuse, 10 Amperes
710000744
Unavailable
PF2-F8
Little Fuse, 10 Amperes
710000744
Unavailable
PF2-F9
Fuse, 25 Amps
710002590
Unavailable
PF2-R1
Relay, 30 AMP
515176774
Unavailable
PF2-R2
Relay
715900824
Unavailable
PF3
Fuse Holder
278001325
Unavailable
PF3
Female Terminal
710000113
Unavailable
PF3-F2
Fuse
710001613
Unavailable
PF4
Fuse Holder
278001325
Unavailable
PF4
Female Terminal
710000357
Unavailable
PF4-F21
Fuse
710001613
Unavailable
PL L
Male Connector, 2 Circuits
278000220
Unavailable
PL L
Wire Seal
278001065
Unavailable
PL L
Female Terminal
278000223
Unavailable
PL R
Male Connector, 2 Circuits
278000220
Unavailable
PL R
Wire Seal
278001065
Unavailable
PL R
Female Terminal
278000223
Unavailable
PPS
Housing
515177151
Unavailable
PPS
Lock 6 Positions
710005296
Unavailable
PPS
Seal
710001233
Unavailable
PPS
Terminal
710001229
Unavailable
R AC W10
Insulated Sheath
278001007
Unavailable
R AC W10
Female Terminal | DS 650 X
278001009
Unavailable
R AC W11
Insulated Sheath
278001007
Unavailable
R AC W11
Female Terminal | DS 650 X
278001009
Unavailable
R AC W4
Insulated Sheath
278001007
Unavailable
R AC W4
Female Terminal | DS 650 X
278001009
Unavailable
R AC W5
Insulated Sheath
278001007
Unavailable
R AC W5
Female Terminal | DS 650 X
278001009
Unavailable
R AC W6
Insulated Sheath
278001007
Unavailable
R AC W6
Female Terminal | DS 650 X
278001009
Unavailable
R AC W7
Insulated Sheath
278001007
Unavailable
R AC W7
Female Terminal | DS 650 X
278001009
Unavailable
R AC W8
Insulated Sheath
278001007
Unavailable
R AC W8
Female Terminal | DS 650 X
278001009
Unavailable
R AC W9
Insulated Sheath
278001007
Unavailable
R AC W9
Female Terminal | DS 650 X
278001009
Unavailable
R 1
Resistor
710006155
Unavailable
R 2
Resistor
710005179
Unavailable
R 36
Resistor
710007285
Unavailable
SB
Housing
710002177
Unavailable
SB
Lock
710002043
Unavailable
SB
Seal
278001482
Unavailable
SB
Female Terminal
710001134
Unavailable
SS
Female Housing, 2 Circuits
515177192
Unavailable
SS
Lock
710001152
Unavailable
SS
Seal Wire
710001153
Unavailable
SS
Female Terminal
710001164
Unavailable
TRL M 10P
Housing
710001952
Unavailable
TRL M 10P
Lock
710006361
Unavailable
TRL M 10P
Seal
710001233
Unavailable
TRL M 10P
Terminal
710001224
Unavailable
