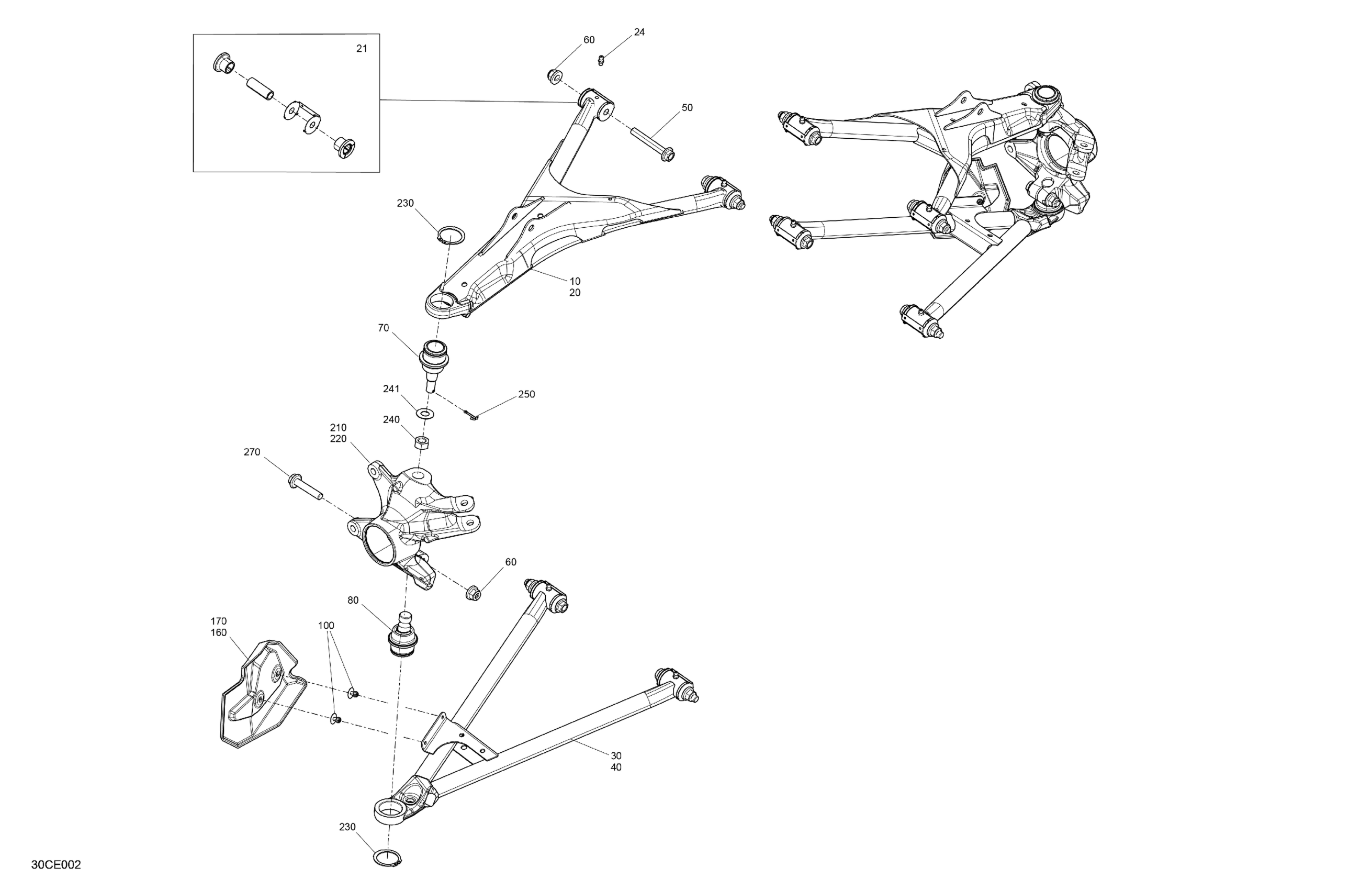

Can-Am CE - Traxter - HD9 - BASE - 6WSN - Compass Green - 62" Width - 2025 Suspension - Front Components Diagram

Deep Black, LH Upper Suspension Arm Ass'y With Balljoint This part replaces 706204176.

715010606

$249.99

Deep Black, RH Upper Suspension Arm Ass'y With Balljoint This part replaces 706204175.

715010605

$249.99

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Grease Fitting

408200700

$3.49

LH Rear Suspension Arm Ass'y With Balljoint

715010597

$249.99

RH Front Suspension Arm Ass'y With Balljoint

715010598

$249.99

Hex. Flange Screw M10 X 70

207607046

$2.96

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Joint

706203084

$35.99

Ball Joint

706202045

$35.99

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

RH CV joint Guard

706202135

$11.01

LH CV joint Guard

706202134

$11.01

LH Knuckle

706205046

$201.49

RH Knuckle

706205047

$201.49

Circlip

293370035

$2.64

Hex Nut M12

250100239

$2.00

Hardened Washer

706200281

$2.85

Cotter Pin

211400017

$0.33

Hex. Flange Screw M10 X 55

207605546

$2.11
