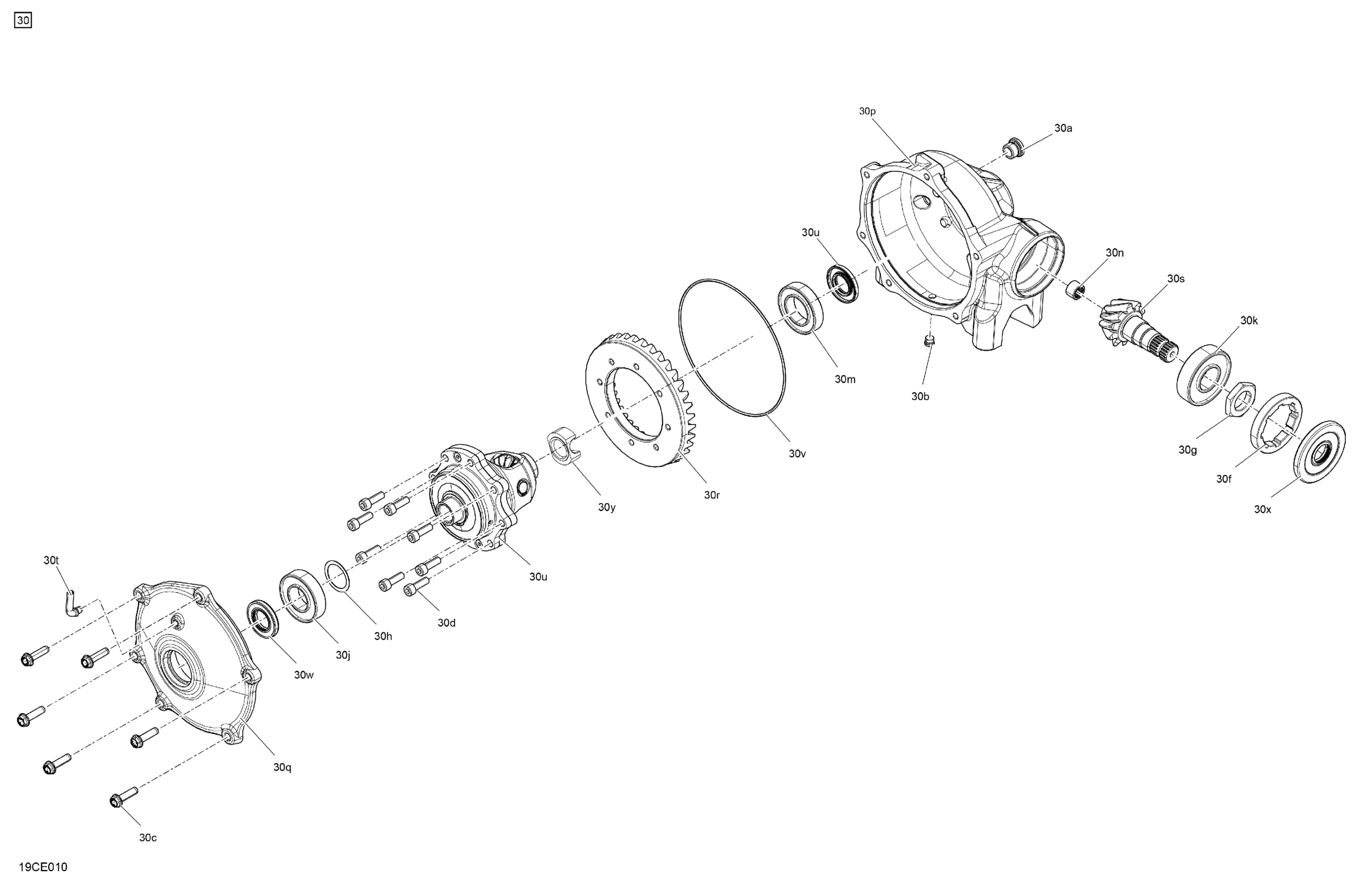

Can-Am CE - Traxter - HD9 - BASE - 6WSN - Compass Green - 62" Width - 2025 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30y

705403688

$1,338.43

30a

Fill Level Plug

705501889

$18.43

30b

Drain Plug | After May 30, 2014

705501885

$12.68

30c

Bolt

705501886

$6.75

30d

Hex Flange Screw Serrated M8 X 25

705403382

$11.83

30f

Nut M75 X 1.5

705401819

$23.05

30g

Nut M27 X 1.5

705401820

$23.05

30h

Shim | 4X4

705401604

$55.35

30j

Ball Bearing

705402847

$46.12

30k

Ball Bearing | 4X4

705401606

$49.20

30m

Ball Bearing

705401821

$30.39

30n

Ball Bearing | After May 30, 2014

705402848

$46.12

30p

Sprocket Cover

705402765

$152.28

30q

Machined Differential Cover

705403704

$152.28

30r

Gear 36 Teeth

705403693

$359.97

30s

Final Drive Pinion 10 Teeth

705403703

$198.43

30t

Vent Valve

705401935

$14.37

30u

Differential

705402997

$1,174.99

30v

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$8.45

30w

Oil Seal

705401836

$7.37

30x

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$16.89

30y

Spacer

715008576

$32.28
