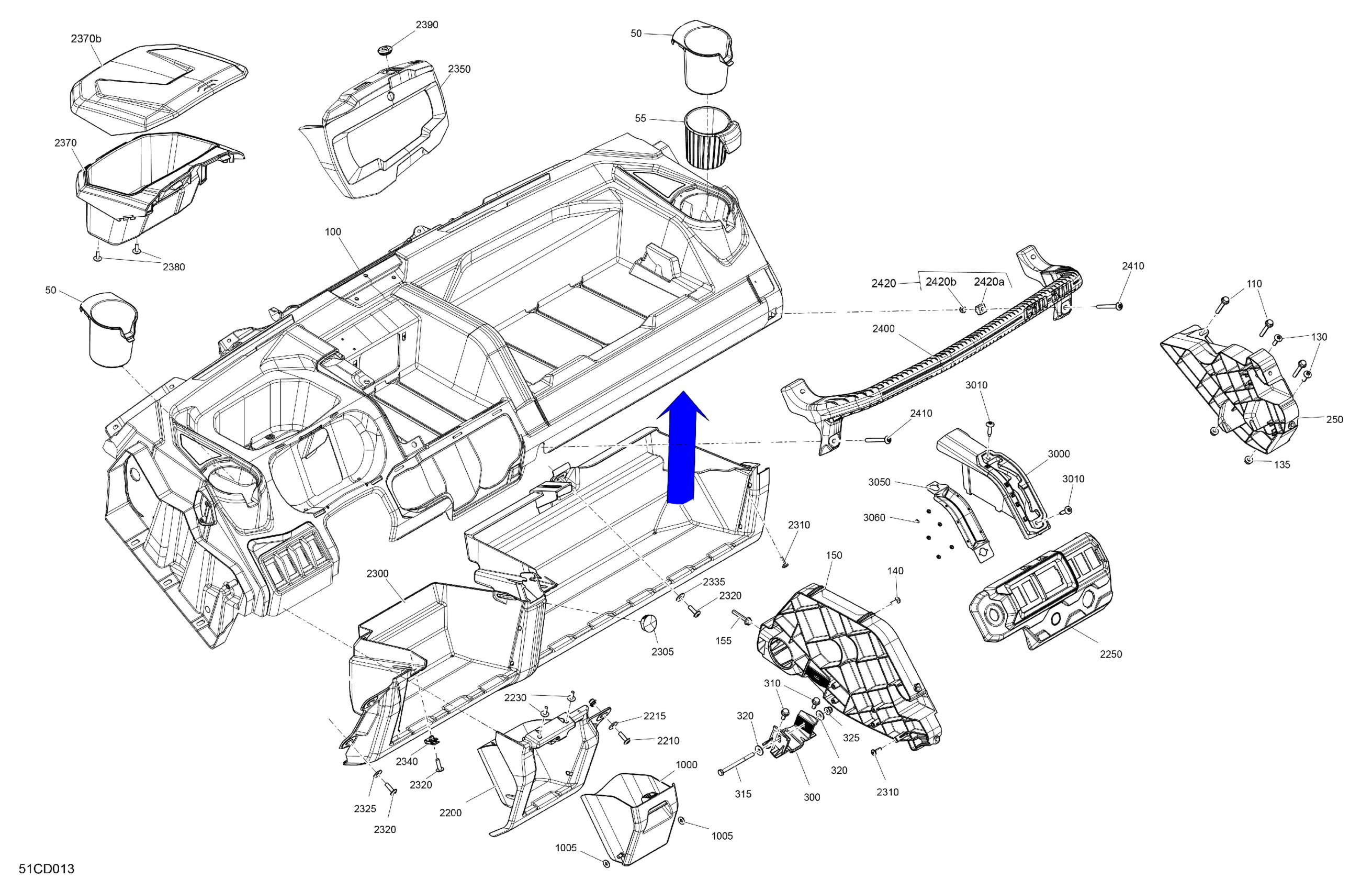

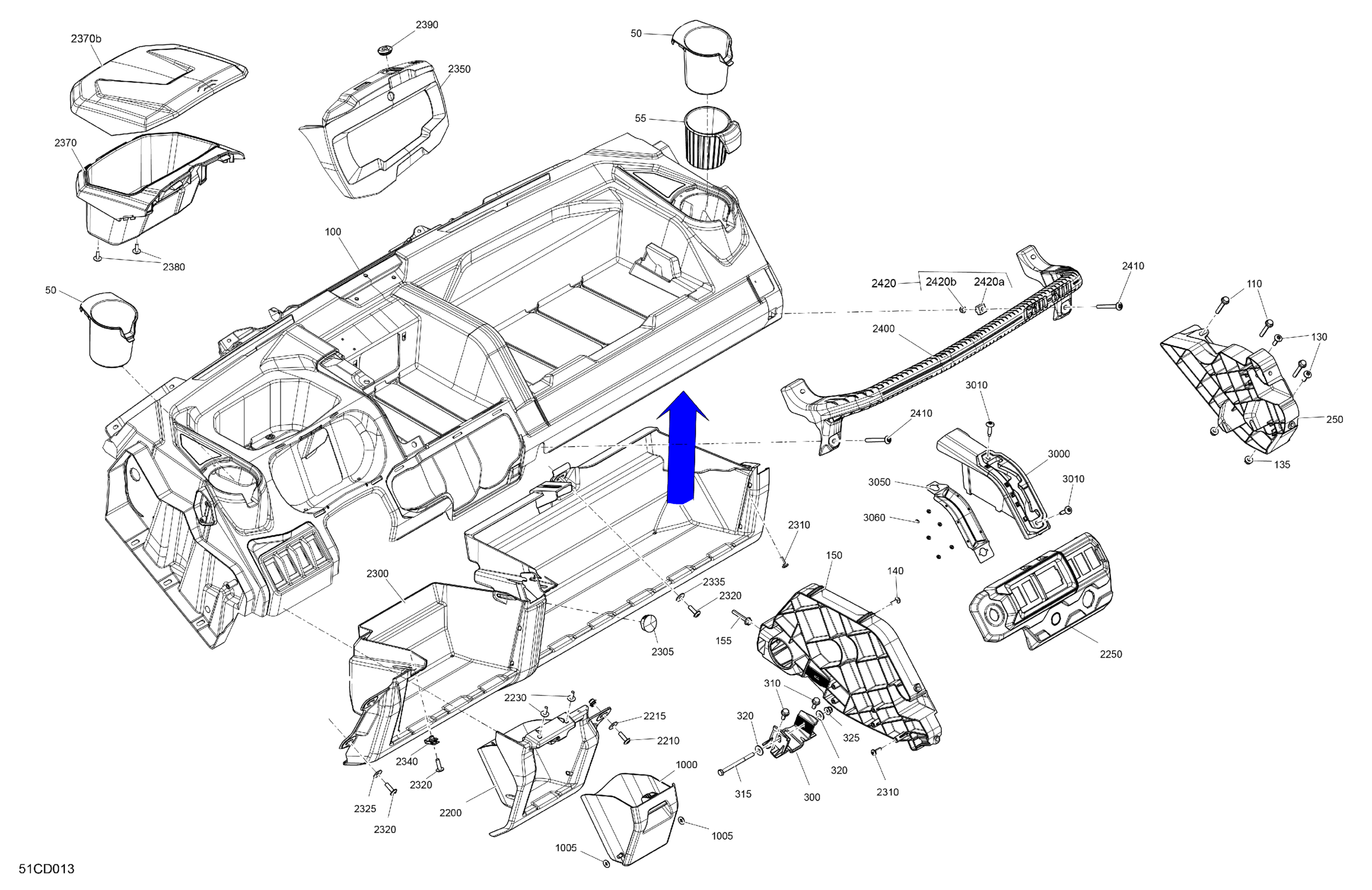

Can-Am CE - Traxter HD9 - BASE - 6WRN - Tundra Green - 62" Width, 2024 Cab Interior - Dashboard Diagram

Description

Price

Cup Holder

707900288

$13.85

Rubber Cap

707900580

$16.12

100

Upper Dashboard

715008411

$184.58

110

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$3.61

130

Torx Screw M6 X 20

250000712

$1.74

135

Hex. Flange Elastic Nut M6

233261494

$1.26

140

Torx Screw K50 X 16

250000720

$1.39

150

Dash Support

707900249

$64.58

155

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74

250

RH Support

707900367

$35.35

300

Plier

707900940

$5.98

310

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

315

Hex. Screw M6 X 80

207068044

$3.39

320

Stainless Steel Flat Washer

234062670

$1.74

325

Hex. Flange Elastic Nut M6

233261494

$1.26

1000

Drawer

707900252

$18.43

1005

O-Ring

293300194

$1.15

2200

LH Lower Dashboard

707901118

$41.51

2210

Torx Screw M6 X 20

250000722

$1.34

2215

Stainless Steel Flat Washer

234062670

$1.74

2230

Screw PT Type K-50 X 16

250000959

$1.74

2250

Switch Support Ass'y

715008266

$16.89

2300

Lower Dashboard

707901086

$104.49

2305

Cap

710004993

$6.75

2310

Torx Screw K50 X 16

250000720

$1.39

2320

Torx Screw M6 X 20

250000722

$1.34

2325

Stainless Steel Flat Washer

234062670

$1.74

2335

Stainless Steel Flat Washer

234062670

$1.74

2340

Panel Nut M6 X 1.0

250100198

$1.73

2350

Gauge Support

707900892

$18.99

2370

Storage Box Ass'y | Includes 2370 to 2370b

707900764

$69.20

2370b

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$41.51

2380

Screw PT Type K-50 X 16

250000959

$1.74

2390

Grommet

705003264

$3.43

2400

Passenger Handhold

707900248

$50.74

2410

Torx Screw M6 X 60

250000648

$6.15

2420

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

2420a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

2420b

Hex. Elastic Stop Nut M6

232561600

$0.92

3000

Shifter Gate

707900608

$8.98

3010

Torx Screw M6 X 25 | XT Models

250000728

$3.61

3050

Shifter Gate Deflector

707900506

$5.52

3060

Push Nut

250100178

$0.58
