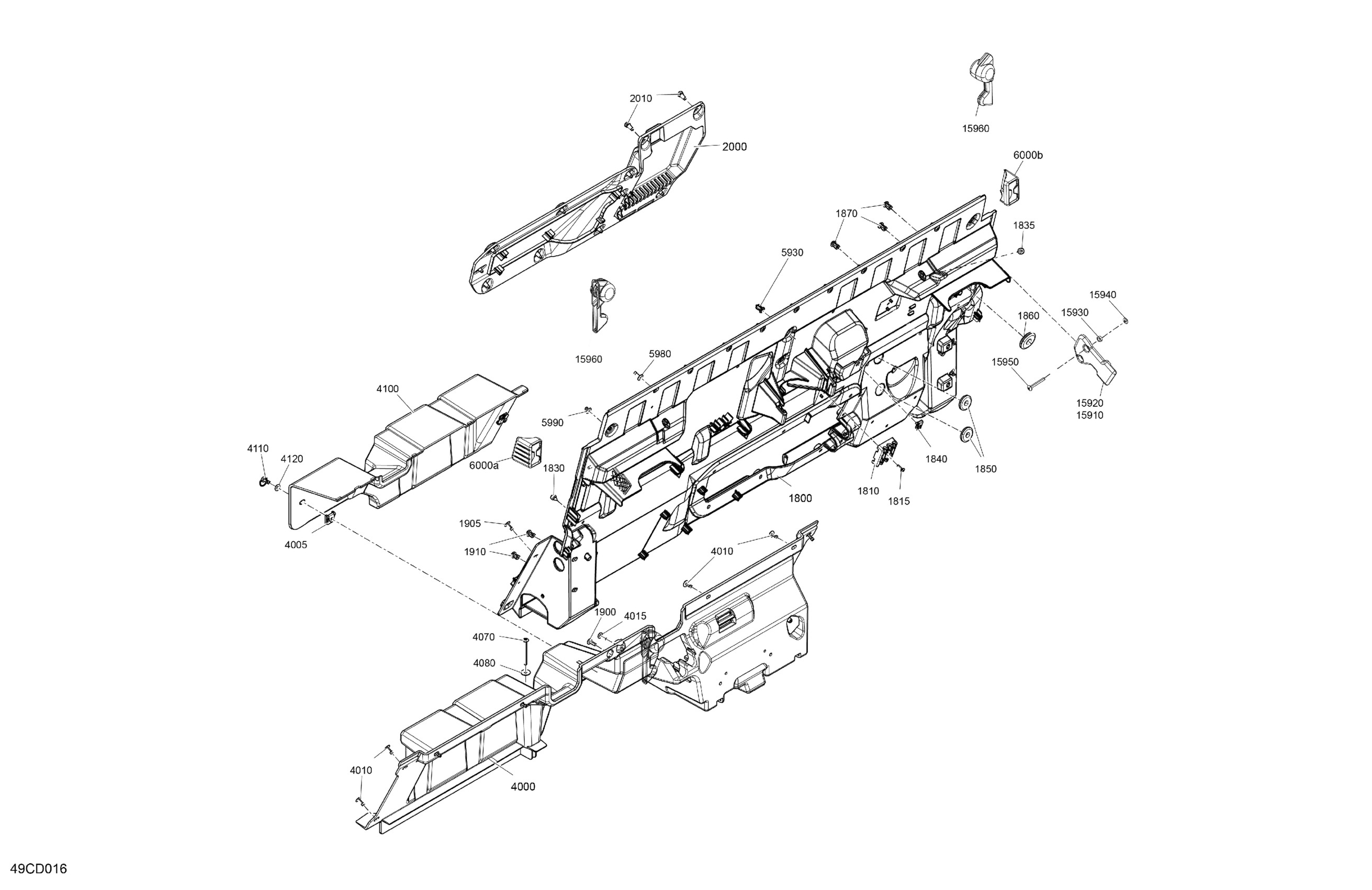

Can-Am CE - Traxter HD9 - BASE - 6WRN - Tundra Green - 62" Width, 2024 Cab Interior - Back Wall Diagram

Description

Price

1800

Rear Upper Cab Panel Ass'y | Includes 1800 to 1800f

715008410

$193.82

1810

Hose Support

707900788

$0.86

1815

Torx Screw K50 X 16

250000720

$1.39

1830

Rubber Bumper

293830005

$5.33

1835

Rubber Bumper

293830005

$5.33

1840

Panel Nut M6 X 1.0

250100198

$1.73

1850

Grommet

293720119

$4.98

1860

Grommet

293720119

$4.98

1870

Tuflok Plastic Rivet

293150230

$1.21

1900

Torx Screw M6 X 20

250000722

$1.34

1905

Pop Rivet 3/16"

293150100

$1.08

1910

Tuflok Plastic Rivet

293150230

$1.21

2000

Rear Access Cover

707900742

$78.43

2010

Torx Screw M6 X 20

250000712

$1.74

4000

Rear Lower Cab Panel

707901074

$207.66

4005

Quarter Turn Nut

705002651

$3.84

4010

Pop Rivet 3/16"

293150100

$1.08

4015

Torx Screw M6 X 20

250000722

$1.34

4070

Torx Screw M6 X 70

250000954

$1.56

4080

Flat Washer M6.6 X 22

250200162

$1.91

4100

Battery Cover

707900743

$87.66

4110

Quarter Turn Screw

705002649

$12.57

4120

Washer

708400286

$4.02

6000a

LH Cover

707901045

$3.68

6000b

RH Cover

707901046

$3.68

5930

Tuflok Plastic Rivet

293150230

$1.21

5980

Pop Rivet 3/16"

293150100

$1.08

5990

Pop Rivet 3/16"

293150103

$0.54

15910

LH Rear Guard

707900815

$16.12

15920

RH Rear Guard

707900816

$16.12

15930

Bushing

708300737

$4.62

15940

Flat Washer

224061121

$0.44

15950

Torx Truss Screw M6 X 50

250000749

$3.11

15960

Guard CTRL

707900856

$15.22
