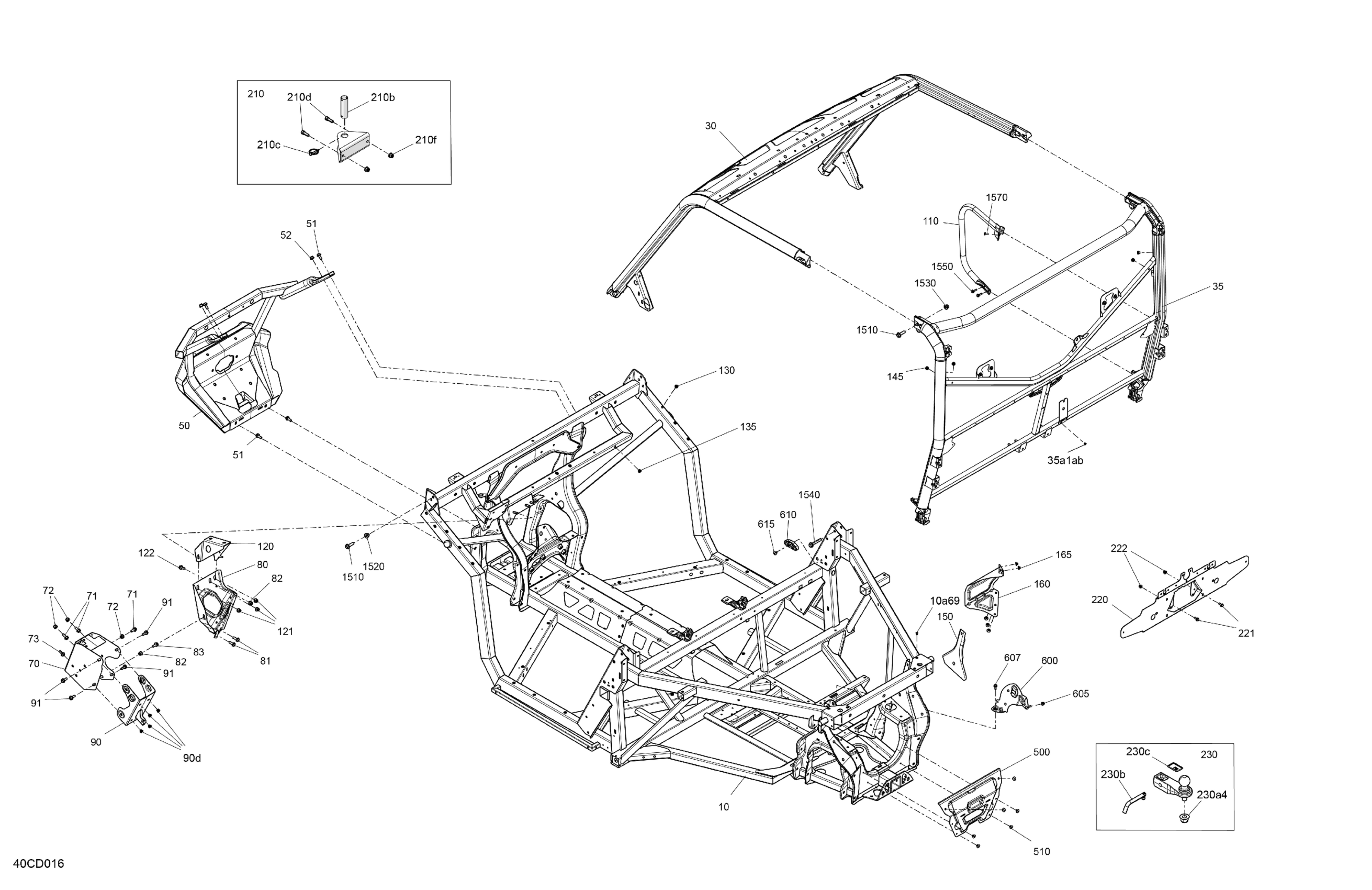

Can-Am CE - Traxter HD9 - BASE - 6WRN - Tundra Green - 62" Width, 2024 Frame - System Diagram

Deep Black, Chassis Kit

715009079

$2,589.99

Pop Rivet 3/16 X ,425

293150293

$0.35

Front Cage Ass'y

715008424

$649.99

Rear Cage Ass'y | Includes 35 to 35a1ab

715009067

$549.99

Pop Rivet 3/16 X ,425

293150293

$0.35

Deep Black, Front Bumper

705207588

$499.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Elastic Flange Nut M8

233281416

$1.48

Module Support

705212644

$59.99

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Support

705208740

$43.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20

207682044

$1.15

Steering Column Support | Includes 90 to 90d

705209190

$37.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Deep Black, RH Guard

705210930

$44.49

Module Support

705211549

$30.99

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20

207682044

$1.15

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Heat Shield

705014849

$2.59

Heat Shield

707002709

$61.99

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

Front Anchorage Strap Ass'y | Includes 150 to 150f

705211695

$48.99

Deep Black, Tube

705211696

$14.49

Pin

605456518

Unavailable

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Flange Elastic Nut M10

233201414

$1.58

Licence Plate Support

705014656

$114.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Drawbar Ass'y | Includes 230 to 230c

705208230

$166.49

Elastic Flange Nut M20

250100104

$12.66

Hitch Pin

705204490

$52.99

Hitch Approval Decal

704906897

$19.99

Rear Chassis Reinforcement

705207753

$33.99

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

Voltage Regulator Support

710009484

$17.49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Spacer

705208203

$20.99

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

Hex. Flange Screw M10 X 35

250000855

$1.89

Hex. Flange Elastic Nut M10

233201436

$2.11

Flange Elastic Nut M10

233201466

$3.17

Hex. Flange Screw M10 X 6

207606046

$4.12

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Torx Truss M6X14

250000789

$5.39
