Partiron

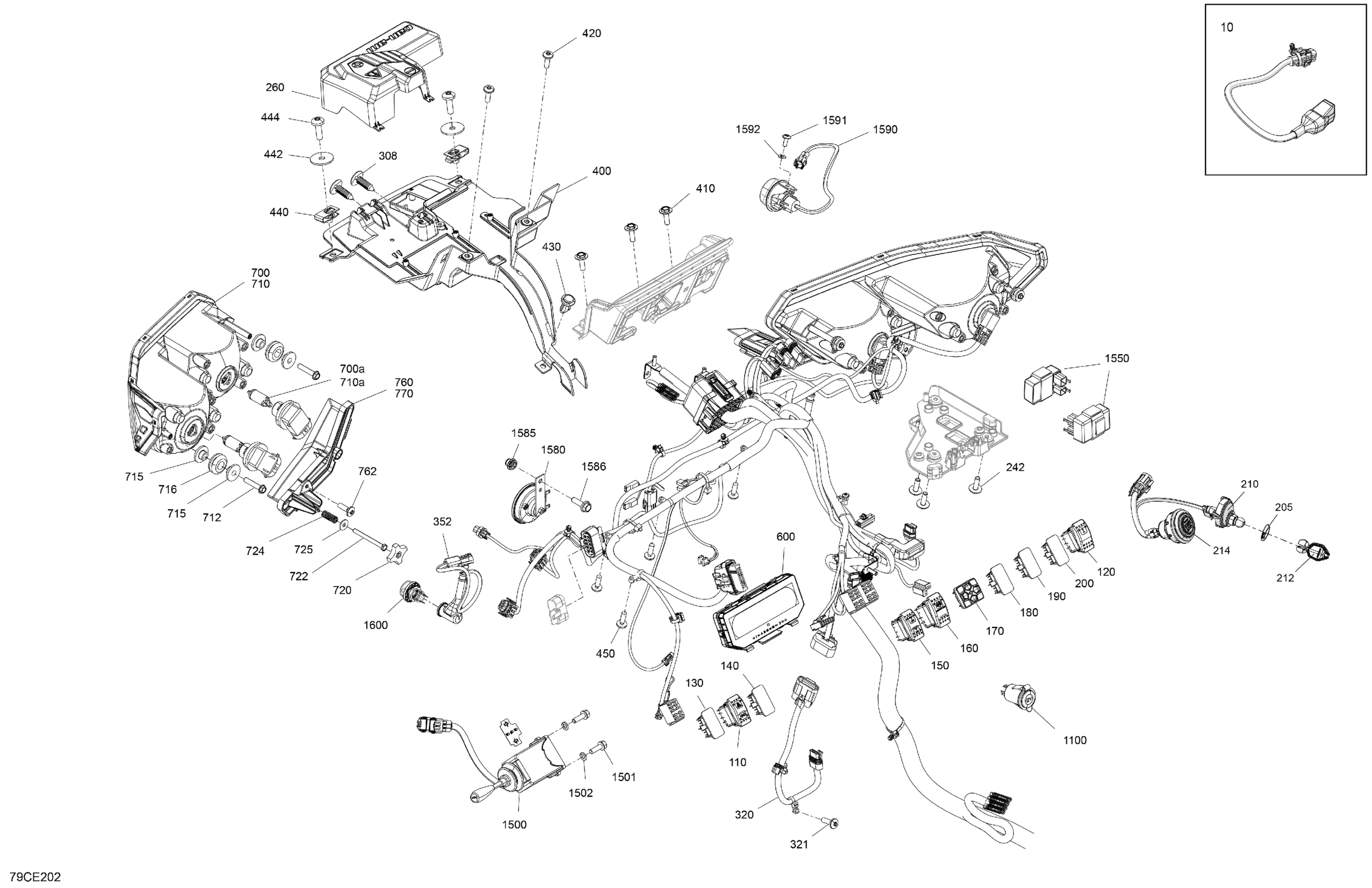

Can-Am CE - Traxter - HD7 - XU - 6DSN - Compass Green - 62" Width - 2025 Electric - Front Section Diagram

#

Description
Price

10

Wiring Harness

710007655

$26.99

110

Hazard Lights Switch

710006107

$19.49

120

Switch Winch

710002052

$28.49

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

150

Switch 2X4

710005489

$31.99

160

Differential Lock Switch

710005470

$46.49

170

Multifonction Switch

710006650

$87.99

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

200

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

205

Specialized Nut

278004274

$3.28

210

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

212

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

214

Start-Stop Button | Not Shown

710005213

$60.49

242

Screw PT Type K-50 X 16

250000959

$2.11

260

Junction Block Cover

710006707

$6.35

308

Black, Dart

293730006

$0.99

320

Throttle Pedal Harness

710006837

$239.99

321

Torx Screw K50 X 16

250000720

$1.69

352

Position Light Harness

710005676

$15.49

400

Wiring Harness Support

710006649

$24.49

410

Screw PT Type K-50 X 16

250000959

$2.11

420

Torx Screw K50 X 16

250000720

$1.69

430

Tuflok Plastic Rivet

293150230

$1.47

440

Panel Nut M6 X 1.0

250100198

$2.11

442

Washer M6

250200029

$2.50

444

Torx Screw M6 X 20

250000712

$2.11

450

Screw PT Type K-50 X 16

250000959

$2.11

600

MID Multifunction Gauge

710008295

$379.99

700

LH Headlamp | Includes 700 to 700a

710008313

$214.99

700a

Halogen Bulb H8 12V 35W

219800149

$41.49

710

RH Headlamp | Includes 710 to 710a

710008314

$214.99

710a

Halogen Bulb H8 12V 35W

219800149

$41.49

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

715

Shoulder Bushing

710004749

$2.69

716

Overmolded Grommet

293720130

$4.69

720

Handle

572106600

$10.33

722

Hex. Screw K40 X 45

250000718

$2.11

724

Spring

517168600

$7.39

725

Flat Washer 4 mm, Stainless

234042600

$1.15

760

Deep Black, LH Front Headlight Trim

710008973

$20.99

762

Screw PT Type K-50 X 16

250000959

$2.11

770

Deep Black, RH Front Headlight Trim

710008974

$20.99

1100

12V Power Outlet

710005374

$33.99

1500

Turn Signal | Europe

710001721

$209.99

1501

Hex. Forming Screw M5 X 16

210251650

$1.15

1502

Lock Washer 5 mm | Europe

234151401

$0.55

1550

Flasher Unit

710003239

$78.49

1580

Horn

710004791

$38.99

1585

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1586

Hex. Flange Screw M6 X 20

207662054

$1.01

1590

Flasher | Europe

710002964

$35.99

1591

Torx Truss Screw M6 X 16

250000721

$1.69

1592

Flat Washer 6 mm

234061410

$1.36

1600

Day Light | Europe

710001726

$35.99
