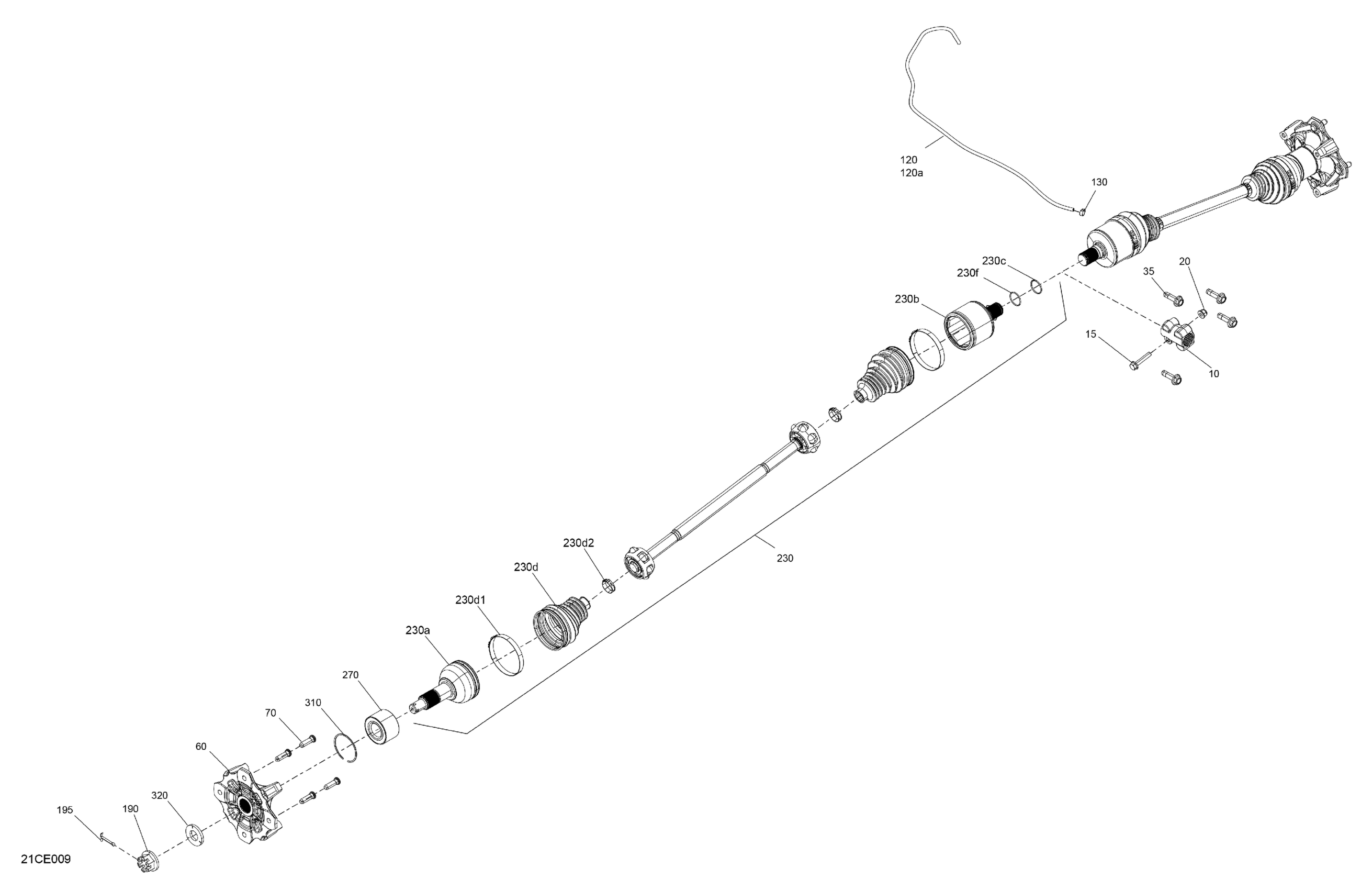

Can-Am CE - Traxter - HD7 - XU - 6DSN - Compass Green - 62" Width - 2025 Drive - Rear - Common Parts Diagram

Description

Price

Coupling Sleeve

709402586

$32.81

Hex. Flange Screw M8 X 42

250001050

$1.09

Hex. Elastic Flange Nut M8

233281416

$1.43

Screw-Hex.Flange M10 X 35 S.Grip

250001080

$2.00

Wheel Hub

705502338

$108.18

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

120

Hose 6.35MM ID

219704534

$23.10

120a

Hose 6.35MM ID

219704534

$23.10

130

Oetiker Clamp

293650042

$1.61

190

Castle Nut M20

250100193

$7.64

195

Cotter Pin

250400084

$2.06

230

Rear CV Joint | Includes 230 to 230f

705503100

$226.84

230a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

230b

Plunging Joint

715900444

$256.69

230c

Circlip

705501781

$5.10

230d

Boot Kit

705501864

$39.52

230d1

Oetiker Clamp, 82.1 mm

715900241

$9.00

230d2

Oetiker Clamp, 27.3 mm

715900242

$9.00

230f

O-Ring

715900579

$1.97

270

Ball Bearing

293350150

$50.34

310

Circlip

293370019

$4.68

320

Conical Spring Washer M20

250200170

$12.63
