02- Engine - System

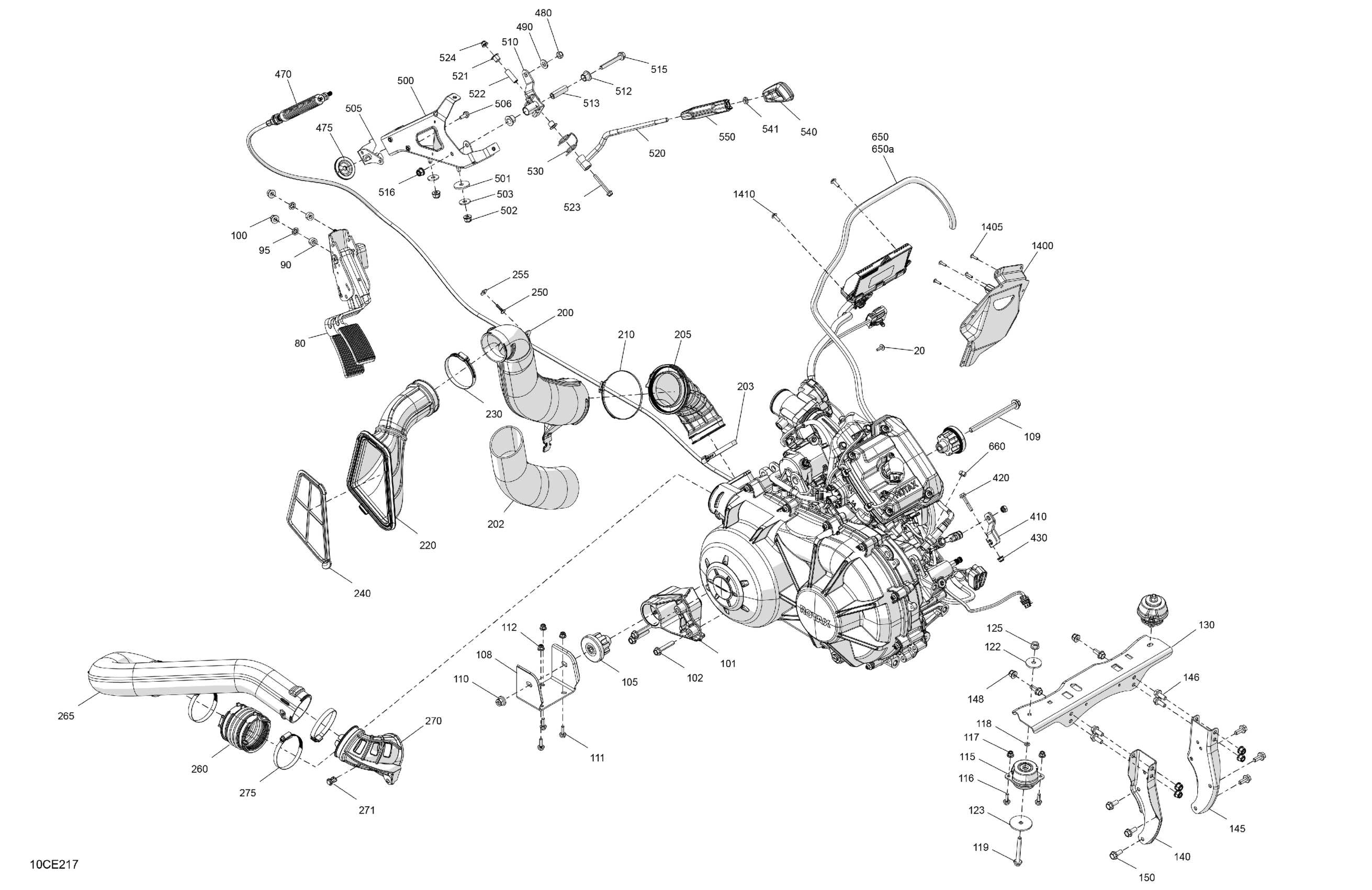

Can-Am CE - Traxter - HD7 - XU - 6DSN - Compass Green - 62" Width - 2025 02- Engine - System Diagram
#
20
Screw PT Type K-50 X 16
250000959
Unavailable
80
Accelerator Pedal
707003503
Unavailable
90
Bushing
707000848
Unavailable
95
Push Nut
250100031
Unavailable
100
Hex. Flange Nut M8
233081416
Unavailable
101
Engine Mount
707002636
Unavailable
102
Hex. Flange Screw M8 X 45, Scotch Grip
207584544
Unavailable
105
Vibration Damper
707002915
Unavailable
108
Engine Support
707002869
Unavailable
109
Hex. Flange Screw M10 X 135
230603546
Unavailable
110
Hex. Flange Elastic Nut M10
233201436
Unavailable
111
Hex. Flange Screw M6 X 20
207662044
Unavailable
112
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
115
Rubber Mount
707002590
Unavailable
116
Hex. Flange Screw M6 X 20
207662044
Unavailable
117
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
118
O-Ring
293300215
Unavailable
119
Hex. Flange Screw, M8 X 65
207686544
Unavailable
122
Flat Washer M8
250200158
Unavailable
123
Flat Washer M8
250200180
Unavailable
125
Hex. Flange Nut M8
233081416
Unavailable
130
Rear Link Bracket
707002290
Unavailable
140
LH Rear Engine Support
707003338
Unavailable
145
RH Rear Engine Support
707003340
Unavailable
146
Hex Flange Screw M8 X 20
207582046
Unavailable
148
Hex. Elastic Flange Nut M8
233281416
Unavailable
150
Hex Flange Screw M8 X 20
207582046
Unavailable
200
CVT Cooling Duct
706600398
Unavailable
202
Acoustic Insulation
706600363
Unavailable
203
Norma Clamp
514052924
Unavailable
205
Duct Fitting
706600395
Unavailable
210
Norma Clamp
514052924
Unavailable
220
Flexible Adaptor
706600084
Unavailable
230
Norma Clamp
293650091
Unavailable
240
CVT Filter
706600419
Unavailable
250
Torx Screw Truss Head K50X20 T20
250000760
Unavailable
255
Washer M5
250200025
Unavailable
260
Duct Fitting
707002573
Unavailable
265
CVT Cooling Duct
706600396
Unavailable
270
Duct Fitting
706600397
Unavailable
271
Tuflok Plastic Rivet
293150230
Unavailable
275
Norma Clamp
293650091
Unavailable
410
Clutch Lever
707002891
Unavailable
420
Hex. Flange Screw M6 X 35
207663544
Unavailable
430
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
470
Shift Lever Cable
707002875
Unavailable
475
Grommet
293720109
Unavailable
480
Hex. Elastic Stop Nut M8
232581414
Unavailable
490
Flat Washer 10 mm
234001410
Unavailable
500
Lever Support
707003601
Unavailable
501
Flat Washer M8
250200158
Unavailable
502
Hex. Flange Elastic Nut M8
233281414
Unavailable
503
Flat Washer 8 mm
234082410
Unavailable
505
Cable Support
707002038
Unavailable
506
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
510
Lower Shifter Arm
707002268
Unavailable
512
Venturi Bushing
293900001
Unavailable
513
Bushing
707003445
Unavailable
515
Hex. Flange Screw M8 x 60
207686044
Unavailable
516
Hex. Flange Elastic Nut M8
233281414
Unavailable
520
Shifter Arm
707002374
Unavailable
521
Flanged Bushing
707000869
Unavailable
522
Bushing
707001376
Unavailable
523
Hex. Flange Screw M6 X 50
207665044
Unavailable
524
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
530
Lever Arm Spring
707000750
Unavailable
540
Lever Trim
707003211
Unavailable
541
Hex. Jam Nut M8
232180491
Unavailable
550
Shifting Arm Cover
707001899
Unavailable
650
Hose 6.35MM ID
219704534
Unavailable
650a
Hose 6.35MM ID
219704534
Unavailable
660
Oetiker Clamp
293650042
Unavailable
1400
Module Support
707901206
Unavailable
1405
Torx-Truss Pt K40 X 16
250000759
Unavailable
1410
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
