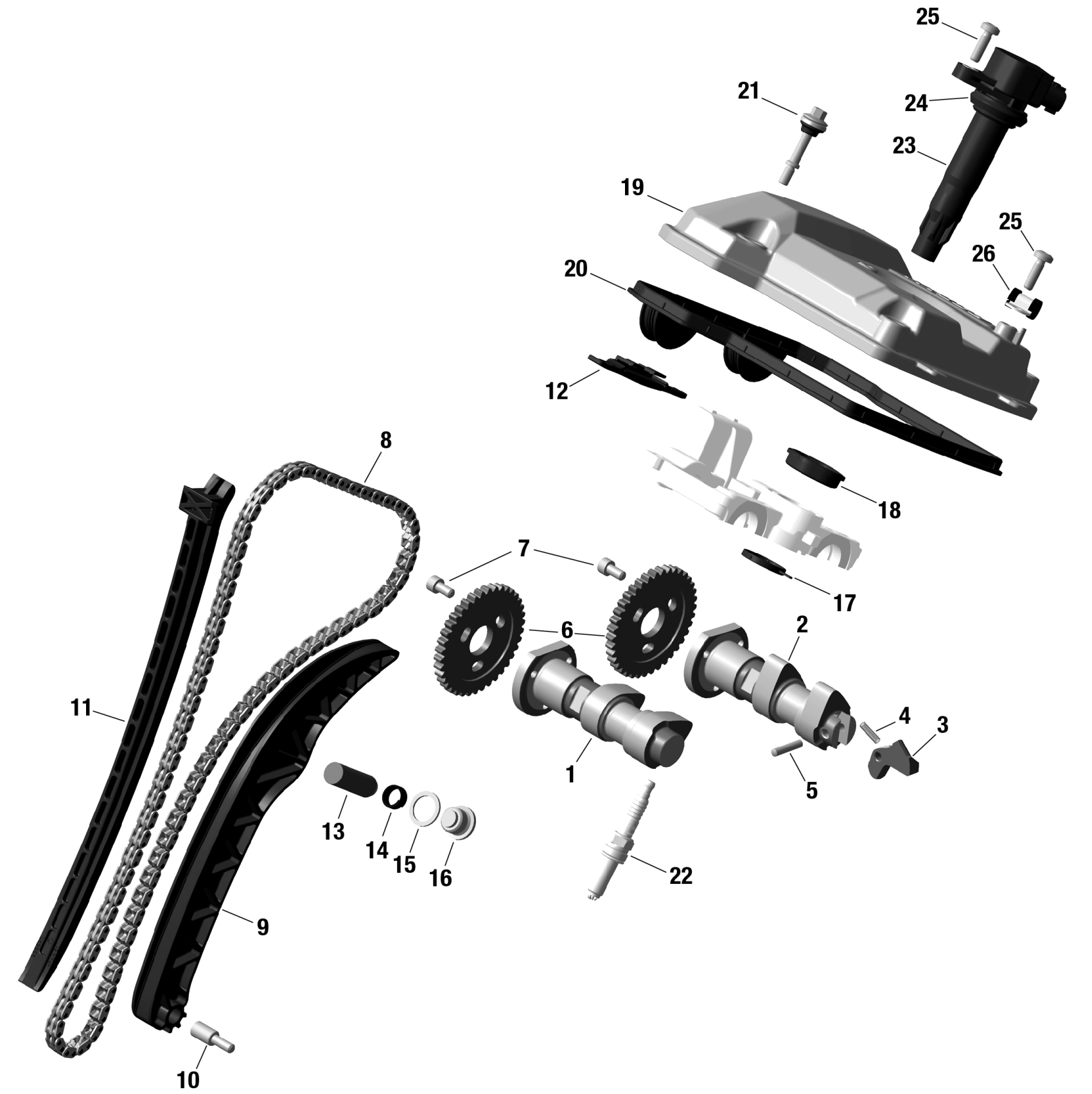

Can-Am CE - Traxter HD7 - XU - 6DRN - Tundra Green - 62" Width, 2024 ROTAX - Valve Train Diagram

#

Description
Price

1

Intake Camshaft -5/53

420281571

$171.49

2

Camshaft Exhaust Ass'y | Includes no. 2-5

420281579

$190.49

3

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Camshaft Sprocket 38 Teeth

420254446

$18.49

7

Allen Screw M6 X 12

420840032

$4.44

8

Silent Chaine

420297075

$90.99

9

Chain Tension Guide

420936530

$30.49

10

Bearing Screw M6

420240945

$5.24

11

Chain Guide

420936520

$13.16

12

Upper Chain Guide

420936540

$6.56

13

Chain Tensioner

420236395

$47.49

14

Compression Spring

420238732

$5.89

15

Gasket Ring

420430624

$1.89

16

Plug Screw

420840591

$8.57

17

Camshaft Housing Gasket

420431760

$3.17

18

Valve Cover Gasket

420431751

$3.17

19

Valve Cover

420610445

$29.49

20

Gasket | Included in gasket kit

420630281

$36.99

21

Hex Screw M6 X 30

420440568

$8.58

22

Spark Plug

715900785

$21.99

23

Ignition Coil Ass'y | Includes no. 23-24

420666148

$124.99

24

Protection Cap

420201430

$7.51

25

Torx Flange Screw M6 X 20

420441383

$5.40

26

Clamp

420853414

$18.49
