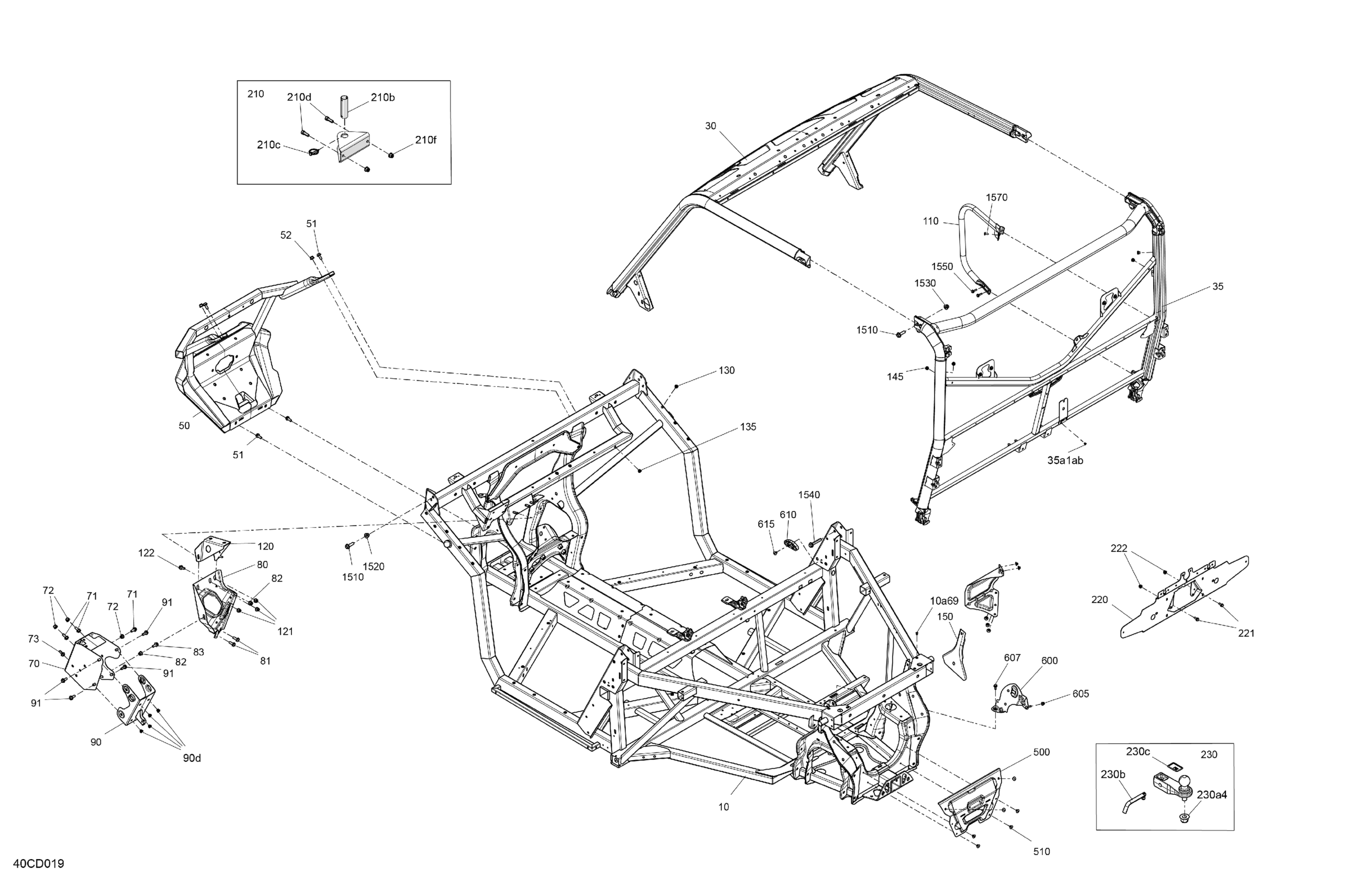

Can-Am CE - Traxter HD7 - BASE - 6XRN - Tundra Green - 62" Width, 2024 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009079

$2,589.99

10a69

Pop Rivet 3/16 X ,425

293150293

$0.30

30

Front Cage Ass'y

715008424

$649.99

35

Rear Cage Ass'y | Includes 35 to 35a1ab

715009067

$549.99

35a1ab

Pop Rivet 3/16 X ,425

293150293

$0.30

50

Deep Black, Front Bumper

705207588

$493.25

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

52

Hex. Elastic Flange Nut M8

233281416

$1.43

70

Module Support

705212644

$49.22

71

Hex. Flange Screw M8 X 20

207682044

$1.06

72

Hex. Elastic Flange Nut M8

233281416

$1.43

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

80

Support

705208740

$39.52

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

82

Hex. Elastic Flange Nut M8

233281416

$1.43

83

Hex. Flange Screw M8 X 20

207682044

$1.06

90

Steering Column Support | Includes 90 to 90d

705209190

$33.55

90d

Insert Half Hex Body M6 x 1.0

250100199

$2.91

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

110

Deep Black, RH Guard

705210930

$41.01

120

Module Support

705211549

$27.58

121

Hex. Elastic Flange Nut M8

233281416

$1.43

122

Hex. Flange Screw M8 X 20

207682044

$1.06

130

Insert Half Hex Body M6 x 1.0

250100199

$2.91

135

Insert Half Hex Body M6 x 1.0

250100199

$2.91

145

Insert Half Hex Body M6 x 1.0

250100199

$2.91

150

Heat Shield

705014849

$2.59

210

Front Anchorage Strap Ass'y | Includes 150 to 150f

705211695

$43.25

210b

Deep Black, Tube

705211696

$13.85

210c

Pin

605456518

Unavailable

210d

Socket Screw M10 x 30 | XT

205003044

$3.00

210f

Hex. Flange Elastic Nut M10

233201414

$1.45

220

Licence Plate Support

705014656

$103.70

221

Hex. Flange Screw M6 X 16

207661644

$0.70

222

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

230

Drawbar Ass'y | Includes 230 to 230c

705208230

$166.49

230a4

Elastic Flange Nut M20

250100104

$11.15

230b

Hitch Pin

705204490

$52.96

230c

Hitch Approval Decal

704906897

$16.39

500

Rear Chassis Reinforcement

705207753

$30.57

510

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

600

Voltage Regulator Support

710009484

Unavailable

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

610

Spacer

705208203

$17.13

615

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

1510

Hex. Flange Screw M10 X 35

250000855

$1.67

1520

Hex. Flange Elastic Nut M10

233201436

$2.00

1530

Flange Elastic Nut M10

233201466

$3.01

1540

Hex. Flange Screw M10 X 6

207606046

$3.88

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

1570

Torx Truss M6X14

250000789

$5.06
