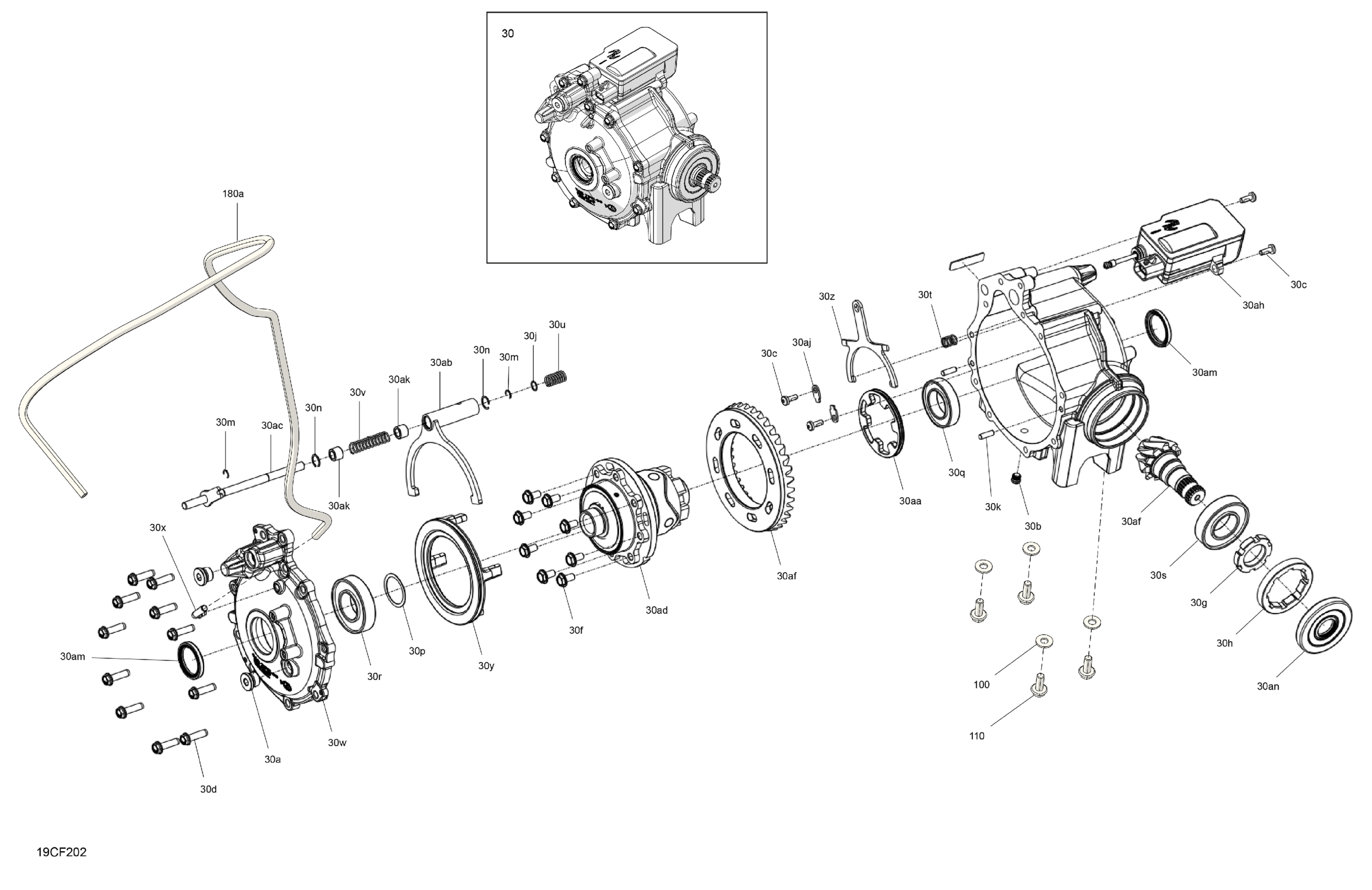

Can-Am CE - Traxter - HD11 - XT - 8CTT - Stealth Black - 65" Width, 2026 Drive - Front - Differential Parts Diagram

#

Description
Price

30

Front Differential Ass'y | Includes 30 to 30an This part replaces 705403350.

705404096

$1.00

30a

Fill Level Plug

705501889

$20.49

30b

Fill Level Plug M10

715900563

$27.49

30c

Torx Screw M6 X 16

705402845

$11.05

30d

Bolt

705501886

$7.69

30f

Custom Hex Screw Flange Head

715900798

$2.99

30g

Pinion Nut M32

715900847

$15.99

30h

Pinion Nut M78

715900848

$23.99

30j

Thrust Washer | Not Shown

715900801

$35.99

30k

Dowel Pin

715900559

$6.67

30m

Ring External Shaft

715900719

$28.99

30n

Ring, Internal Spiral Housing

715900720

$28.99

30p

Shim

705402846

$32.99

30q

Ball Bearing

705402847

$49.99

30r

Ball Bearing

705502846

Unavailable

30s

Ball Bearing

715901031

$99.99

30t

Compression Spring | Not Shown

715900802

$31.99

30u

Locker Spring | Not Shown

715900803

$11.99

30v

Spring

715900722

$71.99

30w

Cover

715900977

Unavailable

30x

Vent Valve

705401935

$16.49

30y

Disconnect

715900978

Unavailable

30z

Front Differential Pivot Fork

715900979

$33.99

30aa

Dog Lock

715900980

$42.99

30ab

Fork Disconnect

715900981

$83.99

30ac

Shift Rail

715900982

$31.99

30ad

Differential Subassembly

715901053

Unavailable

30af

Ring Gear And Pinion Set

715900984

$399.99

30ah

Actuator

715900986

$419.99

30aj

Retainer Fork | Not Shown

715900766

$14.49

30ak

Bushing

715900987

$9.99

30am

Oil Seal

715900988

$18.49

30an

Seal Triple Lip 27.5x80.0x11.0

715900880

$47.49

100

Hex. Flange Screw M10 X 25

207502546

$2.11

110

Conical Spring Washer 10 mm

234201474

$1.69

180a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
