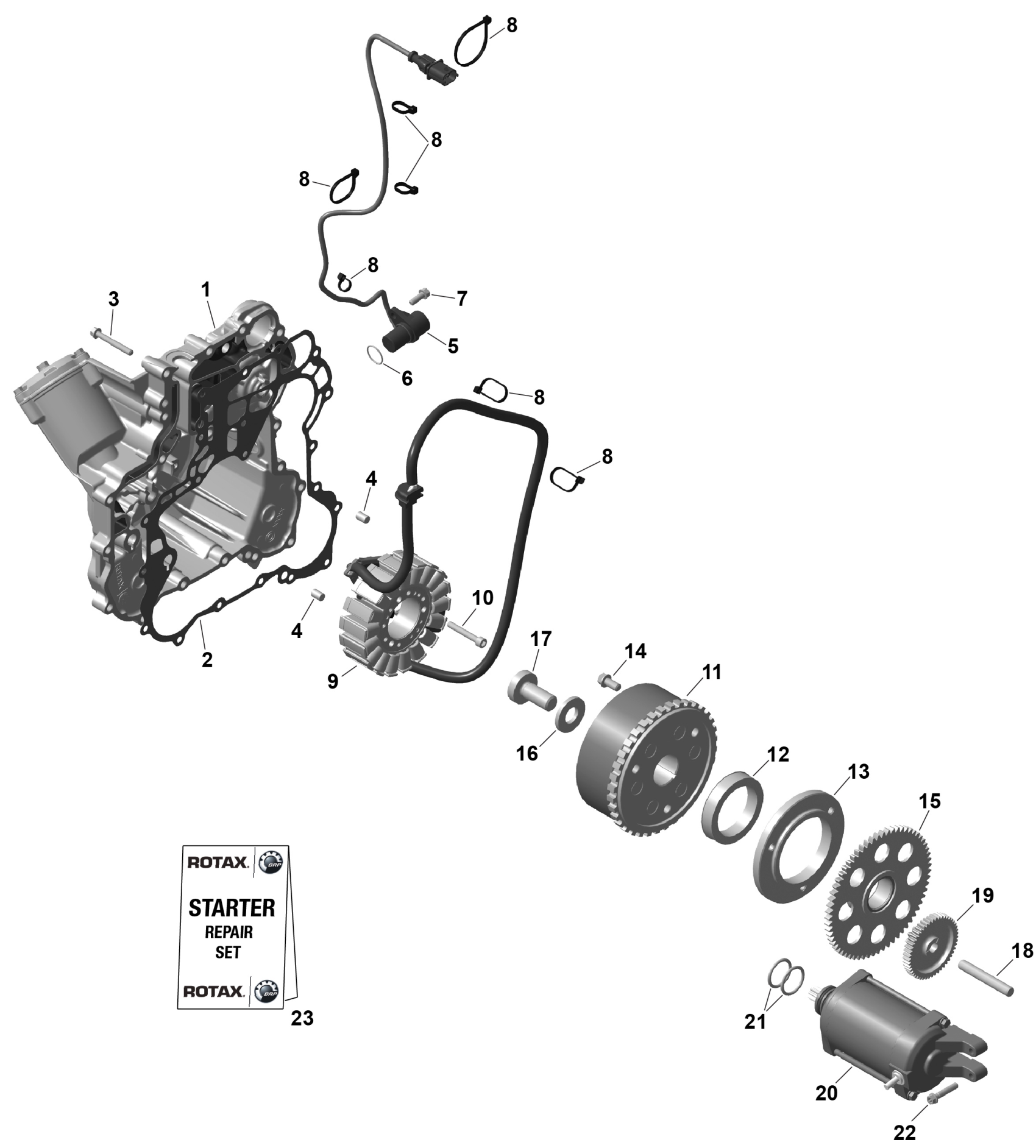

Can-Am CE - Traxter - HD11 - XT - 8CTT - Stealth Black - 65" Width, 2026 ROTAX - Magneto and Electric Starter Diagram

Ignition Cover

420911063

$145.49

Magneto Gasket | Included in gasket kit

420431642

$36.54

Torx Flange Screw M6 X 30

420440647

$1.91

Center Pin 8 X 12

420632014

$3.52

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

O-Ring

420431580

$14.10

Torx Flange Screw M6 X 16

420440162

$3.01

Tie Wrap 142X 3.2mm

420866722

$0.16

Stator Ass'y 14V 650W

420685628

$310.42

Allen Screw M6 X 40

420241956

$3.01

Mag. Flywheel W. Flywheel Hub Ass'y

420686274

$1,059.99

Sprag Clutch

420659113

$235.79

Sparg Clutch Housing

420659263

$141.01

Torx Flange Screw M8 X 16

420440854

$4.15

Free Wheel Gear, 64 Teeth

420434238

$101.46

SHIM 17/36/4

420627272

$3.84

Flat Head Screw M16 X 35

420241547

$7.93

Needle Pin

420229475

$14.10

Double Gear 11/49

420634743

$179.07

Starter Ass'y | Includes 8 to 9

420893830

$251.74

O-Ring

420250145

$9.03

Torx Flange Screw M6 X 30

420440647

$1.91

Carbon Brush Set

420881145

$182.06
