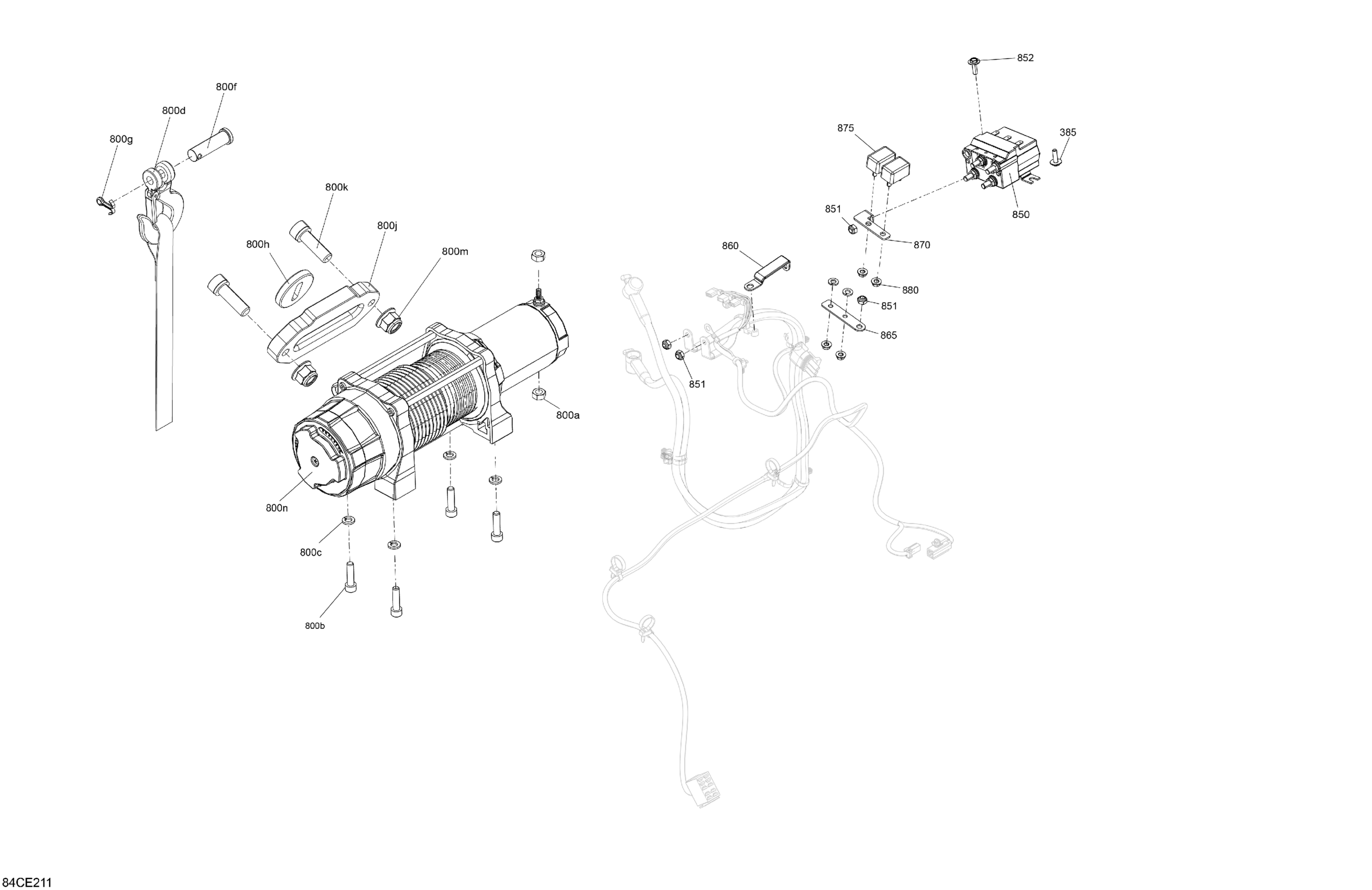

Can-Am CE - Traxter - HD10 - XMR - 8YSN - Hyper Silver - 67" Width - 2025 08- Electric - Winch Diagram

#

Description
Price

385

Screw PT Type K-50 X 16

250000959

Unavailable

800a

Elastic Stop Nut M6

232561434

Unavailable

800b

Socket Head Screw M8 X 30

205083044

Unavailable

800c

Lock Washer 8 mm

234181401

Unavailable

800d

Winch Hook Kit

705014949

Unavailable

800f

Winch Hook Kit

705014949

Unavailable

800g

Winch Hook Kit

705014949

Unavailable

800h

Stopper

710007028

Unavailable

800j

Winch Rope Guide Kit

715006426

Unavailable

800k

Socket Screw M10 x 30 | XT

205003044

Unavailable

800m

Hex. Flange Elastic Nut M10

233201414

Unavailable

800n

Electric Winch

710006990

Unavailable

803a

Deepo Black, Winch Support | Includes 53a to 53a

705211620

Unavailable

850

Solenoid

710006991

Unavailable

851

Elastic Stop Nut M6, Brass

232561200

Unavailable

852

Torx Screw K50 X 16

250000720

Unavailable

860

Power Bar

710004772

Unavailable

865

Copper Busbar

710006401

Unavailable

870

Power Bar

710004873

Unavailable

875

Circuit Breaker 50 Amp

710007039

Unavailable

880

Flange Elastic Nut M5

233251434

Unavailable
