03- Mechanic - Brake System

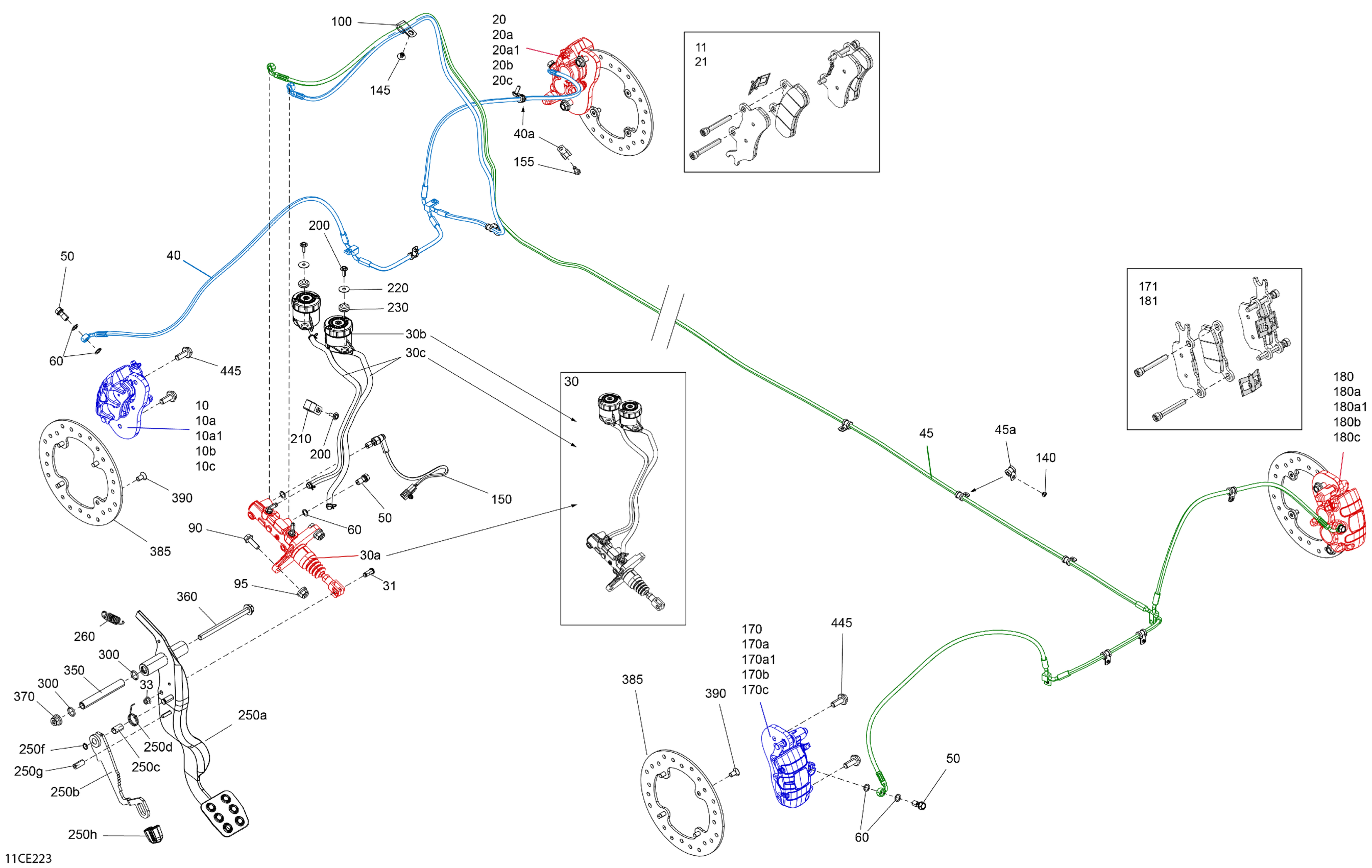

Can-Am CE - Traxter - HD10 - XMR - 8YSN - Hyper Silver - 67" Width - 2025 03- Mechanic - Brake System Diagram
#
10
LH Front Brake Caliper | Includes 10 to 10c
705602180
Unavailable
10a
LH Brake Pads
715900379
Unavailable
10b
Bleeding Screw
705601017
Unavailable
10c
Cap Spring Kit
715900385
Unavailable
20
RH Front Brake Caliper | Includes 20 to 20c
705602181
Unavailable
20a
RH Brake Pads
715900380
Unavailable
20b
Bleeding Screw
705601017
Unavailable
20c
Cap Spring Kit
715900385
Unavailable
30
Master Cylinder Ass'y | Includes 30 to 30c
705602307
Unavailable
30a
Master Cylinder
705602306
Unavailable
30b
Oil Tank
705601020
Unavailable
30c
Housing Oil Hose
705601866
Unavailable
31
Socket Head Screw M8 X 16
250000669
Unavailable
33
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
40
Front Caliper Hose | Includes 40 to 40a
705601758
Unavailable
40a
Clamp
293650256
Unavailable
45
Rear Caliper Hose | Includes 45 to 45a
705601760
Unavailable
45a
Clamp
293650256
Unavailable
50
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
60
Copper Washer
705601628
Unavailable
90
Hex. Flange Screw M8 X 25
207682544
Unavailable
95
Hex. Elastic Flange Nut M8
233281416
Unavailable
100
Open Clamp
515175507
Unavailable
140
Pop Rivet 3/16 X ,425
293150293
Unavailable
145
Black, Pop Rivet 3/16 X ,550
293150292
Unavailable
150
Brake Switch
705601250
Unavailable
155
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
170
LH Rear Brake Caliper | Includes 170 to 170c
705602182
Unavailable
170a
Dual Piston Brake Pad Kit
703501226
Unavailable
170b
Bleeding Screw
705601017
Unavailable
170c
Cap Spring Kit
715900385
Unavailable
180
RH Rear Brake Caliper | Includes 180 to 180c
705602183
Unavailable
180a
RH Brake Pads
715900382
Unavailable
180b
Bleeding Screw
705601017
Unavailable
180c
Cap Spring Kit
715900385
Unavailable
200
Screw PT Type K-50 X 16
250000959
Unavailable
210
Open Clamp
515175507
Unavailable
220
Flat Washer
250200040
Unavailable
230
Grommet
414036300
Unavailable
250a
Brake Pedal | Includes 250 to 250a
705601777
Unavailable
250b
Lever
705601725
Unavailable
250c
Bushing
705601722
Unavailable
250d
Return Spring
705602266
Unavailable
250f
Circlip
705601770
Unavailable
250g
Hose
219704549
Unavailable
250h
Adjustment Handle
708002655
Unavailable
260
Brake Pedal Spring
705600792
Unavailable
300
O-Ring
293300144
Unavailable
350
Inside Sleeve
705601373
Unavailable
360
Hex. Flange Screw, M10 X 130
230603046
Unavailable
370
Hex. Flange Elastic Nut M10
233201436
Unavailable
385
Brake Disc
705601511
Unavailable
390
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
445
Hex. Flange Screw M10 X 25
207502546
Unavailable
