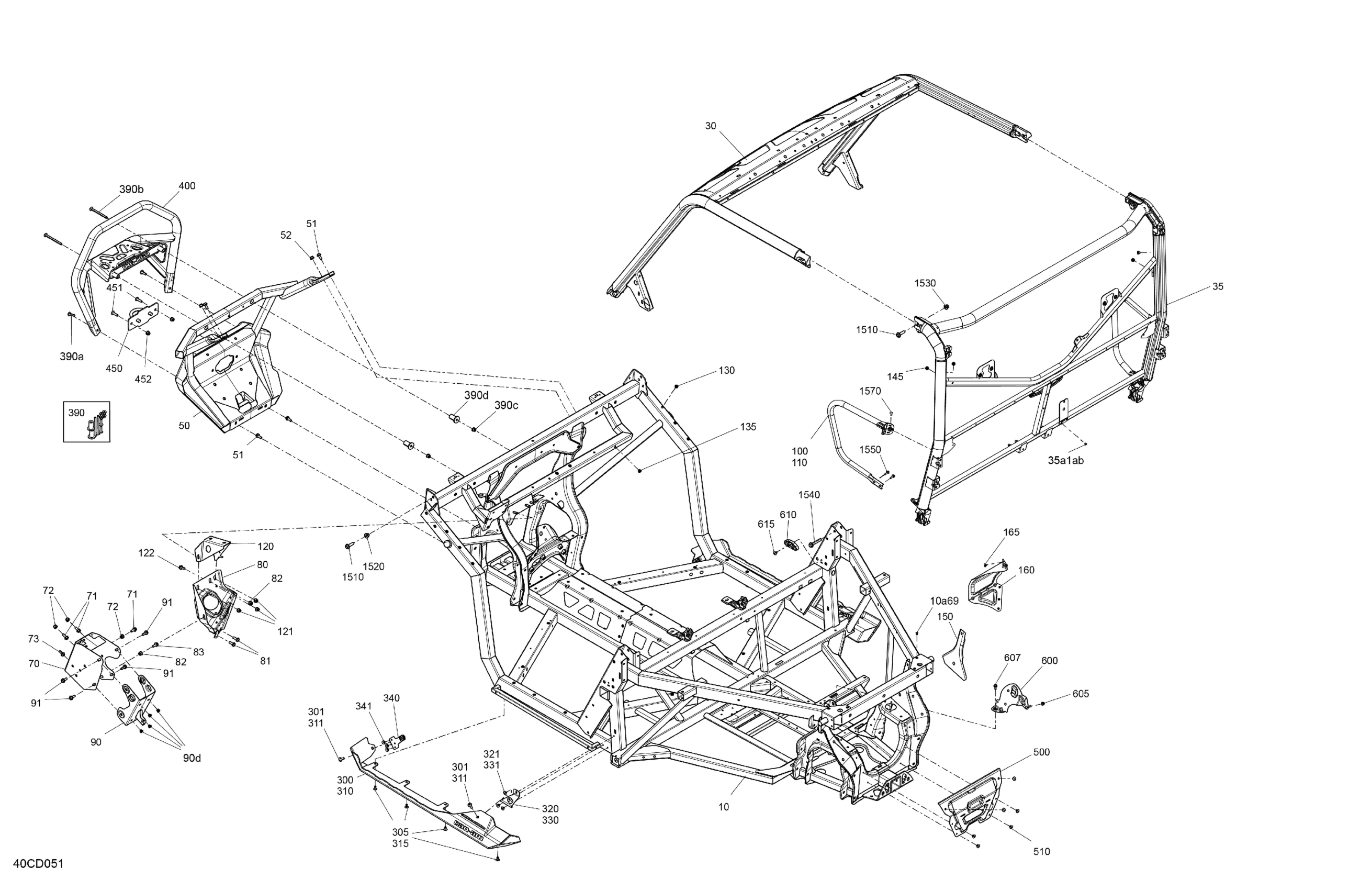

Can-Am CE - Traxter HD10 - XMR - 8YRN - Hyper Silver - 67" Width, 2024 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009075

$3,159.99

10a69

Pop Rivet 3/16 X ,425

293150293

$0.30

30

Hyper Silver, Front Cage Ass'y

715009800

$649.99

35

Hyper Silver, Rear Cage Ass'y | Includes 35 to 35a1ab

715009801

$649.99

35a1ab

Pop Rivet 3/16 X ,425

293150293

$0.30

50

Deep Black, Front Bumper

705207588

$493.25

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

52

Hex. Elastic Flange Nut M8

233281416

$1.43

70

Module Support

705212644

$49.22

71

Hex. Flange Screw M8 X 20

207682044

$1.06

72

Hex. Elastic Flange Nut M8

233281416

$1.43

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

80

Power Steering Support

705208741

$63.40

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

82

Hex. Elastic Flange Nut M8

233281416

$1.43

83

Hex. Flange Screw M8 X 20

207682044

$1.06

90

Steering Column Support | Includes 90 to 90d

705209190

$33.55

90d

Insert Half Hex Body M6 x 1.0

250100199

$2.91

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

100

Hyper Silver, LH Guard

705211525

$40.27

110

Hyper Silver, RH Guard

705211528

$41.01

120

Module Support

705211549

$27.58

121

Hex. Elastic Flange Nut M8

233281416

$1.43

122

Hex. Flange Screw M8 X 20

207682044

$1.06

130

Insert Half Hex Body M6 x 1.0

250100199

$2.91

135

Insert Half Hex Body M6 x 1.0

250100199

$2.91

145

Insert Half Hex Body M6 x 1.0

250100199

$2.91

150

Heat Shield

705014849

$2.59

160

Heat Shield

707002709

$46.24

165

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

300

Deep Black, LH Guard Panel

705208686

$274.60

301

Torx Truss M8 X 25

250000874

$2.00

305

Pop Rivet 3/16”

293150108

$1.19

310

Deep Black, RH Guard Panel

705208687

$273.10

311

Torx Truss M8 X 25

250000874

$2.00

315

Pop Rivet 3/16”

293150108

$1.19

320

LH Guard Support

705211575

$41.01

321

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

330

RH Guard Support

705211576

$40.27

331

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

340

Front Guard Support

705208661

$4.81

341

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

390

Bumper Ass'y Kit | Includes 390 to 390d

708200976

$41.01

390a

Torx Screw M8 X 30

250000886

$2.00

390b

Torx Truss M/S M8 x X 100

250001106

$6.34

390c

Hex. Flange Elastic Nut M8

233281414

$1.31

390d

Spacer

705207754

$11.72

400

Legion Red, Front Bumper

705211529

$342.51

450

Can-Am Red, Front Tow Hook

705211623

$26.84

451

Torx Screw M8 X 30

250000886

$2.00

452

Hex. Elastic Flange Nut M8

233281416

$1.43

500

Rear Chassis Reinforcement

705207753

$30.57

510

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

600

Voltage Regulator Support

710009484

Unavailable

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

610

Spacer

705208203

$17.13

615

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

1510

Hex. Flange Screw M10 X 35

250000855

$1.67

1520

Hex. Flange Elastic Nut M10

233201436

$2.00

1530

Flange Elastic Nut M10

233201466

$3.01

1540

Hex. Flange Screw M10 X 6

207606046

$3.88

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

1570

Torx Truss M6X14

250000789

$5.06
