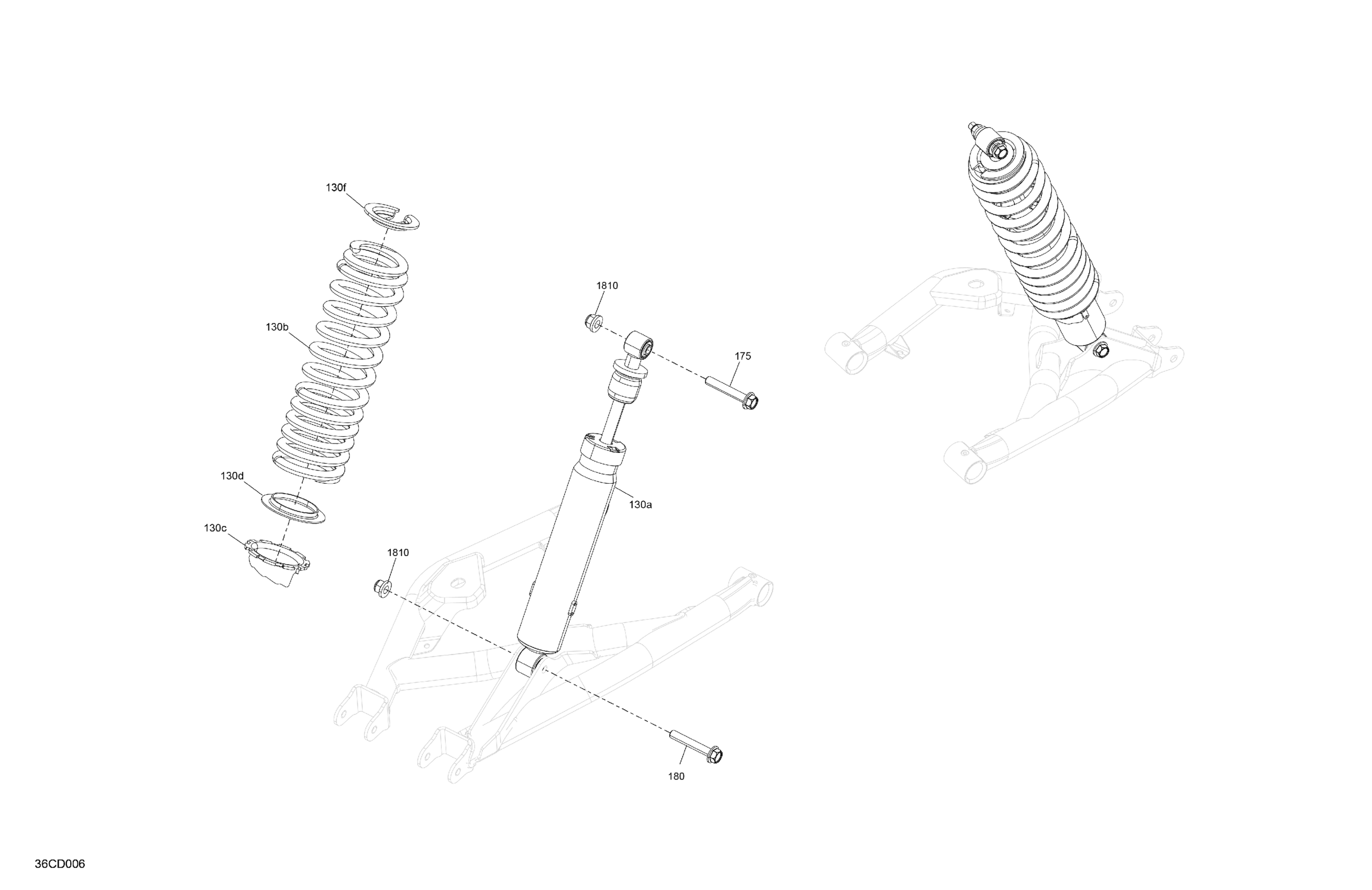

Can-Am CE - Traxter HD10 - XMR - 8YRN - Hyper Silver - 67" Width, 2024 Suspension - Rear Shocks Diagram

#

Description
Price

130a

Rear Shock Absorber

706003519

$189.20

130b

Legion Red, Compression Spring

706005458

$143.05

130c

Adjustment Ring

706000910

$14.37

130d

Protector Ring | STD, XT

706000911

$7.60

130f

Spring Cup

706001894

$14.75

175

Hex. Flange Screw M10 X 6

207606046

$3.38

180

Hex. Flange Screw M10 X 6

207606046

$3.38

1810

Hex. Flange Elastic Nut M10

233201436

$1.74
