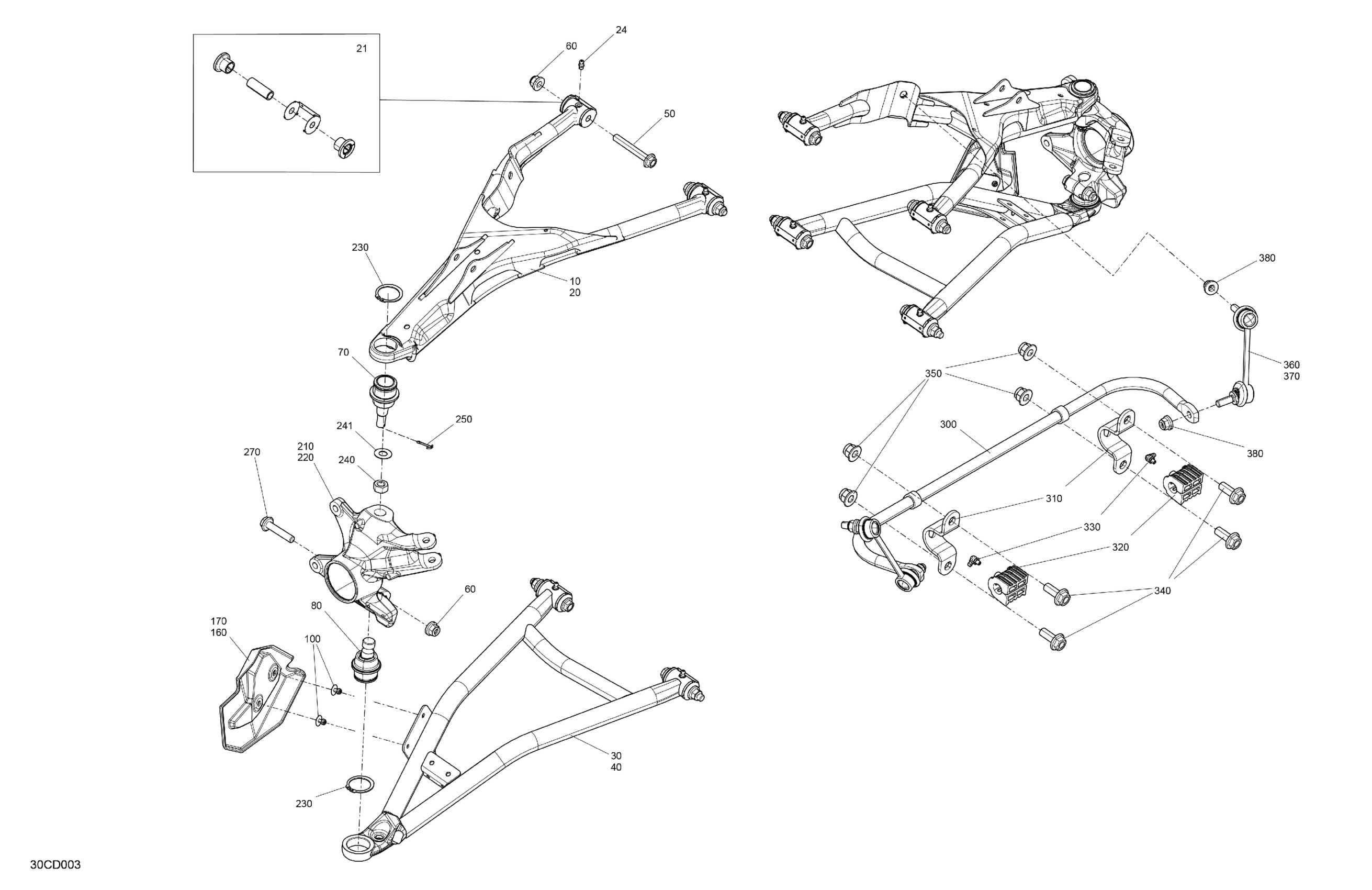

Can-Am CE - Traxter HD10 - XMR - 8YRN - Hyper Silver - 67" Width, 2024 Suspension - Front Components Diagram

Legion Red, LH Upper Suspension Arm Ass'y With Balljoint This part replaces 706205661.

715010633

$244.58

Legion Red, RH Upper Suspension Arm Ass'y With Balljoint This part replaces 706205662.

715010636

$244.58

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

Grease Fitting

408200700

$2.80

Legion Red, LH Lower Suspension Arm Ass'y With Balljoint This part replaces 706205663.

715010626

$244.58

Legion Red, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706205664.

715010627

$244.58

Hex. Flange Screw M10 X 70

207607046

$2.91

Hex. Flange Elastic Nut M10

233201436

$1.74

Ball Joint

706203084

$35.35

Ball Joint

706202045

$35.35

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

RH CV joint Guard

706202135

$9.23

LH CV joint Guard

706202134

$9.23

LH Knuckle

706205517

$198.43

RH Knuckle

706205047

$198.43

Circlip

293370035

$2.55

Hex Nut M12

250100239

$1.64

Hardened Washer

706200281

$2.34

Cotter Pin

211400017

$0.25

Hex. Flange Screw M10 X 55

207605546

$1.74

Stabilizer Bar Ass'y

706204869

$96.89

Clamp

706203437

$13.83

Stabilizer Bar Bushing

706205240

$11.98

Grease Fitting 90°

293550056

$1.37

Hex. Flange Screw DIN.6921

250000951

$5.47

Elastic Flange Nut M12

250001195

$2.15

LH Link Stabilizer Bar

706204803

$41.51

RH Link Stabilizer Bar

706204804

$41.51

Elastic Flange Nut M12

250001195

$2.15
