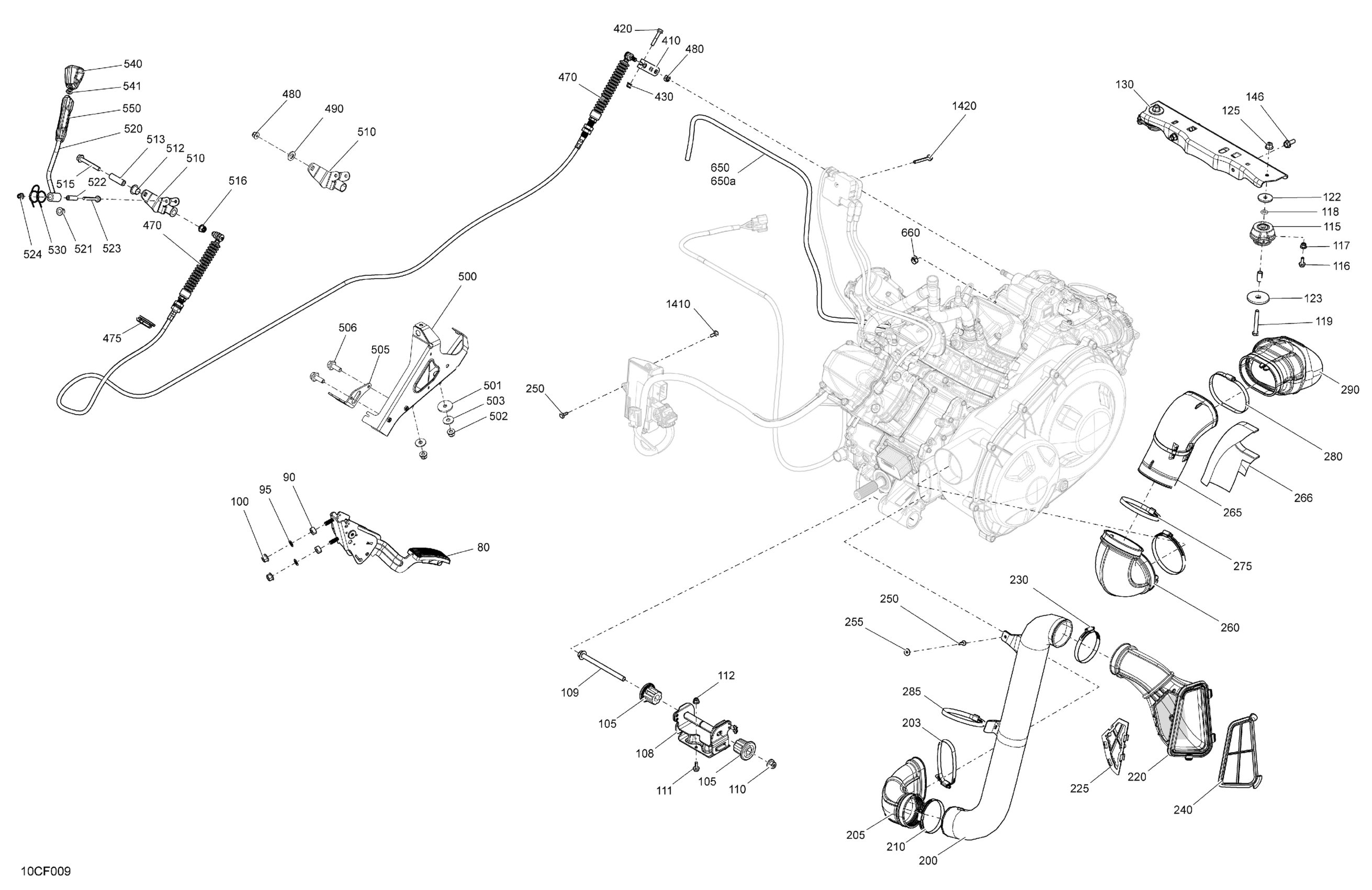

Can-Am CE - Traxter 6X6 - HD10 - DPS - 9VTC - Compass Green - 64" Width, 2026 Engine - System Diagram

#

Description
Price

80

Accelerator Pedal

707003503

$265.64

90

Bushing

707000848

$1.04

95

Push Nut

250100031

$6.66

100

Hex. Flange Nut M8

233081416

$1.87

105

Vibration Damper

707001169

$42.99

108

Vibration Damper

707003563

$138.03

109

Hex. Flange Screw M10 X 135

230603546

$6.99

110

Hex. Flange Elastic Nut M10

233201436

$2.00

111

Hex. Flange Screw M6 X 20

207662054

$0.96

112

Hex. Flange Elastic Nut M6

233261494

$1.45

115

Rubber Mount

707002590

$54.45

116

Hex. Flange Screw M6 X 20

207662044

$1.91

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

118

O-Ring

293300215

$0.84

119

Hex. Flange Screw, M8 X 65

207686544

$11.18

122

Flat Washer M8

250200158

$2.00

123

Flat Washer M8

250200180

$2.06

125

Hex. Flange Nut M8

233081416

$1.87

130

Rear Link Bracket

707002290

$27.58

146

Hex Flange Screw M8 X 20

207582046

$1.43

200

Front CVT Cooling Duct

706600326

$55.19

203

Norma Clamp

514052924

$12.15

205

Flexible Adapter

706600249

$17.88

210

Norma Clamp

293650091

$4.46

220

Adapter

706600422

$42.51

225

CVT Filter

706600423

$29.82

230

Norma Clamp

293650091

$4.46

240

CVT Filter

706600419

$17.88

250

Torx Screw Truss Head K50X20 T20

250000760

$2.00

255

Washer M5

250200025

$0.70

260

Flexible Adaptor

706600108

$22.36

265

Duct Out

706600426

$29.82

266

Heat Shield

706600133

$2.85

275

Norma Gear Clamp

514052983

$14.90

280

Norma Gear Clamp

514052983

$14.90

285

Norma Gear Clamp

514052983

$14.90

290

Air Deflector

706600125

$24.60

410

Lever

707000911

$18.63

420

Hex. Flange Screw M6 X 35

207663544

$0.85

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

470

Shifting Cable

707002622

$63.40

475

Grommet

293720109

$7.81

480

Hex. Elastic Stop Nut M8

232581414

$0.54

490

Flat Washer 10 mm

234001410

$1.12

500

Lever Support

707003601

$35.79

501

Flat Washer M8

250200158

$2.00

502

Hex. Flange Elastic Nut M8

233281414

$1.31

503

Flat Washer 8 mm

234082410

$1.27

505

Cable Support

707002038

$14.43

506

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

510

Lower Shifter Arm

707002268

$13.99

512

Venturi Bushing

293900001

$7.04

513

Bushing

707003445

$10.30

515

Hex. Flange Screw M8 x 60

207686044

$2.94

516

Hex. Flange Elastic Nut M8

233281414

$1.31

520

Shifter Arm

707002374

$22.36

521

Flanged Bushing

707000869

$2.13

522

Bushing

707001376

$4.09

523

Hex. Flange Screw M6 X 50

207665044

$3.88

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$7.72

541

Hex. Jam Nut M8

232180491

$7.09

550

Shifting Arm Cover

707001899

$11.33

650

Hose 6.35MM ID

219704534

$23.10

650a

Hose 6.35MM ID

219704534

$23.10

660

Oetiker Clamp

293650042

$1.61

1410

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

1420

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.00
