04- Drive - Rear - Common Parts

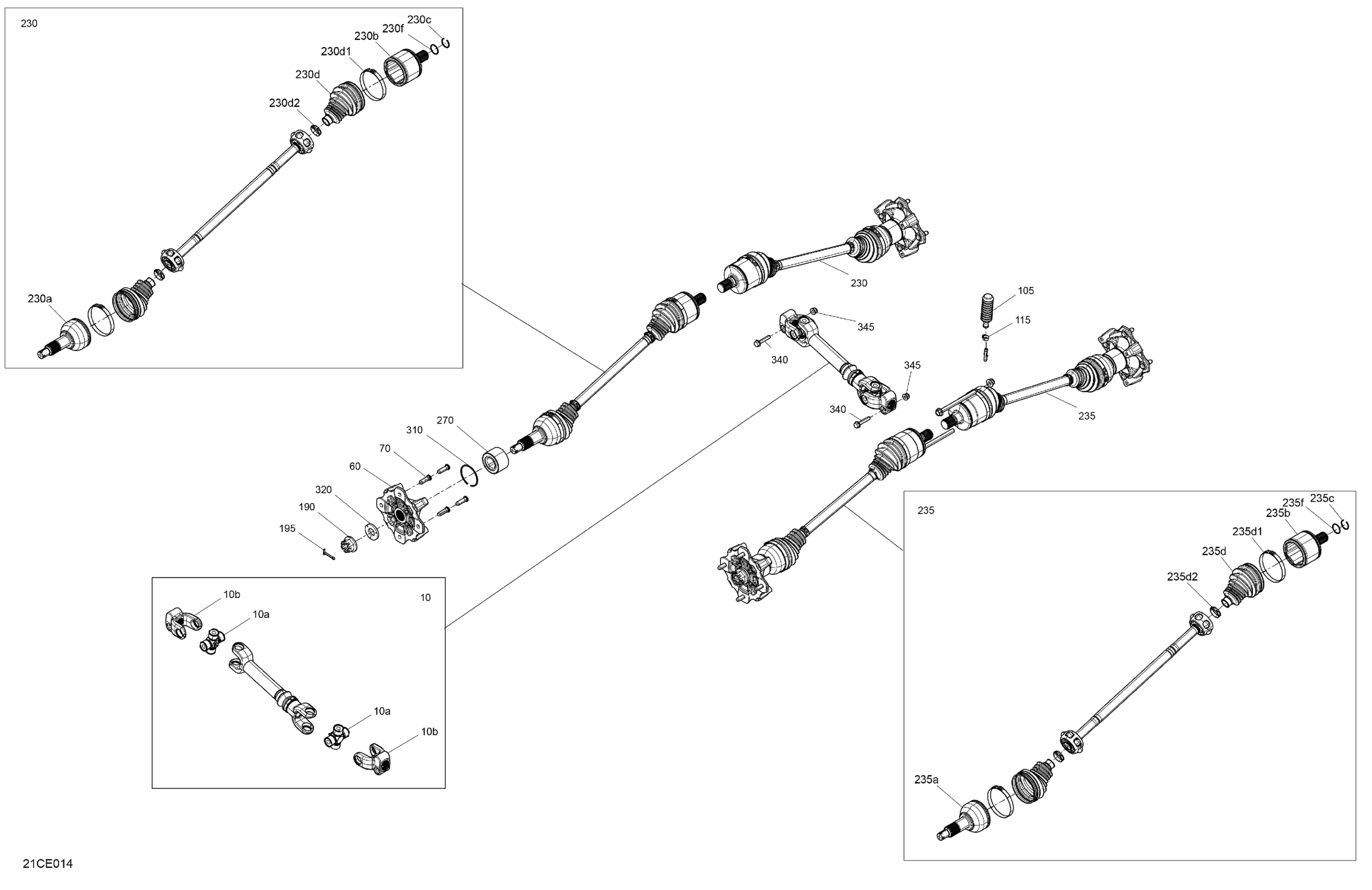

Can-Am CE - Traxter 6X6 - HD10 - DPS - 9VSN - Compass Green - 64" Width - 2025 04- Drive - Rear - Common Parts Diagram
#
Description
Price
10
Drive Axle Ass'y | Includes 10 to 10b
705502784
Unavailable
10a
U-joint (universal joint) Kit
715900648
Unavailable
10b
Yoke
715900645
Unavailable
60
Wheel Hub
705502338
Unavailable
70
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
105
Rubber Bellow | 4X4
705400552
Unavailable
115
Oetiker Clamp
293650042
Unavailable
190
Castle Nut M20
250100193
Unavailable
195
Cotter Pin
250400084
Unavailable
230
CV Joint | Includes 230 to 230f
705502831
Unavailable
230a
JOINT_CV EXT - Call your local BRP dealership
715900429
Unavailable
230b
Plunging Joint
715900444
Unavailable
230c
Circlip
705501781
Unavailable
230d
Boot Kit
705501864
Unavailable
230d1
Oetiker Clamp, 82.1 mm
715900241
Unavailable
230d2
Oetiker Clamp, 27.3 mm
715900242
Unavailable
230f
O-Ring
715900579
Unavailable
235
CV Joint | Includes 230 to 230f
705502831
Unavailable
235a
JOINT_CV EXT - Call your local BRP dealership
715900429
Unavailable
235b
Plunging Joint
715900444
Unavailable
235c
Circlip
705501781
Unavailable
235d
Boot Kit
705501864
Unavailable
235d1
Oetiker Clamp, 82.1 mm
715900241
Unavailable
235d2
Oetiker Clamp, 27.3 mm
715900242
Unavailable
235f
O-Ring
715900579
Unavailable
270
Ball Bearing
293350150
Unavailable
310
Circlip
293370019
Unavailable
320
Conical Spring Washer M20
250200170
Unavailable
340
Hex. Flange Screw M8 X 42
250001050
Unavailable
345
Hex. Elastic Flange Nut M8
233281416
Unavailable
