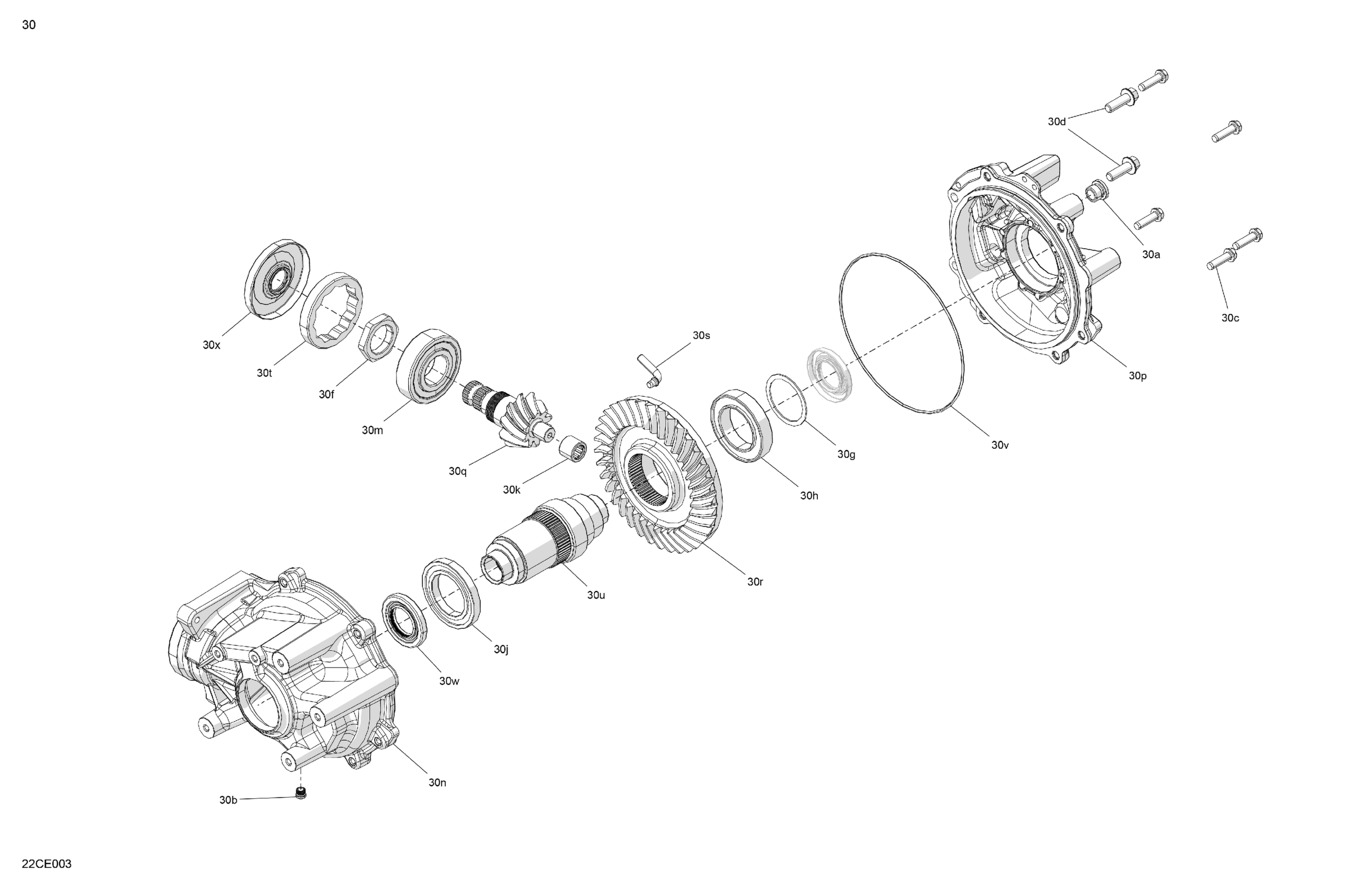

Can-Am CE - Traxter 6X6 - HD10 - DPS - 9VSN - Compass Green - 64" Width - 2025 Drive - Final Drive Unit Diagram

Description

Price

Rear Differential Ass'y | Includes 30 to 30x

705503731

$1,451.46

30a

Fill Level Plug

705501889

$18.63

30b

Fill Level Plug M10

715900563

$25.34

30c

Bolt

705501886

$6.30

30d

Custom Hex Screw Flange Head M10 x 30

715900799

Unavailable

30f

Nut

715900737

$30.57

30g

Shim

715900740

$33.55

30h

Ball Bearing

715900741

$40.27

30j

Ball Bearing

715900742

$26.09

30k

Needle Bearing

705501874

$66.39

30m

Ball Bearing

715900782

$63.40

30n

Case

715900839

$290.27

30p

Cover

715900841

$184.30

30q

Pinion, 10T Spiral

715900746

$121.61

30r

Ring Gear 36T Spiral

715900747

$266.39

30s

Vent Valve

705401935

$13.43

30t

Nut

705501882

$34.30

30u

Hub

715900748

$120.12

30v

O-Ring

715900749

$10.21

30w

Oil Seal

715900531

$24.60

30x

Seal

715900751

$39.52
