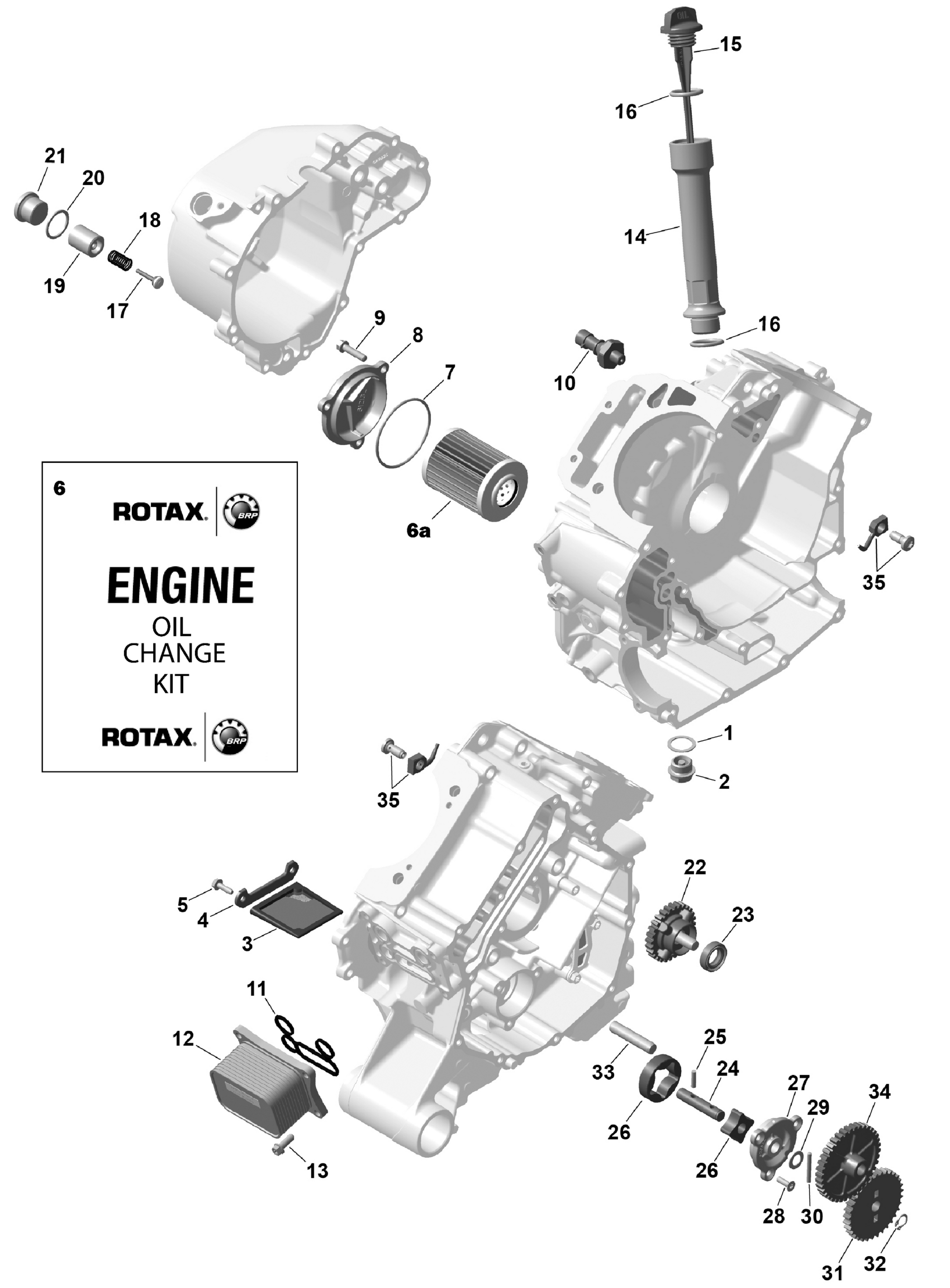

Can-Am CE - Traxter 6X6 - HD10 - DPS - 9VSN - Compass Green - 64" Width - 2025 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Crush Washer

420552280

$3.70

2

Drain Plug M18 X 1.5

420840278

$23.99

3

Oil Sieve

420256322

$28.49

4

Cover Sieve

420612070

$4.14

5

Taptite Screw M5 X 16

420941926

$0.47

6

CAN-AM Oil Change Kit 5W40 500 CC +

9779488

$67.99

6a

Oil Filter

420256188

$13.77

7

O-Ring

420230923

$3.17

8

Oil Filter cover

420612135

$11.63

9

Torx Flange Screw M6 X 25

420440234

$3.06

10

Oil Pressure Switch

420256915

$40.99

11

Oil Seal

420430325

$8.85

12

Radiator

420890181

$95.49

13

Torx Flange Screw M6 X 16

420440164

$2.19

14

Oil Lever Tube

420856925

$11.12

15

Oil Dipstick

420856810

$4.14

16

O-Ring

420631641

$1.01

17

Pressure Relief Valve

420656370

$19.19

18

Compression Spring

420939485

$12.99

19

Housing

420256487

$7.41

20

Gasket Ring

420650465

$13.16

21

Plug Screw

420640271

$13.77

22

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$88.99

23

Oil Seal

420430555

$19.99

24

Oil Pump Shaft

420237059

$29.49

25

Needle Pin

420232732

$1.90

26

Oil Pump Rotor

420256348

$77.99

27

Oil Pump Cover

420210646

$48.49

28

Torx Head Screw M5 X 16

420640823

$1.90

29

Thrust Washer

420827590

$4.01

30

Needle Pin

420232432

$4.44

31

Oil Pump Gear, 33 Teeth

420434320

$13.77

32

Snap Ring

420245330

$1.79

33

Location Pin 10 M6x50

420229302

$3.17

34

Idle Gear, 38 Teeth

420434300

$13.77

35

Oil Nozzle

420656048

$37.99
