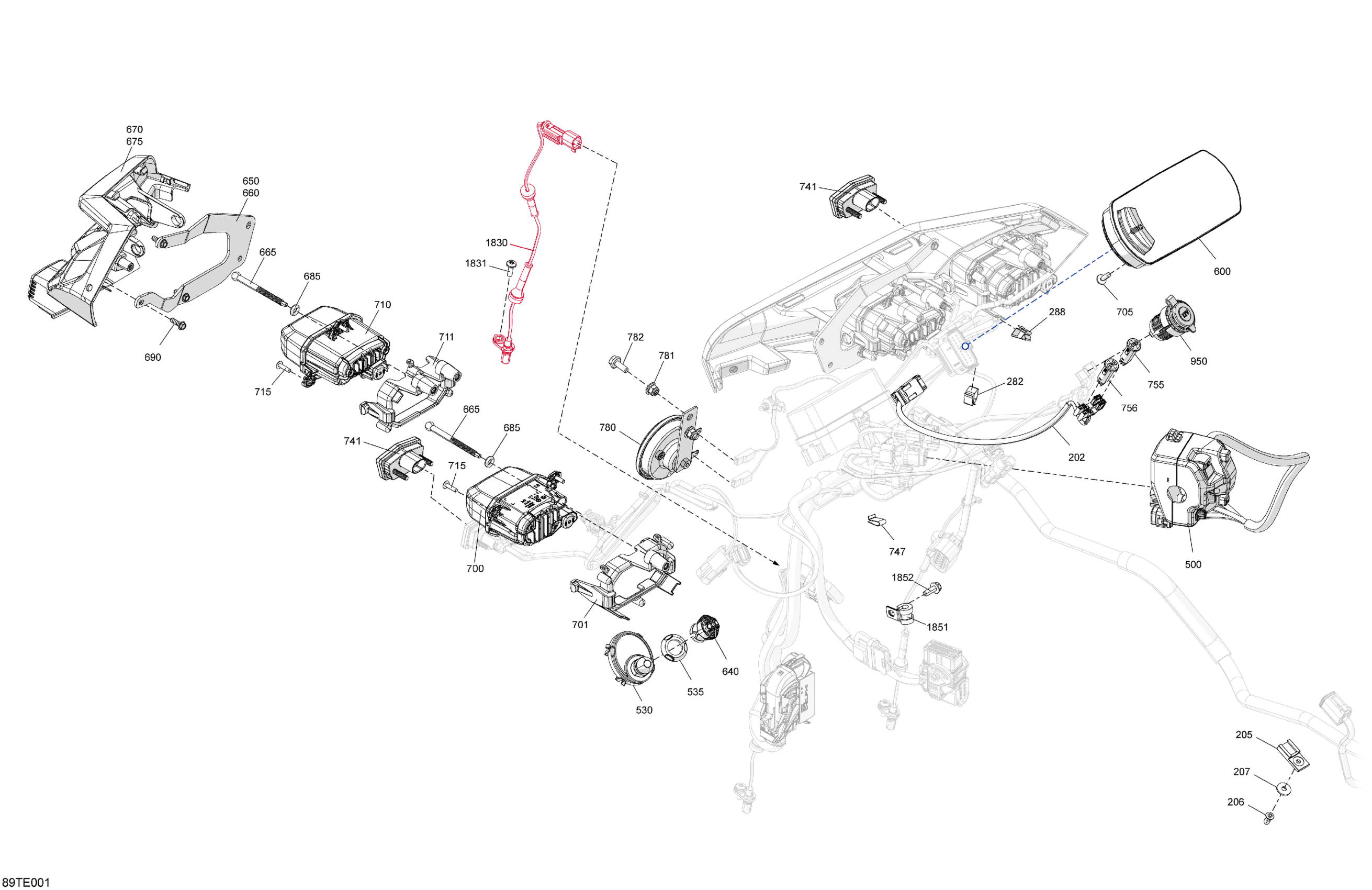

Can-Am CE - RENEGADE - 4X4 - XXC - 650 EFI - 5RSA - Catalyst Gray - 2025 Electric - Front Section Diagram

Description

Price

202

Tell Tale Wiring Harness

710007825

$22.36

205

Clip

270000141

$9.57

206

Pop Rivet 3/16 X ,551

293150301

$0.73

207

Washer | DS 650 X

391301600

$0.46

282

Clip

710010204

$1.40

288

Clip

710010204

$1.40

500

LH Front Multifunction Switch

710006945

$228.33

530

Terminal DESS One Wire

515179305

$69.37

535

Specialized Nut

278004274

$3.12

600

Multifunction Compact Gauge

710008298

$347.73

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

650

LH Front Headlight Support

710008461

$35.04

660

RH Front Headlight Support

710008462

$35.04

665

Ajustment Screw

710005837

$5.90

670

Trim_Headlight Fl

705016610

$46.24

675

Trim_Headlight Fr

705016611

$46.24

685

O-Ring

293300192

$3.81

690

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

700

Low Beam Light

710008088

$152.21

701

Exterior Headlight Support

710008396

$23.85

705

Torx Screw K50 X 16

250000720

$1.60

710

HIgh Beam Light

710006910

$152.21

711

Interior Headlight Support

710008394

$8.15

715

Torx-Truss Pt K40 X 16

250000759

$2.00

741

Amber Light Turn Signal

710007217

$16.39

747

Clip

414479100

$1.81

748

Hex. Flange Elastic Nut M8

233281414

$1.31

749

Hex. Flange Screw M8 X 20

207682044

$1.06

755

Trailer Turn Signal Pilot Lamp

710010098

$7.64

756

Pilot Light Marker

710010099

$7.64

780

Horn

710004791

$36.54

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

782

Hex. Flange Screw M6 X 16

207661644

$0.70

950

DC Outlet

710001248

$35.79

1830

Speed Sensor

710006981

$75.34

1831

Torx Screw K50 X 16

250000720

$1.60

1851

Clamp

293650256

$5.00

1852

Hex. Flange Screw M6 X 16

210261640

$2.00
