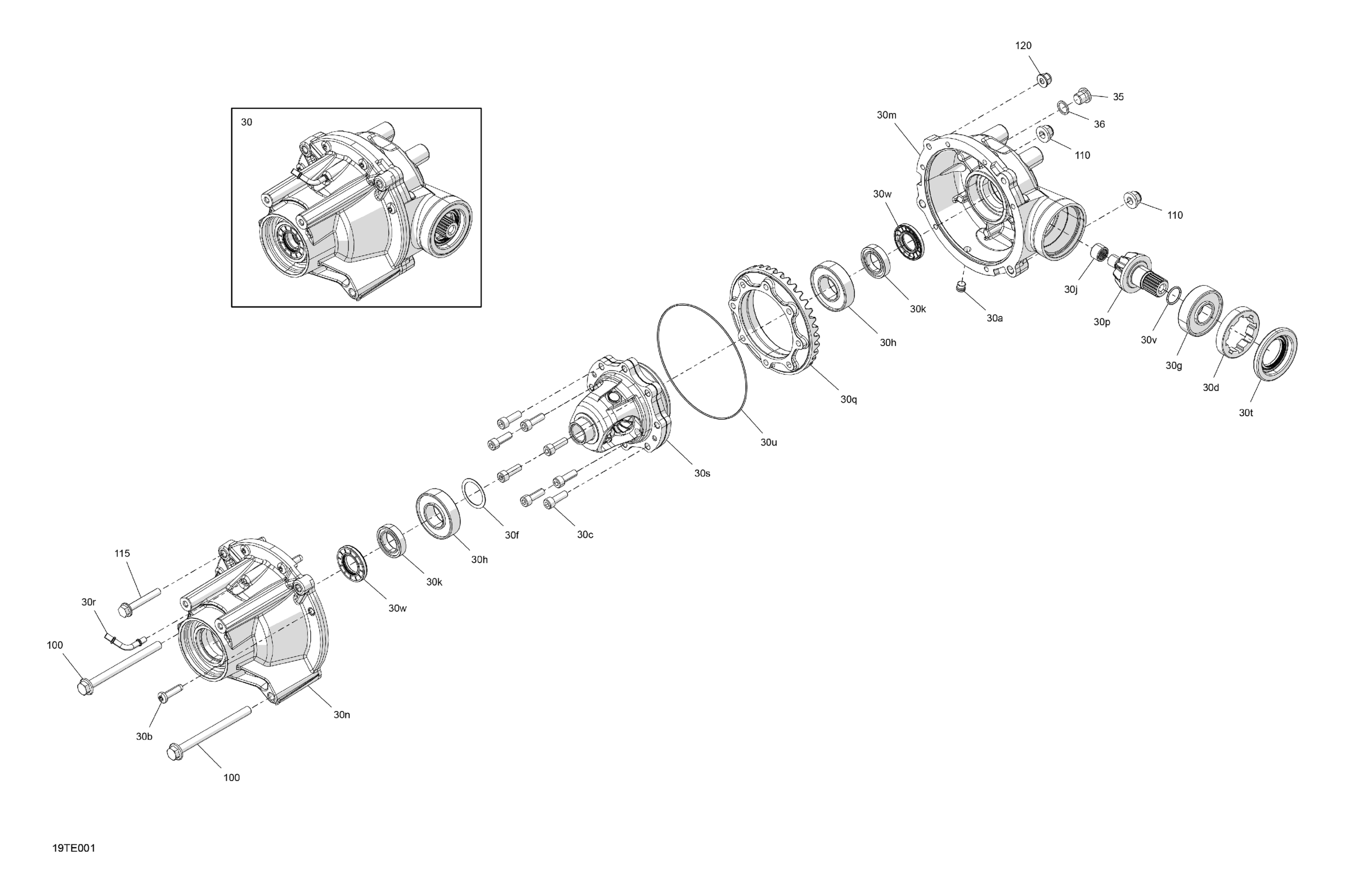

Can-Am CE - RENEGADE - 4X4 - XXC - 650 EFI - 5RSA - Catalyst Gray - 2025 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential | Includes 30 to 30y

705402020

$939.99

30a

Drain Plug | After May 30, 2014

705501885

$12.68

30b

Screw | 4X4

705401601

$9.29

30c

Screw | After May 30, 2014

705401602

$6.45

30d

Nut | 4X4

705401603

$36.89

30f

Shim | 4X4

705401604

$55.35

30g

Ball Bearing | After May 30, 2014

705401605

$30.74

30h

Ball Bearing | 4X4

705401606

$49.20

30j

Ball Bearing | After May 30, 2014

705402848

$46.12

30k

Ball Bearing | After May 30, 2014

705401608

$49.20

30m

Front Pinion Cover | After May 30, 2014

705401792

$143.05

30n

Front Cover | After May 30, 2014

705401610

$143.05

30p

Pinion 10 Teeth | After May 30, 2014

705402841

$207.66

30q

Gear 36 Teeth

705402842

$383.05

30r

Vent Valve | After May 30, 2014

705401613

$14.37

30s

Differential

705402128

$999.99

30t

Oil Seal | After May 30, 2014

705401615

$18.43

30u

Seal | After May 30, 2014

705401616

$13.83

30v

O'Ring | After May 30, 2014

705401617

$7.37

30w

Gasket | 4X4

705401618

$17.66

30x

Shim

705401769

$6.75

30y

Shim

705401770

$6.45

Fill Level Plug | 4X4

705500504

$7.61

Copper Washer | 4X4

705500506

$0.36

100

Hex. Flange Screw M10 X 125

230602546

$6.08

110

Hex. Flange Elastic Nut M10

233201436

$1.74

115

Hex. Flange Screw M8 X 55

207685544

$4.41

120

Hex. Flange Elastic Nut M8

233281414

$1.14
