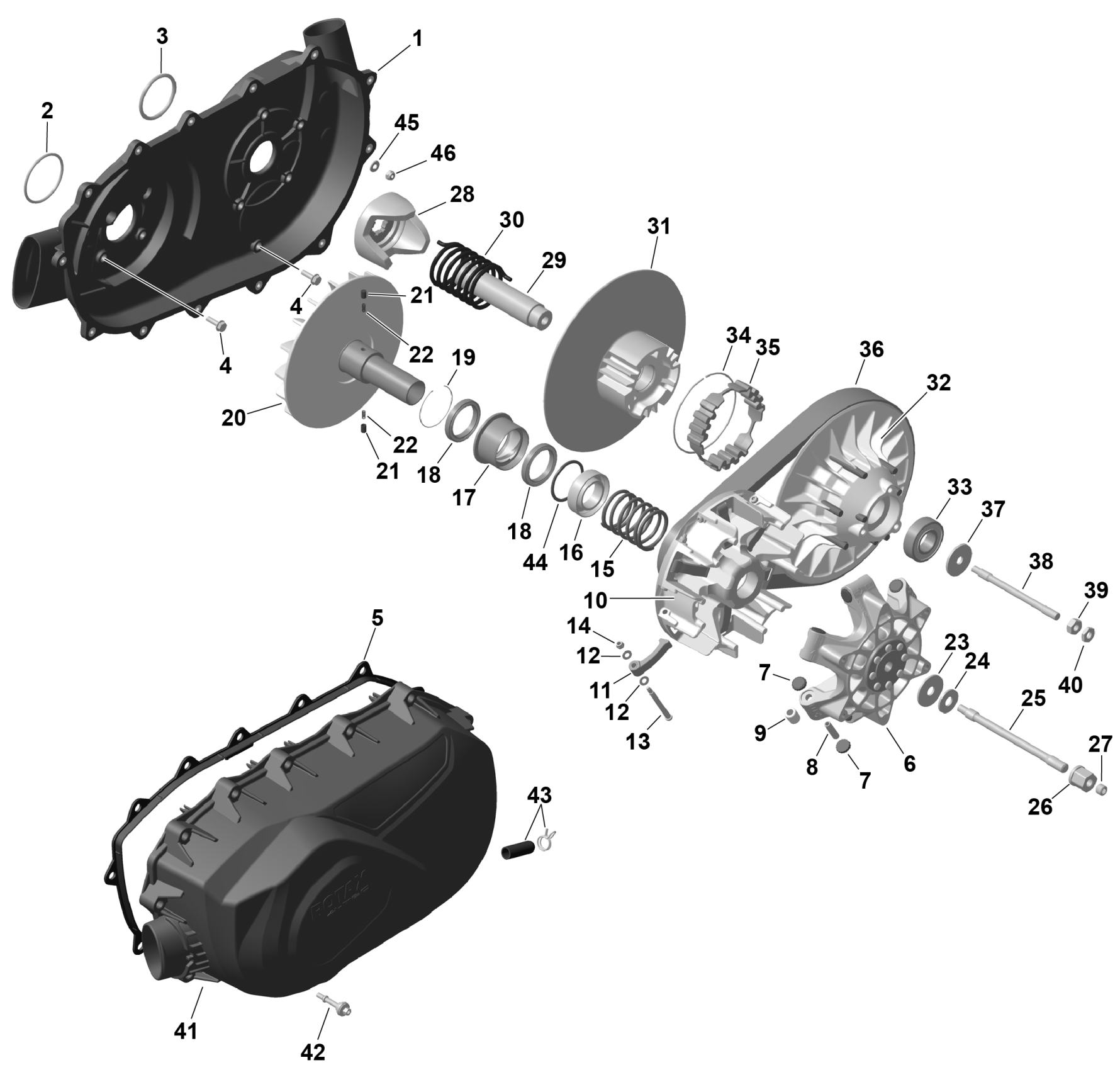

Can-Am CE - RENEGADE - 4X4 - XMR - 1000R EFI - 5USD - Hyper Silver - 2025 ROTAX - CVT Diagram

#

Description
Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Gasket

420430126

$41.49

6

Governor Cup

420280664

$369.99

7

Slider Shoe Set

420281296

$65.49

8

Roller Axle

417223257

$6.99

9

Roller

417223767

$11.59

10

Outer Haft

420280467

$329.99

11

Lever Set Ass'y | Includes 11a to 14

420248682

$174.99

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Compression Spring, Drive Pulley

420238617

$29.49

16

Seat Spring

420627578

$35.99

17

Drive Pulley Clutch

420257195

$114.99

18

Ball Bearing

420632377

$49.99

19

Retaining Ring

420245951

$5.31

20

Inner Half

420280374

$339.99

21

Spring Sleeve

420229577

$18.49

22

Spring

420239134

$3.06

23

Washer 40 MM

420427061

$24.99

24

Washer 30 MM

420427054

$26.49

25

Stud Screw 12 X 172

420441801

$26.99

26

Socket Set Screw

420242381

$20.99

27

Nut

420441811

$14.22

28

Cam

420280701

$153.49

29

Driven Pulley Shaft

420220914

$129.99

30

Compression Spring

420638040

$61.99

31

Inner Half Ass'y

420280786

$308.49

32

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

33

Ball Bearing

420932421

$28.49

34

Retaining Ring

420245911

$5.31

35

Torque Gear

420660124

$23.49

36

V-Belt

422280366

$179.99

37

Thrust Washer

420627594

$13.49

38

Stud Screw M10 X 136

420441900

$25.99

39

Hexagonal Nut M10

420242098

$2.51

40

Hexagonal Nut M10

420242403

$1.90

41

Variator Cover

420612316

$169.49

42

Hex Screw M6 X 30

420440568

$8.58

43

Drain Plug Kit

707001179

$9.63

44

Friction Washer

420460430

$13.99

45

Flat Washer

224061121

$0.53

46

Lock Nut

420842041

$0.09
