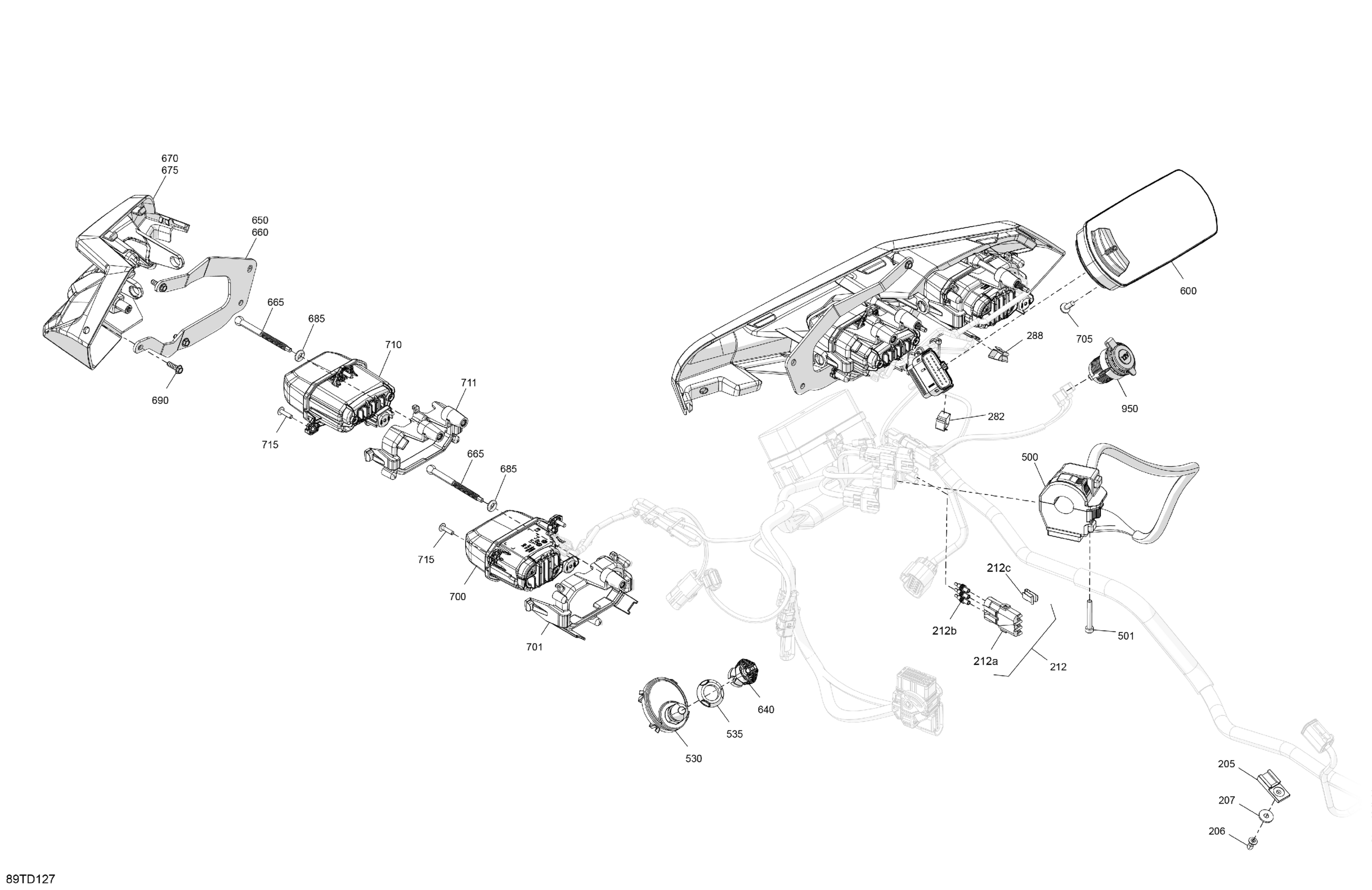

Can-Am CE - Renegade 1000R EFI 4X4 - 5VRD - X XC Package - Catalyst Gray, 2024 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

212b

Wire Seal

278000216

$2.55

212c

Clip

710000992

$4.00

282

Clip

710010204

$1.45

288

Clip

710010204

$1.45

500

Switch Handle

710006134

$69.20

501

Socket Head Screw M5 X 35

205053588

$1.56

530

Terminal DESS One Wire

515179305

$60.42

535

Specialized Nut

278004274

$2.72

600

Multifunction Compact Gauge

710008298

$364.58

640

Grey, Can-Am DESS Key

515179384

$55.35

650

LH Front Headlight Support

710008461

$36.89

660

RH Front Headlight Support

710008462

$36.89

665

Ajustment Screw

710005837

$6.45

670

Trim_Headlight Fl

705016529

$47.66

675

RH Front Headlight Trim

705016532

$61.51

685

O-Ring

293300192

$3.85

690

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

700

Low Beam Light

710008088

$156.89

701

Exterior Headlight Support

710008396

$27.66

705

Torx Screw K50 X 16

250000720

$1.39

710

HIgh Beam Light

710006910

$156.89

711

Interior Headlight Support

710008394

$9.22

715

Torx-Truss Pt K40 X 16

250000759

$1.74

950

DC Outlet

710001248

$31.17
