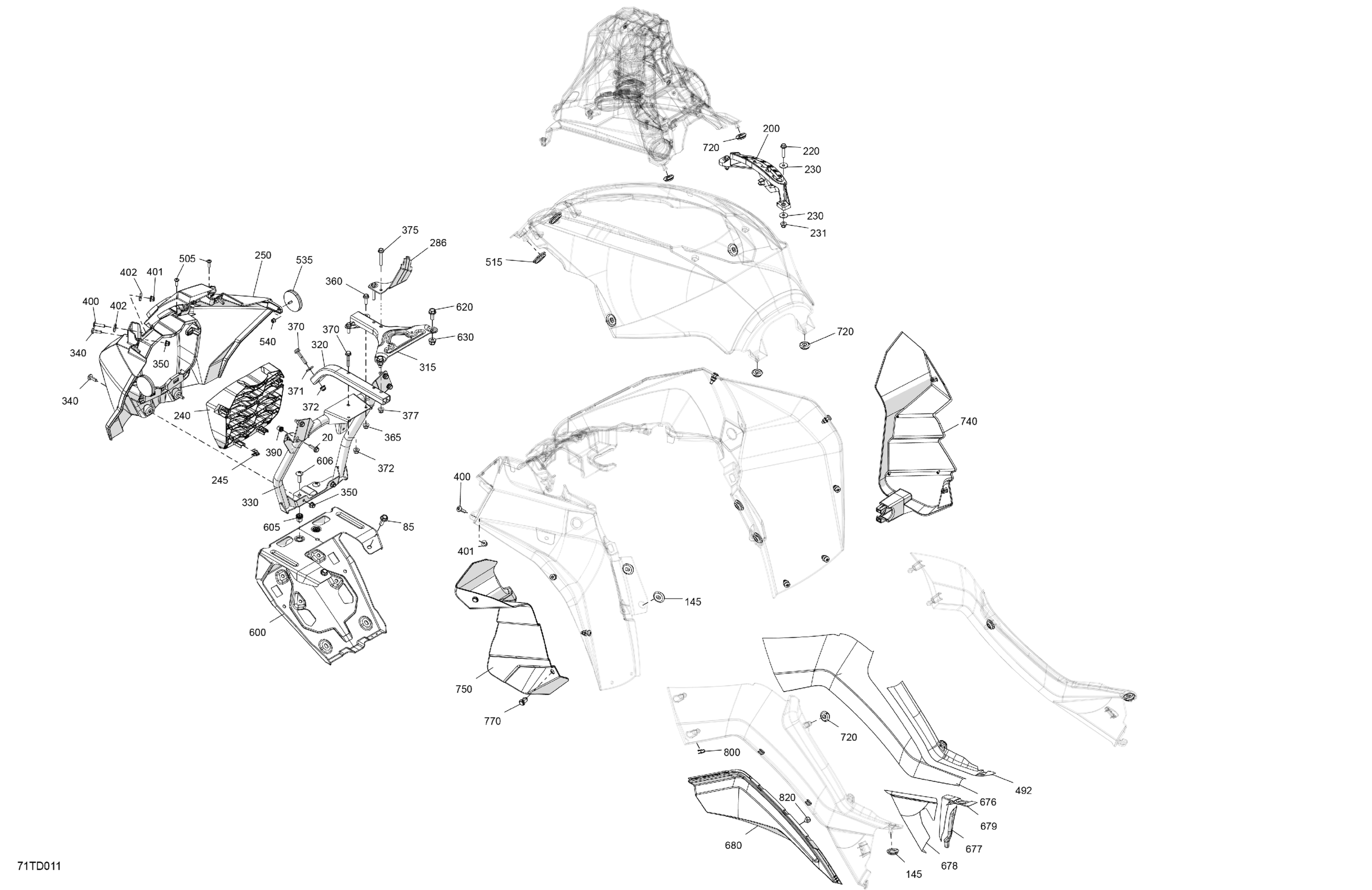

Can-Am CE - Renegade 1000R EFI 4X4 - 4FRD - X MR Package - Hyper Silver, 2024 Body - Front Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

145

Oval Washer

705000321

$4.64

200

Lever Indicator | 1000

705004416

$16.89

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

230

Flat Washer

224061201

$1.11

231

Flange Elastic Nut M6

233261434

$3.61

240

Air Inlet Grille

705016533

$24.58

245

Clip

517306478

$1.37

250

Front Fascia

705016535

$42.28

286

fuse Box Support

705018076

$33.05

315

Bracket

705003599

$22.28

320

Upper Sectional Bent Tube

705016534

$106.12

330

Front Fascia Support

705017182

$133.82

340

Torx Screw M6 X 20

250000712

$1.74

350

Flange Elastic Nut M6

233261434

$3.61

360

Hex. Flange Screw M6 X 20

207662054

$0.83

365

Flange Elastic Nut M6

233261434

$3.61

370

Hex. Flange Screw M6 X 35

207663544

$0.74

371

Flat Washer

224061201

$1.11

372

Flange Elastic Nut M6

233261434

$3.61

375

Hex. Flange Screw M6 X 40

207664044

$2.18

377

Flange Elastic Nut M6

233261434

$3.61

390

Insert

293450275

$9.89

400

Torx Screw M6 X 25

250000758

$1.74

401

Flange Elastic Nut M6

233261434

$3.61

402

Flat Washer

224061201

$1.11

492

Heat Shield

705010559

$8.98

505

Torx Screw K50 X 16

250000720

$1.39

515

Oblong Grommet

705003668

$4.54

535

Amber Reflector

705017809

$12.32

540

Flange Elastic Nut M5

233251434

$1.66

600

Front Skid Plate

705017338

$304.58

605

Insert Half Hex Body M8 x 1.25

293450307

$2.03

606

Torx Truss M8 X 25

250000874

$1.74

620

Hex. Flange Screw M8 X 20

207682044

$0.92

630

Hex. Flange Elastic Nut M8

233281434

$1.74

676

Reflective Sheet

705005620

$11.98

677

Heat Shield

705010557

$9.29

678

Reflective Sheet | Outlander

705005622

$3.98

679

Heat Shield

705010558

$9.29

680

Panel Extension

705004988

$14.75

720

Grommet

705003264

$3.43

740

RH Front Wheel Arch Protector

705017922

$24.58

750

LH Front Wheel Arch Protector

705017926

$24.58

770

Tuflok Plastic Rivet

293150230

$1.21

800

Clip

414479100

$1.86

820

Rubber Bumper

293830005

$5.33
