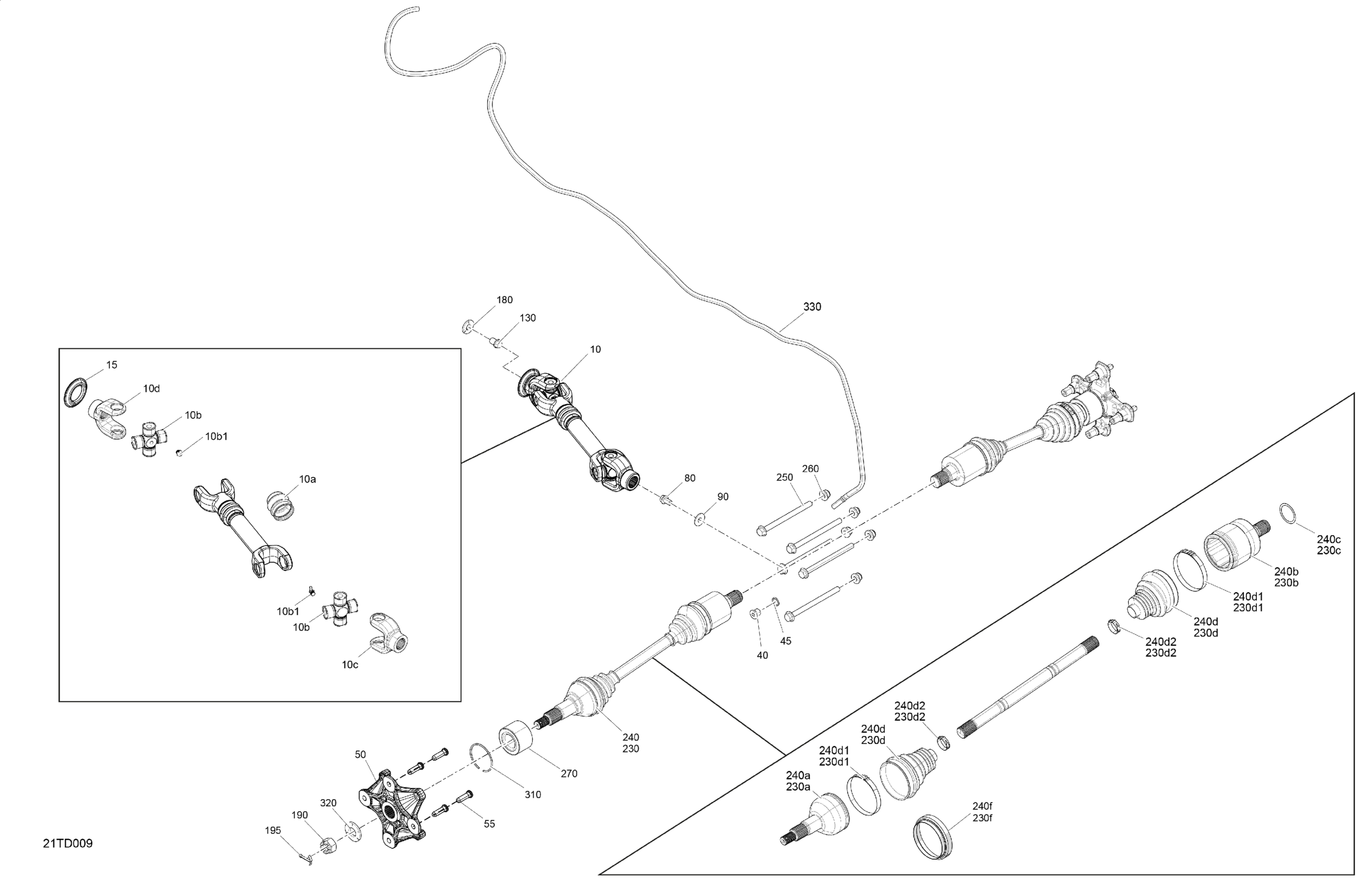

Can-Am CE - Renegade 1000R EFI 4X4 - 4FRD - X MR Package - Hyper Silver, 2024 Drive - Rear - Common Parts Diagram

Description

Price

Shaft Ass'y Kit | XMR

703500990

$226.12

10a

Rubber Boot

715900118

$13.83

10b

Universal Joint Ass'y | T3

703500846

$59.97

10b1

Grease Fitting | T3

715900295

$4.62

10c

Yoke

715900499

$23.05

10d

Joint | T3

715900436

$23.05

Protector

705501123

$7.37

Fill Level Plug | 4X4

705500504

$7.61

Copper Washer | 4X4

705500506

$0.36

Wheel Hub

705503257

$101.51

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Conical Spring Washer M12

250200005

$2.65

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH CV Joint | Package XMR

705503024

$232.74

230a

CV Joint

705501776

Unavailable

230b

PLUNGING JOINT - Call your local BRP dealership | Package XMR

705503031

Unavailable

230c

Circlip

705501781

$5.38

230d

Boot Kit

705501864

$41.51

230d1

Oetiker Clamp, 82.1 mm

715900241

$7.84

230d2

Oetiker Clamp, 27.3 mm

715900242

$7.84

230f

Joint Protector

705501842

$8.29

240

LH CV Joint | Package XMR

705503025

$232.74

240a

CV Joint

705501776

Unavailable

240b

PLUNGING JOINT - Call your local BRP dealership | Package XMR

705503031

Unavailable

240c

Circlip

705501781

$5.38

240d

Boot Kit

705501864

$41.51

240d1

Oetiker Clamp, 82.1 mm

715900241

$7.84

240d2

Oetiker Clamp, 27.3 mm

715900242

$7.84

240f

Joint Protector

705501842

$8.29

250

Hex. Flange Screw M10 X 135

250001041

$4.46

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$51.93

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28

330

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42
