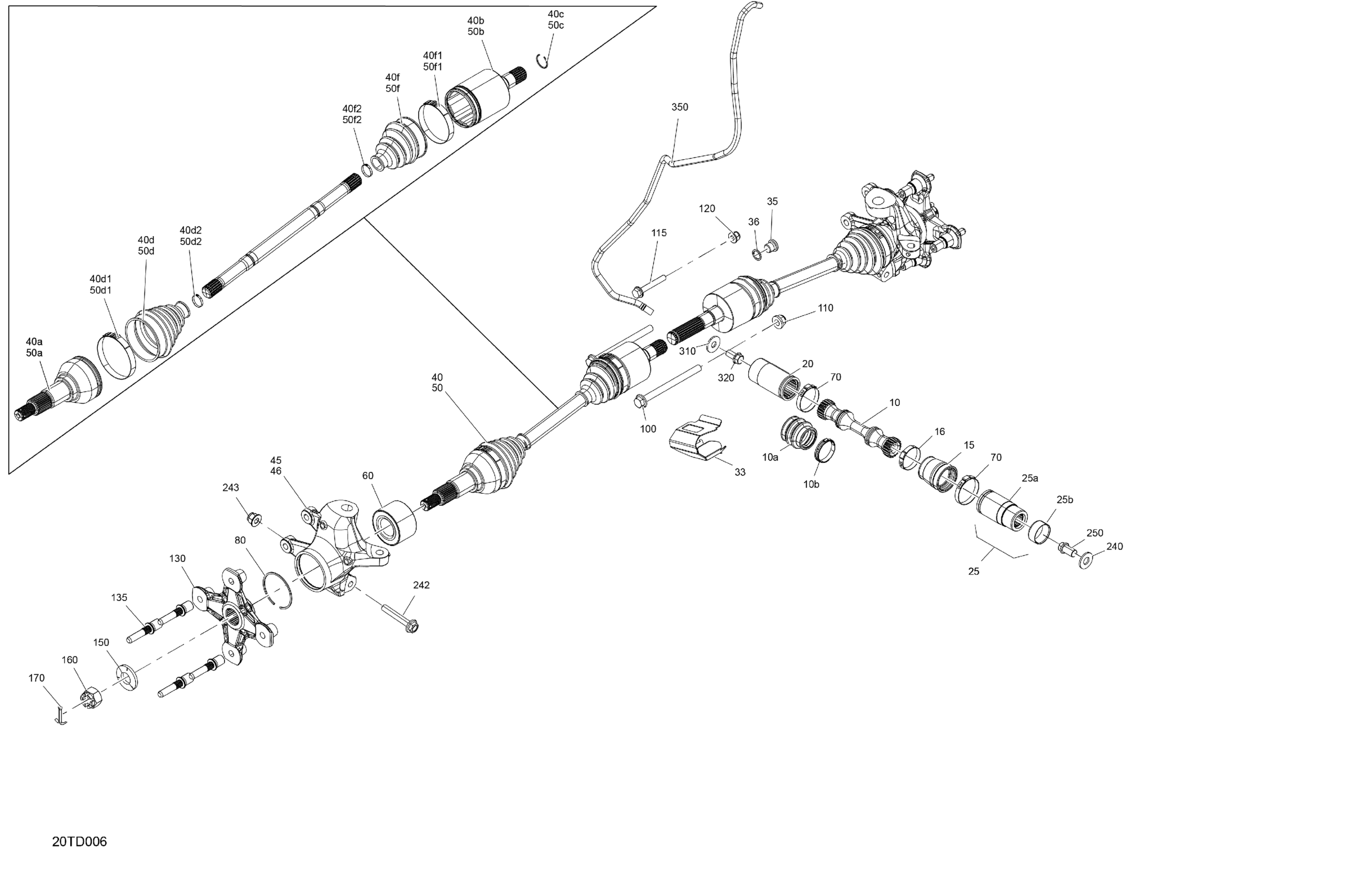

Can-Am CE - Renegade 1000R EFI 4X4 - 4FRD - X MR Package - Hyper Silver, 2024 Drive - Front - Common Parts Diagram

#

Description
Price

10

Propeller Shaft | Includes 1 to 2

705400913

$203.05

10a

Rubber Boot

715900118

$13.83

10b

Oetiker Gear Clamp 36.1MM

509000045

$3.55

15

Rubber Boot

705401093

$4.60

16

Oetiker Gear Clamp

293650199

$7.16

20

Coupling Sleeve

705401969

$27.66

25

Front Bushing Shaft Kit | 4X4

703500678

$104.58

25a

Not Available As Spare Parts

XXX

Unavailable

25b

Wear Ring | 4X4

705400036

$25.35

33

Deflector | Not shown

705402903

$17.66

35

Fill Level Plug | 4X4

705500504

$7.61

36

Copper Washer | 4X4

705500506

$0.36

40

RH CV Joint | Includes 40 to 40j

705402238

$261.24

40a

CV Joint

715900428

Unavailable

40b

RH Plunging CV Joint

715900395

$249.20

40c

Circlip Joint | Not shown

705401349

$5.38

40d

Boot Kit, Wheel Side

705401354

$41.51

40d1

Oetiker Clamp, Large

715900260

$7.84

40d2

Oetiker Clamp, Small

715900261

$4.39

40f

Boot Kit, Différential Side

705401355

$41.51

40f1

Oetiker Clamp, Small

715900261

$4.39

40f2

Oetiker Clamp, Large

715900262

$7.84

45

LH Knuckle

705403307

$175.35

46

RH Knuckle

705403308

$175.35

50

LH CV Joint | Includes 50 to 50j

705403009

$261.24

50a

CV Joint

705401407

$253.82

50b

LH Plunging Joint

705403010

$253.82

50c

Circlip Joint | Not shown

705401349

$5.38

50d

Boot Kit, Wheel Side

705401354

$41.51

50d1

Oetiker Clamp, Large

715900260

$7.84

50d2

Oetiker Clamp, Small

715900261

$4.39

50f

Boot Kit, Différential Side

705401355

$41.51

50f1

Oetiker Clamp, Small

715900261

$4.39

50f2

Oetiker Clamp, Large

715900262

$7.84

60

Ball Bearing

293350150

$51.93

70

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

80

Circlip

293370019

$4.98

100

Hex. Flange Screw M10 X 125

230602546

$6.08

110

Hex. Flange Elastic Nut M10

233201436

$1.74

115

Hex. Flange Screw M8 X 55

207685544

$4.41

120

Hex. Flange Elastic Nut M8

233281414

$1.14

130

Wheel Hub

705503257

$101.51

135

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

150

Conical Spring Washer M18

250200171

$5.28

160

Hex. Flange Castellated Nut M18

232291413

$2.82

170

Cotter Pin

250400071

$1.74

240

Flat Washer M12

250200102

$1.74

250

Hex Flange Screw M12 X 20

250001042

$1.56

310

Conical Spring Washer M12

250200167

$3.04

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

242

Hex. Flange Screw M10 X 60

207606044

$2.78

243

Hex. Flange Elastic Nut M10

233201434

$1.63
