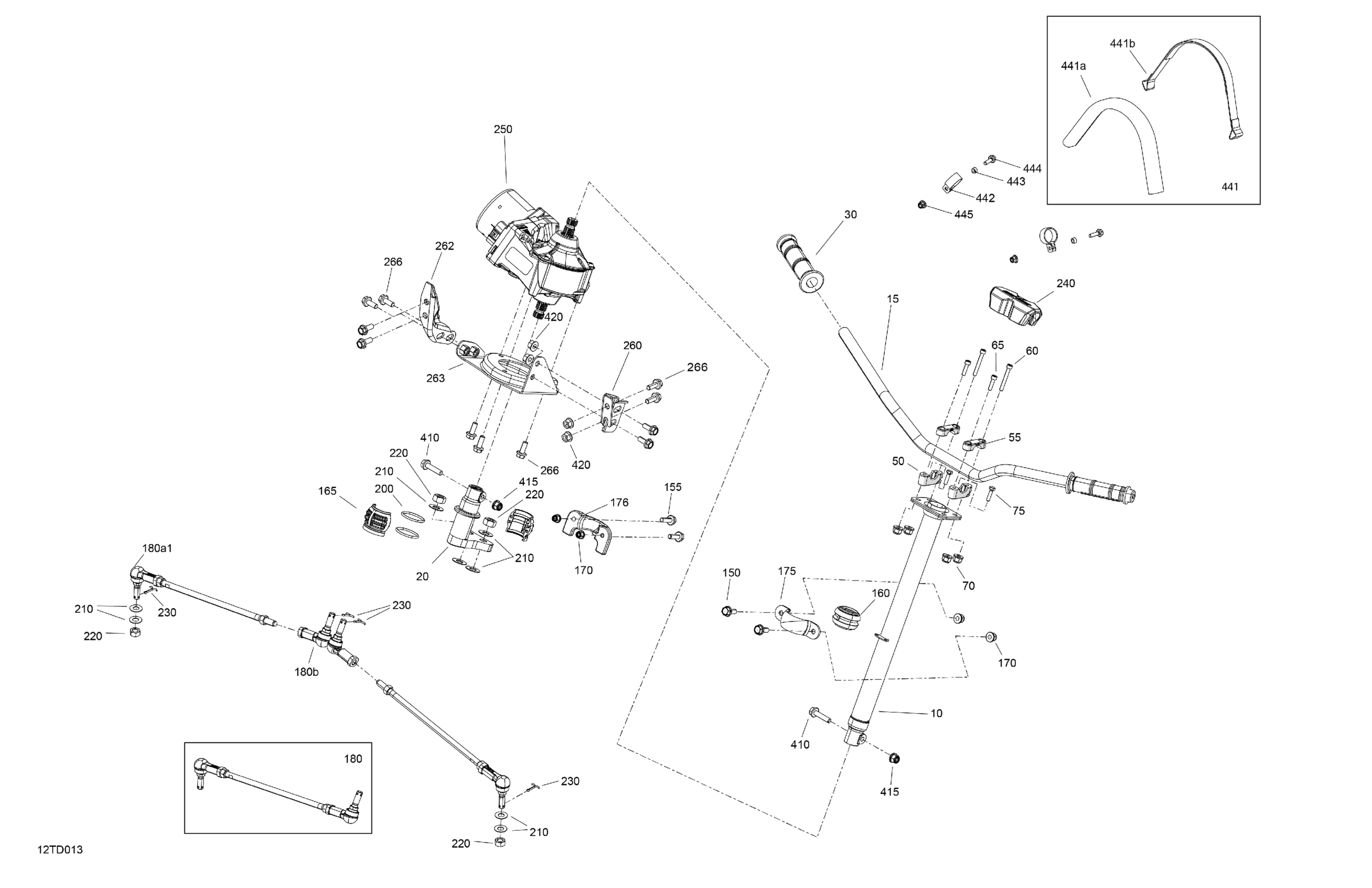

Can-Am CE - Renegade 1000R EFI 4X4 - 4FRD - X MR Package - Hyper Silver, 2024 Mechanic - Steering Diagram

Main Tube Kit | Model With DPS

703501108

$67.66

Anodized Handlebar | Package XTP, XXC

709402292

$64.58

Pitman Arm | Model XMR

703501161

$41.51

Handle Grip

709400493

$14.75

Lower Mounting Clamp

709402750

$27.66

Upper Mounting Clamp

709402749

$27.66

Socket Head Screw M8 X 60

205086060

$3.38

Socket Head Screw M8 X 30, Scotch Grip

205583060

$2.89

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Screw M8 X 30

207183060

$1.30

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Screw M8 X 25

207682544

$0.90

Spherical Bushing

709402169

$6.14

Spherical Half Bushing

709400783

$6.14

Hex. Elastic Flange Nut M8

233281416

$1.25

Upper Column Attachment

709400827

$1.00

Column Attachment

709401428

$36.12

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$106.12

LH Ball Joint

709402303

$35.14

RH Ball Joint

709402302

$35.14

O-Ring

293300068

$5.29

Hardened Washer

706200281

$2.34

Hex Nut M12

250100239

$1.64

Cotter Pin

211400013

$0.32

Steering Cover | XTP

709402328

$87.66

Power Steering Ass'y | Model With DPS

709403187

Unavailable

LH Power Steering Bracket | Model With DPS

709402184

$15.35

RH Power Steering Support

709402978

$27.66

Power Steering Support

709402969

$16.89

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Nut

233081436

$1.63

Strap Ass'y | Package XMR

506152115

$43.05

Strap Ass'y | Package XMR

506152115

$43.05

Strap Ass'y | Package XMR

506152115

$43.05

Deep Black, Crimp Clamp

709402998

$16.89

Bushing | Package XMR

506152156

$5.35

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Elastic Nut M6

233261466

$1.66
