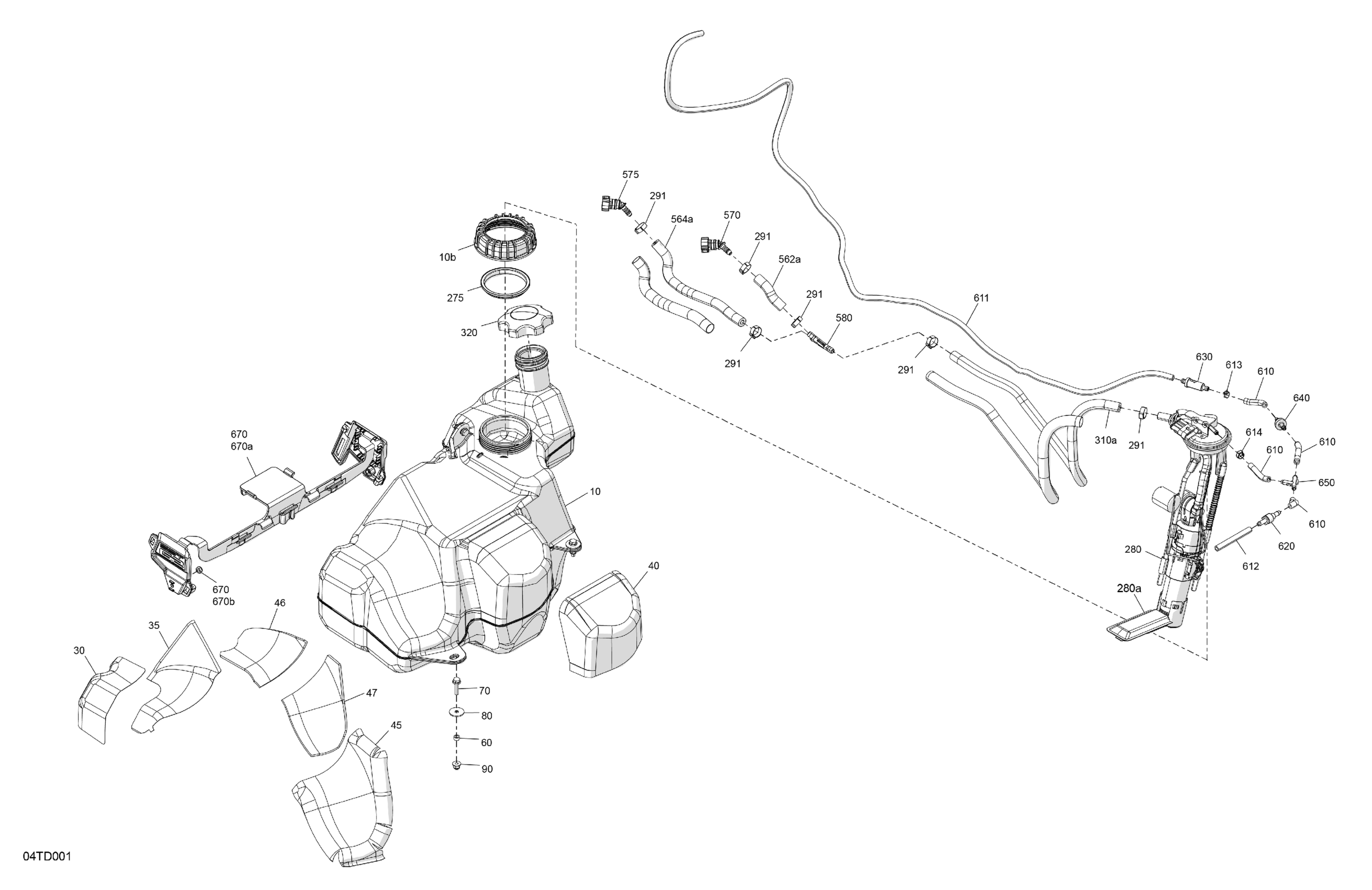

Can-Am CE - Renegade 1000R EFI 4X4 - 4FRD - X MR Package - Hyper Silver, 2024 Engine - Fuel Diagram

Description

Price

Fuel Tank Ass'y | Includes 10 to 10b

709000843

$236.54

10b

Fuel Pump Module Nut

709000328

$12.43

Heat Reflective Sheet

709000381

$5.18

Heat Reflective Sheet

709000387

$3.81

Heat Reflective Sheet

709001071

$8.48

Heat Reflective Sheet

709000388

$4.76

Heat shield

709000527

$16.39

Heat shield

709000528

$16.39

Bushing | DS 650 X

293900104

$5.10

Hex. Flange Screw M6 X 25

207662544

$0.61

Washer

224060251

$0.55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

275

Seal

709000208

$12.16

280

Fuel Pump | Includes 10a to 10b

709001517

$323.94

280a

Fuel Pre-Filter Kit

709000389

$73.85

291

Crimp Clamp

293650053

$2.78

310a

Hose 7,94 MM ID 3000MM Long

219704475

$81.31

320

Fuel Tank Cap

513033025

$22.36

562a

Hose 7,94 MM ID 3000MM Long

219704475

$81.31

564a

Hose 7,94 MM ID 3000MM Long

219704475

$81.31

570

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$14.48

575

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$14.48

580

Y Fitting

709001329

$9.85

610

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

611

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

612

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

613

Spring Clamp

414415200

$0.81

614

Oetiker Clamp

293650042

$2.82

620

Check Valve

513033469

$29.07

630

Filter

709001120

$7.48

640

Check Valve

275500398

$9.84

650

Y-Fitting

293710059

$9.40

670

Hose Support Ass'y

709000359

$13.39

670a

Hose Support Ass'y

709000359

$13.39

670b

Hex. Elastic Stop Nut M6

232561600

$1.06
