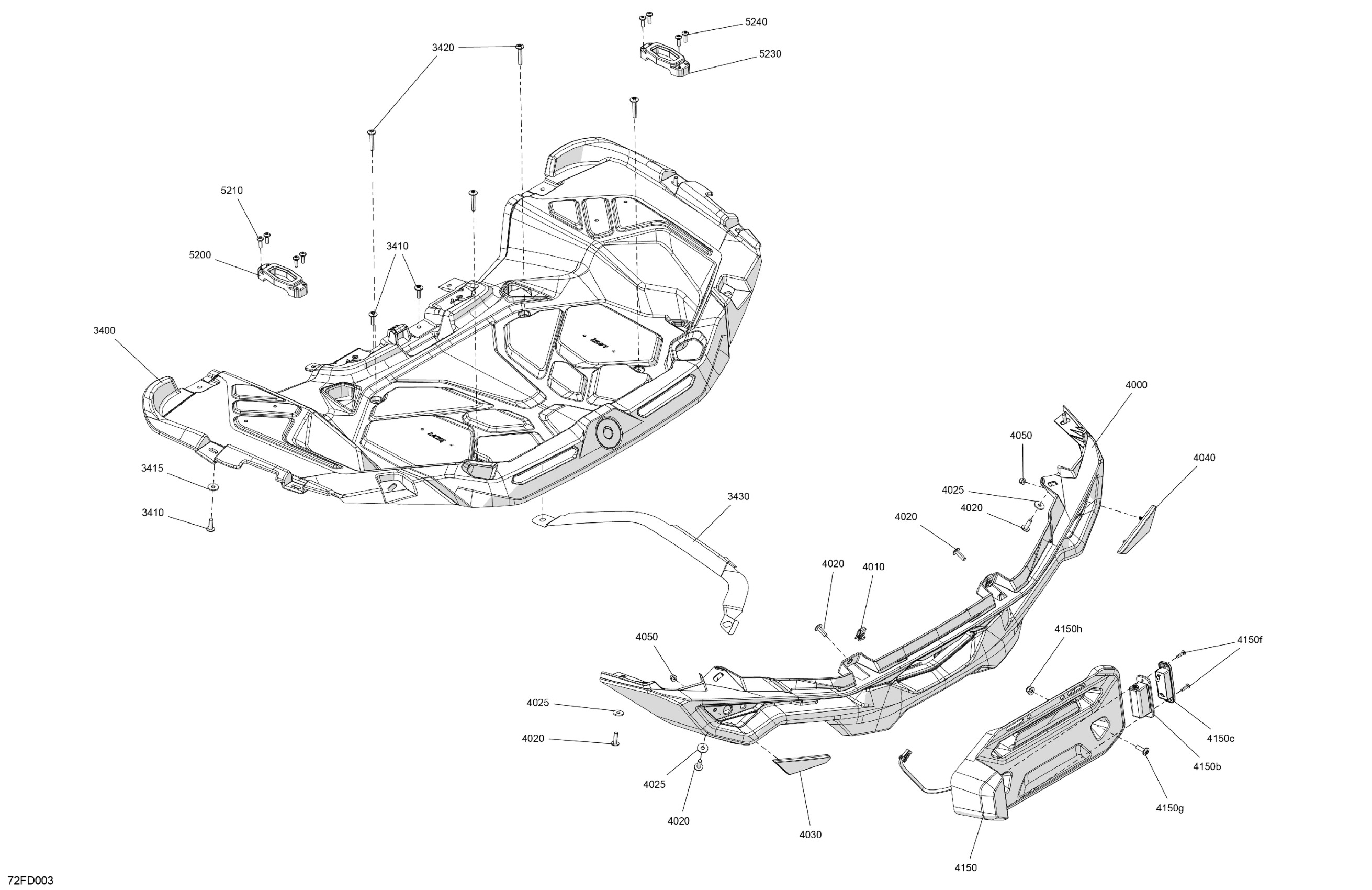

Can-Am CE - Outlander PRO Max HD7 4X4 - 2BRB - XU Package - Tundra Green, 2024 Body - Rear Section Diagram

Description

Price

3400

Rear Multi Purpose Support Kit

715009542

$131.31

3410

Screw Torx M6 X 20

250001257

$1.54

3415

Flat Washer 6 mm

234062410

$0.73

3420

Screw Torx M6 X 35

250001258

$2.00

3430

Heat Shield

705018564

$3.81

4000

Rear Light Support

705014833

$46.24

4010

Panel Nut M6 X 1.0

250100198

$1.99

4020

Torx-Truss M/S M6 X 25

250001000

$4.97

4025

Flat Washer 6 mm

234062410

$0.73

4030

Red, LH Rear Reflector

705014922

$7.63

4040

Red, RH Rear Reflector

705014923

$7.63

4050

Flange Elastic Nut M5

233251434

$1.91

4150

License Plate Support Kit | Includes 4150 to 4150h

710008955

$134.99

4150b

Rear Connector Guard

710008469

$8.43

4150c

License Light

710005501

$55.19

4150f

Flange Torx Screw K40 X 16

250000287

$2.00

4150g

Torx Screw M6 X 20

250000722

$1.54

4150h

Hex. Flange Elastic Nut M6

233261466

$1.91

5200

Linq Base Kit

715002350

$24.46

5210

Torx Screw K50 X 16

250000720

$1.60

5230
