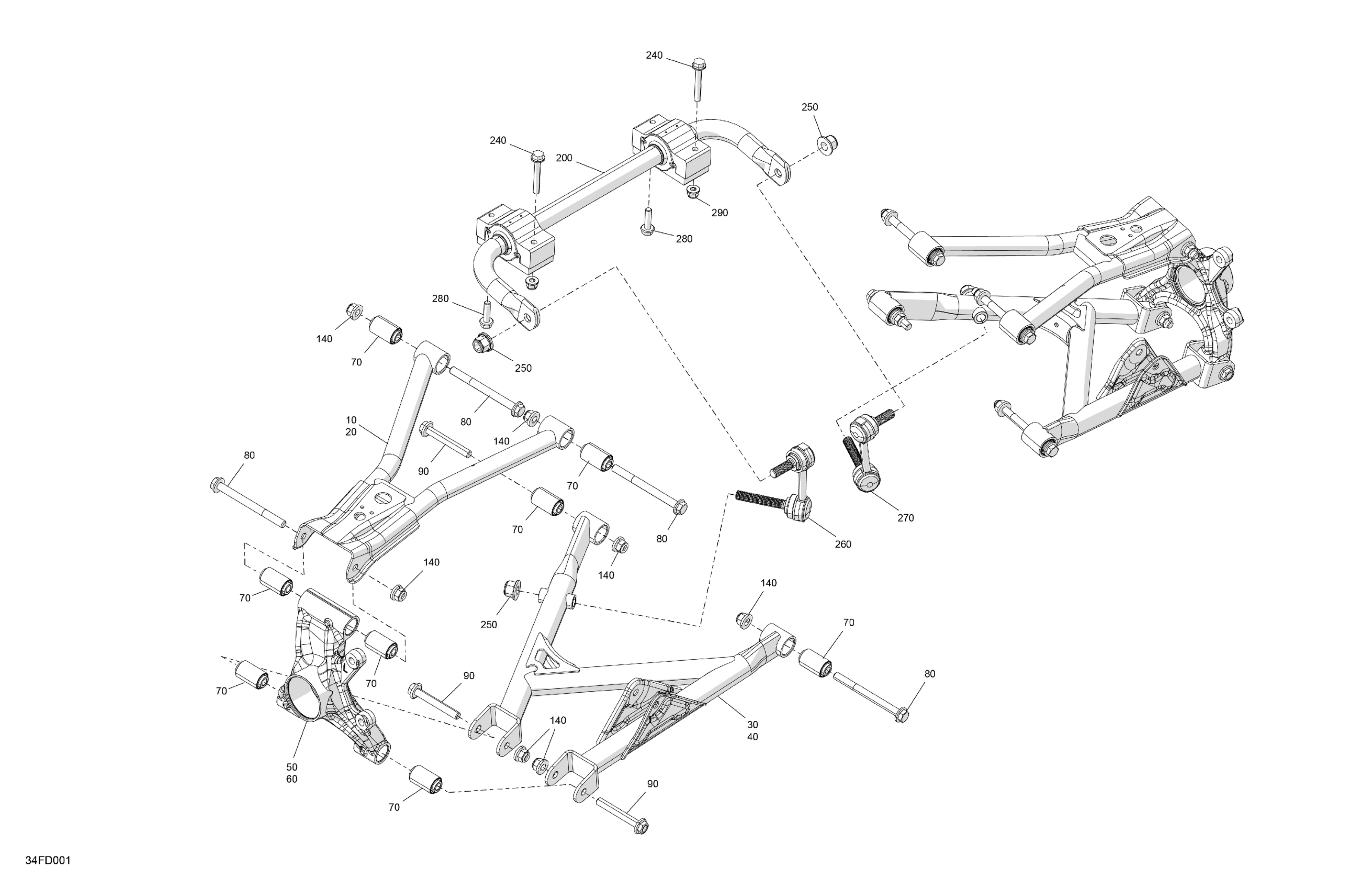

Can-Am CE - Outlander PRO Max HD7 4X4 - 2BRB - XU Package - Tundra Green, 2024 Suspension - Rear Components Diagram

LH Upper Suspension Arm

706003510

$156.89

RH Upper Suspension Arm

706003511

$156.89

LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003512.

715010681

$216.89

RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003513.

715010680

$216.89

LH Rear Knuckle

706004297

$119.97

RH Rear Knuckle

706004298

$119.97

Suspension Arm Bushing

706004511

$12.91

Hex Flange Screw DIN.6921

230601046

$2.20

Hex. Flange Screw M10 X 70

207607046

$2.91

Hex. Flange Elastic Nut M10

233201436

$1.74

Stabilizer Bar Ass'y

706004983

$96.89

Hex. Flange Screw M8 X 55

207685544

$4.41

Hex. Flange Elastic Nut M12

233221414

$5.10

LH Rear Stabilizer Link

706205088

$67.66

RH Rear Stabilizer Link

706205089

$67.66

Hex. Flange Screw M8 X 30 Scotch Grip

250001073

$4.25

Hex. Flange Elastic Nut M8

233281414

$1.14
