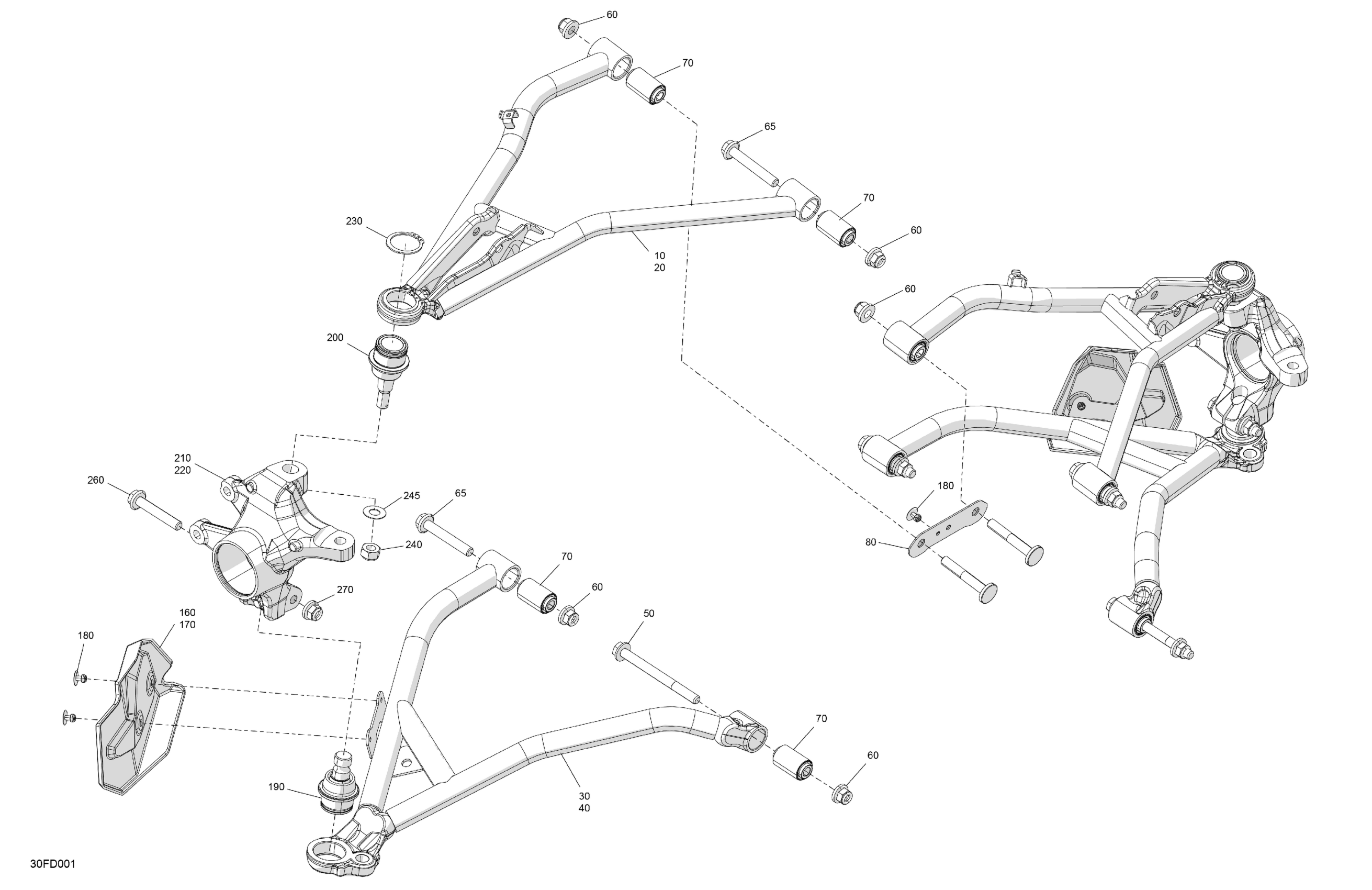

Can-Am CE - Outlander PRO Max HD7 4X4 - 2BRB - XU Package - Tundra Green, 2024 05- Suspension - Front Components Diagram

#

Description
Price

10

LH Upper Suspension Arm

706203185

Unavailable

20

RH Upper Suspension Arm

706203186

Unavailable

30

LH Lower Suspension Arm

706203187

Unavailable

40

RH Lower Suspension Arm

706203188

Unavailable

50

Hex Flange Screw DIN.6921

230601046

Unavailable

60

Hex. Flange Elastic Nut M10

233201436

Unavailable

65

Hex. Flange Screw M10 X 65

207606536

Unavailable

70

Suspension Arm Bushing

706004511

Unavailable

80

Suspension Arm Anchorage

705208352

Unavailable

160

LH CV joint Guard

706202134

Unavailable

170

RH CV joint Guard

706202135

Unavailable

180

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

190

Ball Joint

706202045

Unavailable

200

Ball Joint

706202044

Unavailable

210

LH Knuckle

706203212

Unavailable

220

RH Knuckle

706203213

Unavailable

230

Circlip

293370035

Unavailable

240

Hex. Elastic Hex. Nut M12

250100089

Unavailable

245

Hardened Washer

706200281

Unavailable

260

Hex. Flange Screw M10 X 60

207606044

Unavailable

270

Hex. Flange Elastic Nut M10

233201436

Unavailable
