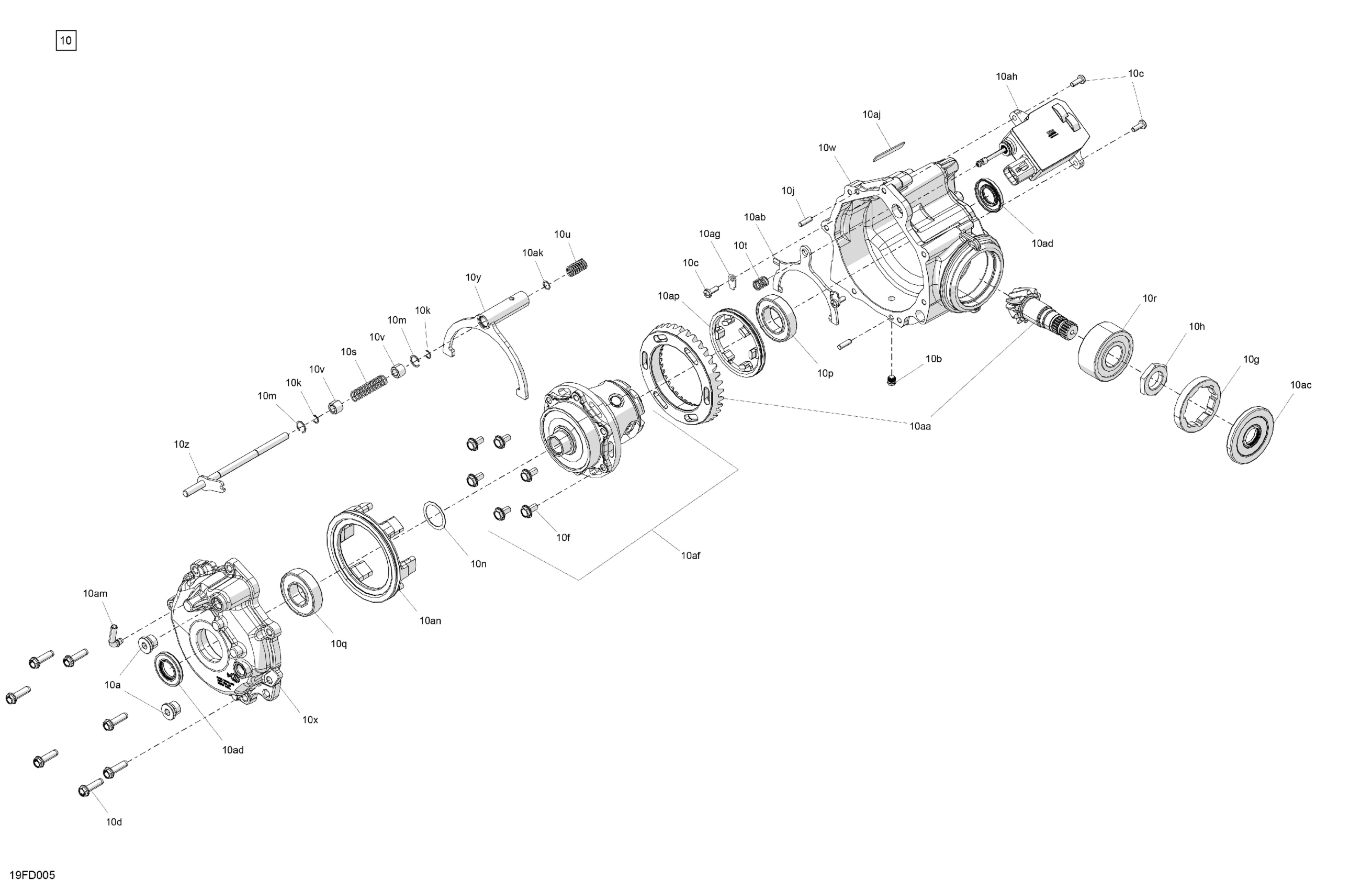

Can-Am CE - Outlander PRO Max HD7 4X4 - 2BRB - XU Package - Tundra Green, 2024 Drive - Front - Differential Parts Diagram

Description

Price

Differential | Includes 10 to 10an

705403528

$1,339.99

10a

Fill Level Plug

705501889

$20.49

10b

Fill Level Plug M10

715900563

$27.49

10c

Torx Screw M6 X 16

705402845

$11.05

10d

Bolt

705501886

$7.69

10f

Custom Hex Screw Flange Head

715900798

$2.99

10g

Nut M75 X 1.5

705401819

$23.99

10h

Nut M27 X 1.5

705401820

$20.99

10j

Dowel Pin

715900559

$6.67

10k

Ring External Shaft

715900719

$28.99

10m

Ring, Internal Spiral Housing

715900720

$28.99

10n

Shim | 4X4

705401604

$57.99

10p

Ball Bearing

705402847

$49.99

10q

Ball Bearing | 4X4

705401606

$51.99

10r

Ball Bearing

715900721

$67.99

10s

Spring

715900722

$71.99

10t

Compression Spring | Not Shown

715900802

$31.99

10u

Locker Spring | Not Shown

715900803

$11.99

10v

Bushing

715900725

$19.99

10w

Case

715900804

$312.49

10x

Cover

715900805

$142.99

10y

Disconnect Fork

715900727

$83.99

10z

Shift Rail

715900728

$31.99

10aa

Bevel Gear Set

715900730

$1,019.99

10ab

Front Differential Pivot Fork | Not Shown

715900807

$48.99

10ac

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

10ad

Oil Seal

705401836

$7.51

10af

Differential Sub-Assembly

715900811

$932.99

10ag

Retainer Fork | Not Shown

715900766

$14.49

10ah

Actuator

715900952

$234.99

10aj

Label

715900812

Unavailable

10ak

Thrust Washer | Not Shown

715900801

$35.99

10am

Vent Valve

705401935

$16.49

10an

Disconnect

715900726

$80.99

10ap

Dog Lock | Not Shown

715900806

$42.99
