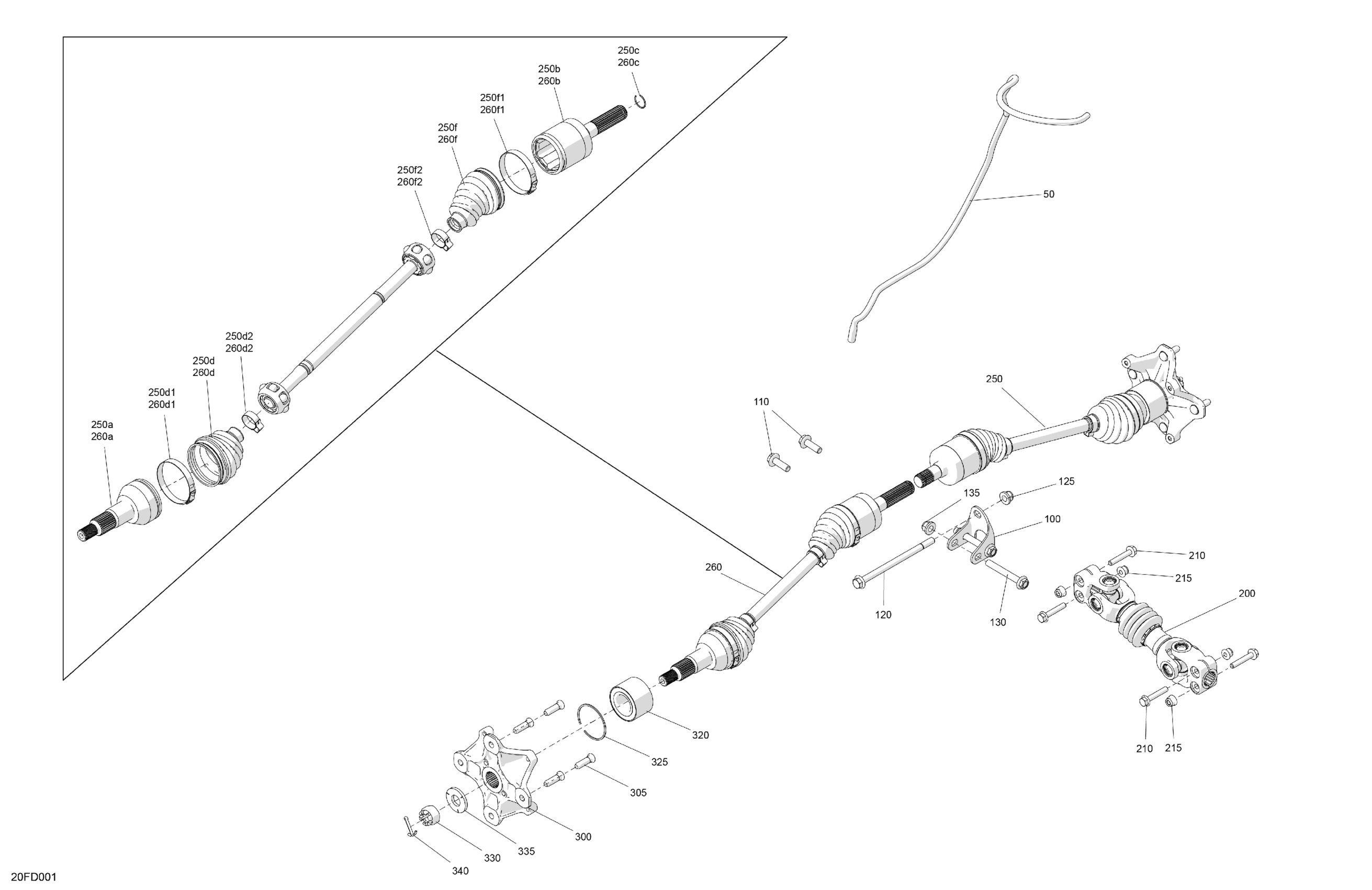

Can-Am CE - Outlander PRO Max HD7 4X4 - 2BRB - XU Package - Tundra Green, 2024 Drive - Front - Common Parts Diagram

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

Support

705402706

$6.92

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

Hex. Flange Screw M10 X 160

230606046

$7.20

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Flange Screw M10 X 75

207607544

$6.86

Hex. Flange Elastic Nut M10

233201436

$1.74

Front Drive Axle | Includes 200 to 200c

705402696

$249.20

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

Hex. Elastic Flange Nut M8

233281416

$1.25

RH Front CV Joint | Includes 250 to 250f

705402250

$232.74

JOINT CV FIX - Call your local BRP dealership

715500453

Unavailable

PLUNGING JOINT - Call your local BRP dealership

715500454

Unavailable

Circlip Joint

715500455

$5.52

CV Joint Boot Kit | Includes 250d to 250d2

715500456

$41.51

Clamp Large

715500472

$5.52

Clamp Small

715500473

$4.60

CV Joint Boot Kit | Includes 250f to 250f2

715500457

$41.51

Clamp Large

715500474

$5.52

Clamp Small

715500473

$4.60

LH Front CV Joint | Includes 260 to 260f

705402251

$233.82

JOINT CV FIX - Call your local BRP dealership

715500453

Unavailable

Plunging Joint

715500458

$249.20

Circlip Joint

715500455

$5.52

CV Joint Boot Kit | Includes 250d to 250d2

715500456

$41.51

Clamp Large

715500472

$5.52

Clamp Small

715500473

$4.60

CV Joint Boot Kit | Includes 250f to 250f2

715500457

$41.51

Clamp Large

715500474

$5.52

Clamp Small

715500473

$4.60

Wheel Hub

705503257

$101.51

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

Ball Bearing

293350150

$51.93

Circlip

293370019

$4.98

Hex. Flange Castellated Nut M18

232291413

$2.82

Conical Spring Washer M18

250200171

$5.28

Cotter Pin

250400071

$1.74
