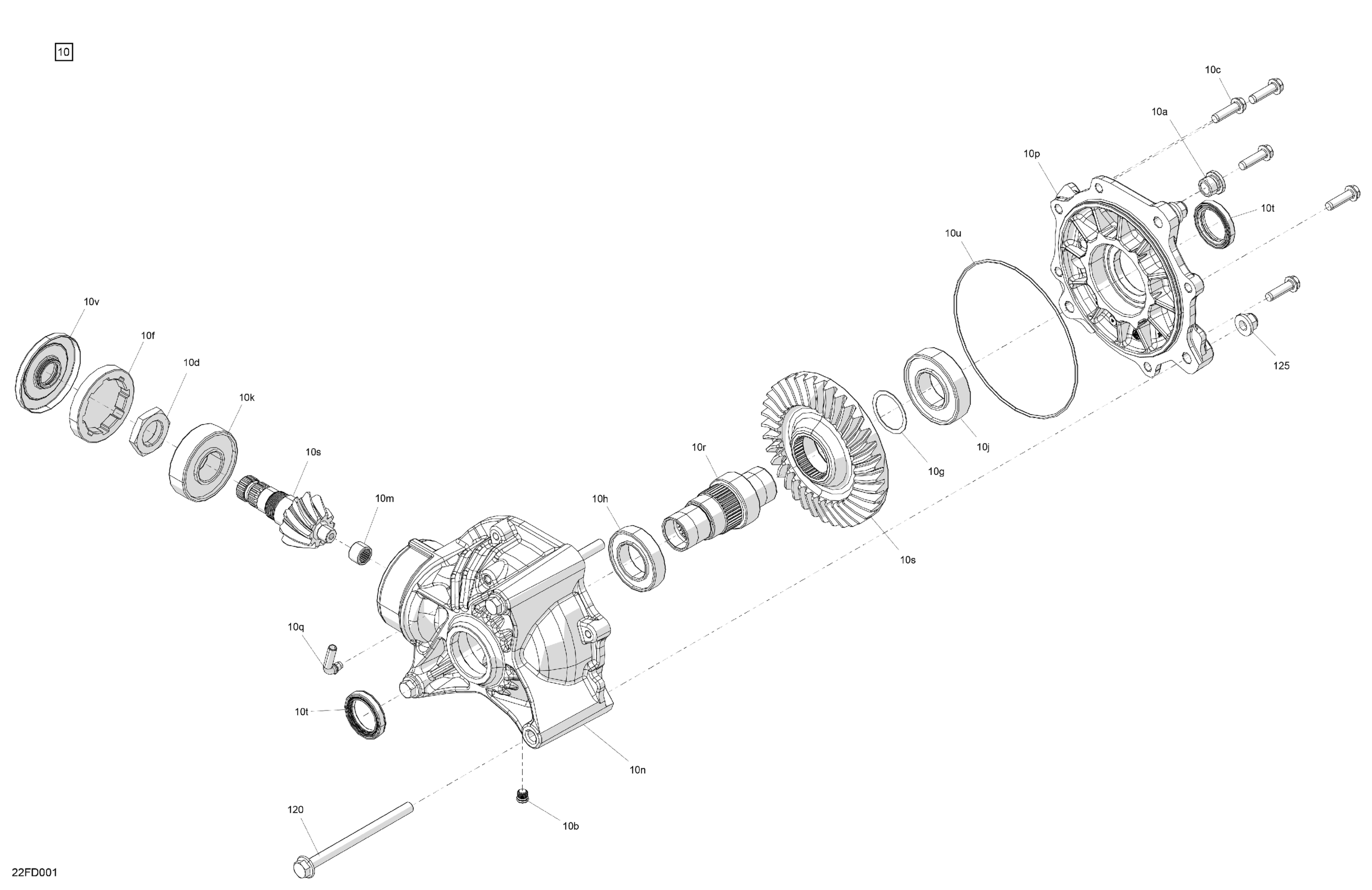

Can-Am Off-Road CE - Outlander PRO Max HD7 4X4 - 2BRB - XU Package - Tundra Green, 2024 04- Drive - Final Drive Unit Diagram

Description

Price

Final Drive Unit | Includes 10 to 10v

705503576

$1,292.99

10a

Fill Level Plug

705501889

$20.49

10b

Fill Level Plug M10

715900563

$27.49

10c

Bolt

705501886

$7.69

10d

Round Slotted Nut

705503362

$13.76

10f

Nut Slotted Round

705503578

$32.99

10g

Shim

705402846

$32.99

10h

Ball Bearing

705402847

$49.99

10j

Ball Bearing

705503365

$51.99

10k

Ball Bearing

705401821

$31.99

10m

Ball Bearing | After May 30, 2014

705402848

$49.99

10n

Final Drive Housing

705503577

$163.99

10p

Final Drive Cover

705502866

$142.99

10q

Vent Valve

705401935

$16.49

10r

Hub, Output 24 T

715500450

$299.99

10s

Sub Assembly, Bevel Gear Set 10T/36

715500451

$409.99

10t

Final Drive Gasket

705503366

$20.49

10u

O-Ring Seal

705503367

$30.49

10v

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

120

Hex. Flange Screw M10 X 135

250001041

$5.59

125

Hex. Flange Elastic Nut M10

233201436

$2.11
