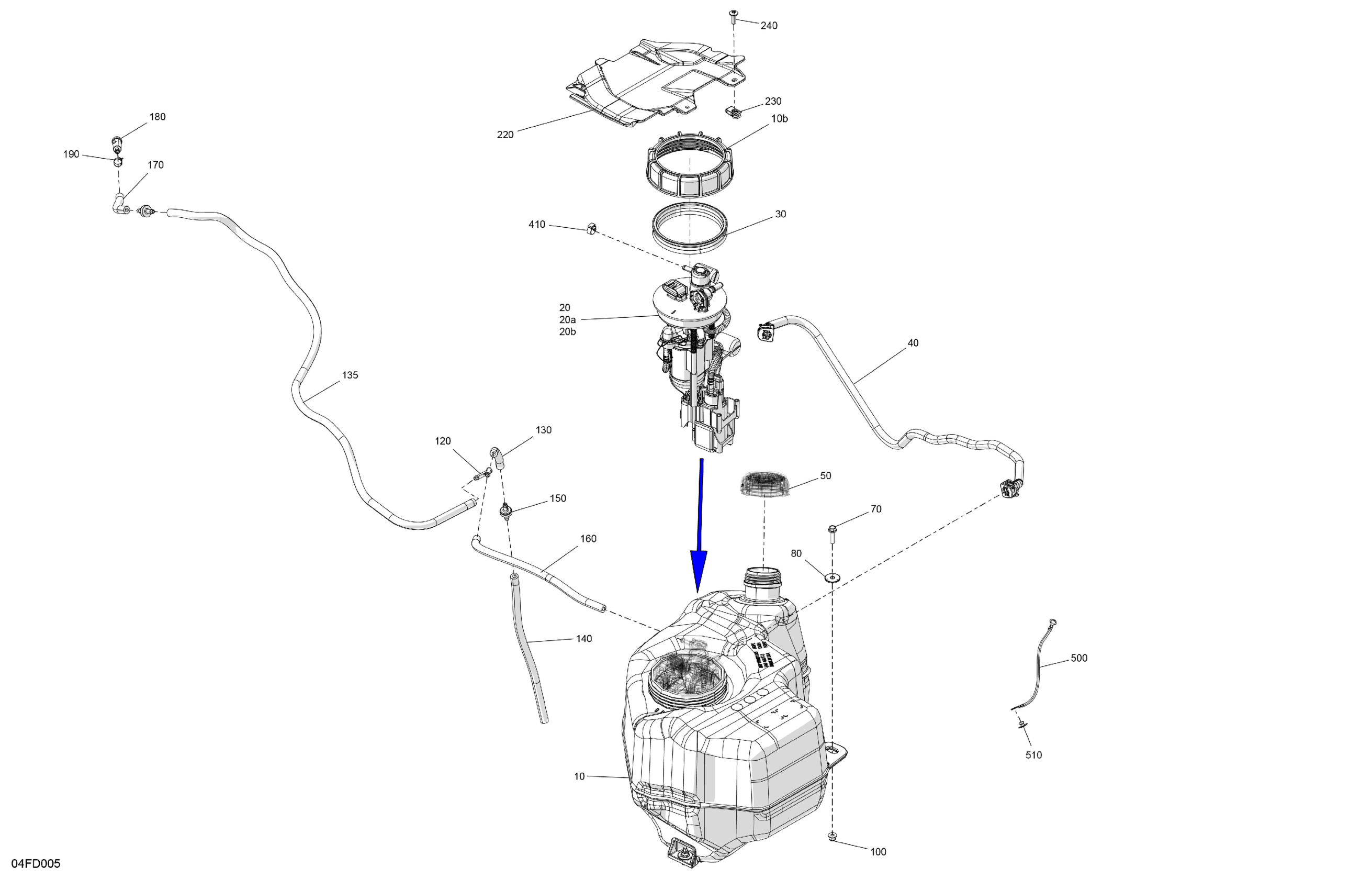

Can-Am CE - Outlander PRO Max HD7 4X4 - 2BRB - XU Package - Tundra Green, 2024 Engine - Fuel Diagram

Description

Price

Fuel Tank | Includes 10 to 10b

709001182

$286.12

10b

Special Nut M130

250100062

$17.52

Fuel Pump | Includes 20 to 20b

709001192

$353.87

20a

Fuel Pre-Filter

709001390

$76.12

20b

Fuel Level Sensor This part replaces 709001391.

709001695

Unavailable

Gasket

293250173

$15.57

Fuel Tank Hose

709001096

$39.97

Fuel Cap

709000868

$32.28

Hex. Flange Screw M6 X 25

207662554

$1.48

Shouldered Bushing

709001343

$2.99

100

Hex. Flange Elastic Nut M6

233261466

$1.66

120

Y-Fitting

293710059

$8.19

130

Hose 6.35MM ID

219704534

$23.05

135

Hose 6.35MM ID

219704534

$23.05

140

Hose 6.35MM ID

219704534

$23.05

150

Check Valve

275500398

$8.57

160

Hose 6.35MM ID

219704534

$23.05

170

Hose 6.35MM ID

219704534

$23.05

180

Filter

709001120

$8.29

190

Spring Clamp

414415200

$0.83

220

Panel

709001104

$17.66

230

Panel Nut M6 X 1.0

250100198

$1.73

240

Torx Screw M6 X 20

250000722

$1.34

410

Oetiker Clamp

293650046

$2.33

500

Ground Wire

278003272

$16.22

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.54
