Description

Price

10

Exhaust Gasket

707602697

$4.69

20

Hex. Flange Nut

233081436

$1.87

30

Exhaust Pipe | Includes 30 to 30k

707602958

$249.22

45

Exhaust Gasket

707603475

$24.60

50

Spring

707601834

$6.01

60

Exhaust Muffler Ass'y | Includes 60 to 60g

707602965

$1,041.01

60b

Gasket

707602780

$10.51

60c

Tail Pipe | Includes 60c to 60c4

707602969

$81.31

60d

Threaded Insert M8 X 1.25

250100238

$0.76

60f

Hex. Flange Screw M8 X 25

207682544

$1.03

60g

Lock Washer Din.127B

707603743

$1.87

61

External Retaining Ring

293370184

$1.89

70

Oxygen Sensor

707600872

$132.81

80

Vibration Damper

707603000

$6.73

81

Muffler Support

707603200

$15.64

85

Hex Flange Screw M6 X 16

250000906

$5.04

86

Hex. Flange Nut M6

233161414

$2.00

200

Heat Shield

707603428

$42.51

201

Heat Shield Support

707603029

$3.29

202

Flat Washer

517225900

$0.16

203

Pop Rivet 3/16”

390910000

$0.55

205

Flat Washer 6 mm

234062410

$0.73

206

Hex Flange Screw M6 X 16

250000906

$5.04

210

Heat Shield

707603768

$60.99

215

Flat Washer 6 mm

234062410

$0.73

216

Hex Flange Screw M6 X 16

250000906

$5.04

217

Hex. Flange Nut M6

233161414

$2.00

220

Heat Shield

707603002

$32.81

221

Panel Nut M6 X 1.0

250100208

$1.22

222

Rubber Bumper

293830005

$6.12

225

Flat Washer 6 mm

234062410

$0.73

226

Hex Flange Screw M6 X 16

250000906

$5.04

227

Hex. Flange Screw M6 X 45

207664544

$1.22

228

Flat Washer 6 mm

234062410

$0.73

229

Hex Flange Screw M6 X 16

250000906

$5.04

230

Heat Shield

707603003

$32.81

231

Panel Nut M6 X 1.0

250100208

$1.22

235

Flat Washer 6 mm

234062410

$0.73

236

Hex Flange Screw M6 X 16

250000906

$5.04

250

Heat Shield

707603005

$11.87

255

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

280

Heat Shield

707603006

$11.87

285

Flat Washer 6 mm

234062410

$0.73

286

Hex Flange Screw M6 X 16

250000906

$5.04

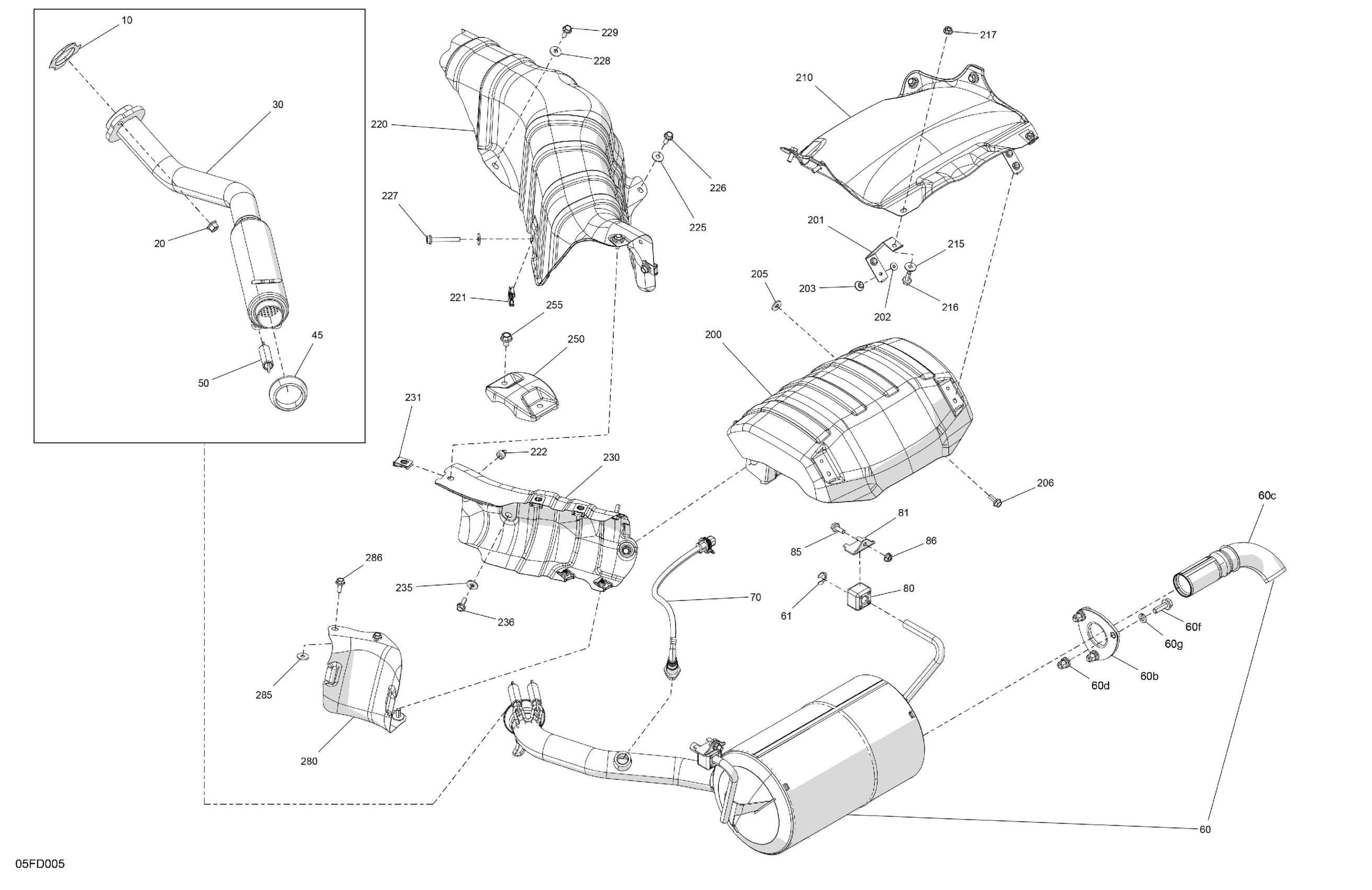

Can-Am CE - Outlander PRO Max HD7 4X4 - 2BRB - XU Package - Tundra Green, 2024 Engine - Exhaust Diagram

Exhaust Gasket

Hex. Flange Nut

Exhaust Pipe | Includes 30 to 30k

Exhaust Gasket

Spring

Exhaust Muffler Ass'y | Includes 60 to 60g

Gasket

Tail Pipe | Includes 60c to 60c4

Threaded Insert M8 X 1.25

Hex. Flange Screw M8 X 25

Lock Washer Din.127B

External Retaining Ring

Oxygen Sensor

Vibration Damper

Muffler Support

Hex Flange Screw M6 X 16

Hex. Flange Nut M6

Heat Shield

Heat Shield Support

Flat Washer

Pop Rivet 3/16”

Flat Washer 6 mm

Hex Flange Screw M6 X 16

Heat Shield

Flat Washer 6 mm

Hex Flange Screw M6 X 16

Hex. Flange Nut M6

Heat Shield

Panel Nut M6 X 1.0

Rubber Bumper

Flat Washer 6 mm

Hex Flange Screw M6 X 16

Hex. Flange Screw M6 X 45

Flat Washer 6 mm

Hex Flange Screw M6 X 16

Heat Shield

Panel Nut M6 X 1.0

Flat Washer 6 mm

Hex Flange Screw M6 X 16

Heat Shield

Hex. Flange Screw M8 X 12, Scotch Grip

Heat Shield

Flat Washer 6 mm

Hex Flange Screw M6 X 16
