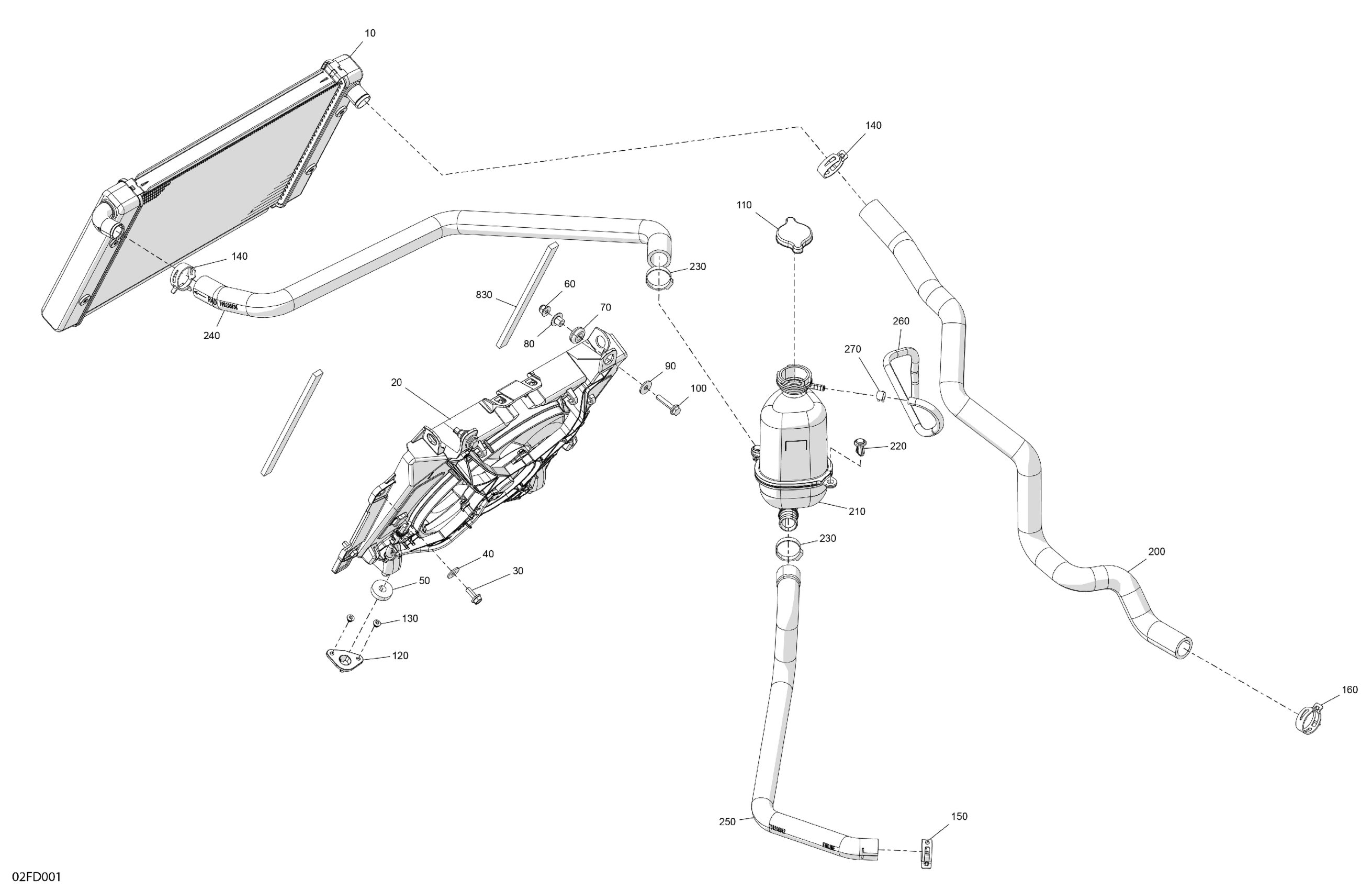

Can-Am Off-Road CE - Outlander PRO Max HD7 4X4 - 2BRB - XU Package - Tundra Green, 2024 02- Engine - Cooling Diagram

Description

Price

Radiator

709200762

$419.99

Cooling Fan

715009561

$259.99

Hex Flange Screw M6 X 16

250000906

$5.29

Flat Washer 6 mm

234062410

$0.77

Grommet

709200948

$8.89

Hex. Flange Elastic Nut M6

233261466

$2.00

Overmolded Grommet

293720130

$4.69

Bushing

709001288

$9.09

Flat Washer

250200082

$0.42

100

Hex. Flange Screw M6 X 30

207663046

$1.69

110

Radiator Pressure Cap

709200207

$25.49

120

Radiator Support

709201149

$7.19

130

Pop Rivet 3/16"

390402200

$0.35

140

Norma Spring Clamp

293650108

$4.12

150

Norma Spring Clamp

293650109

$4.12

160

Norma Spring Clamp

293650108

$4.12

200

Coolant Hose

709200944

$34.99

210

Coolant Tank

715009560

$99.99

220

Tuflok Plastic Rivet

293150230

$1.47

230

Oetiker Clamp

293650141

$4.29

240

Coolant Hose

709200936

$34.99

250

Coolant Hose

709200942

$33.99

260

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

270

Spring Clamp

414554800

$0.88

830

Seal 3000MM Long

219704386

$28.49
