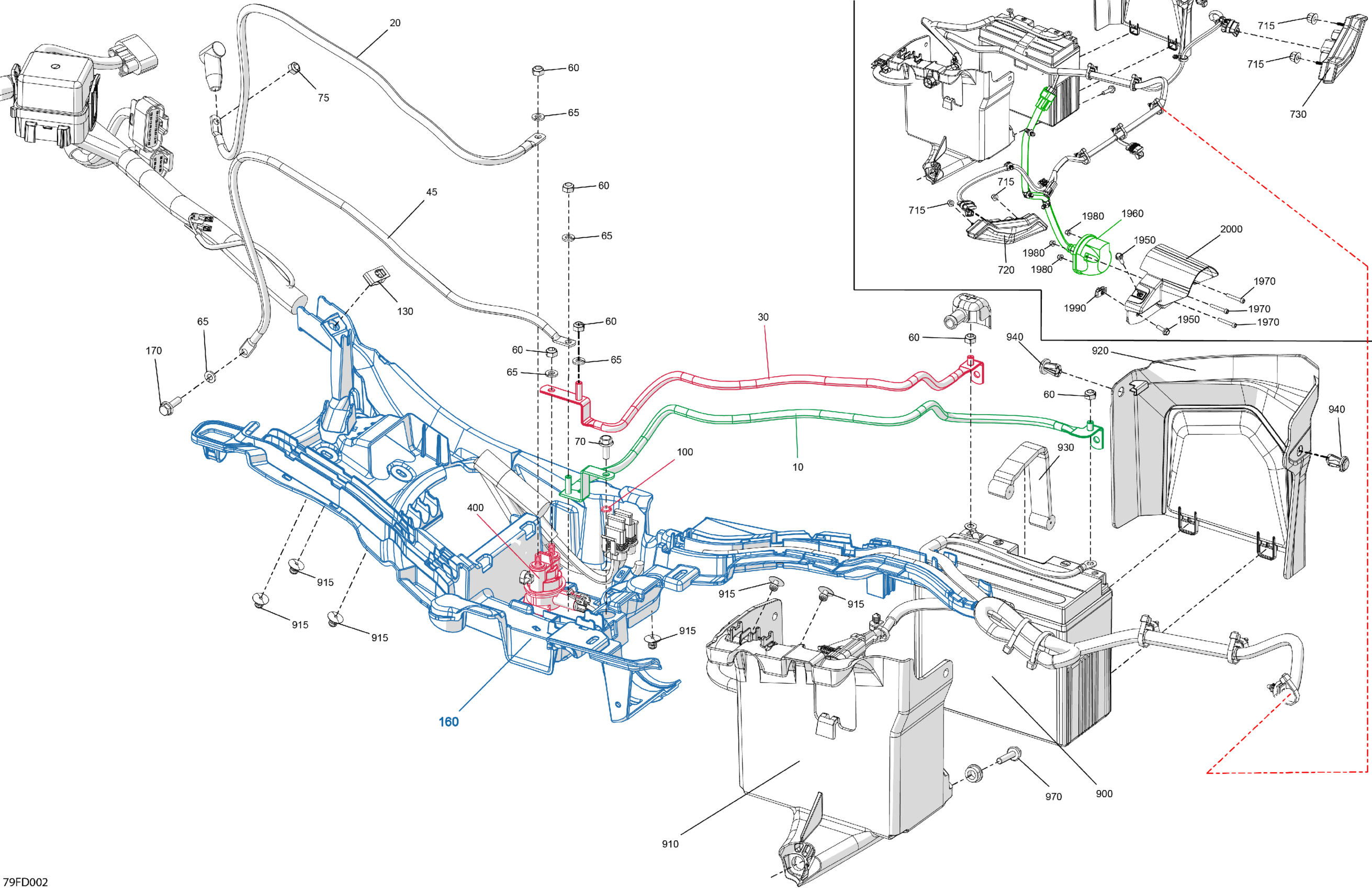

Can-Am CE - Outlander PRO HD7 4X4 - 1MRF - XU Package - Tundra Green, 2024 08- Electric - Rear Section Diagram

#

Description

Price

10

Negative Cable

710009367

Unavailable

20

Positive Cable

710006411

Unavailable

30

Positive Cable

710009368

Unavailable

45

Negative Cable

710007321

Unavailable

60

Elastic Stop Nut M6

232561434

Unavailable

65

Lock Washer Helical M6

234161601

Unavailable

70

Hex. Flange Screw M6 X 16

207661646

Unavailable

75

Elastic Stop Nut M6

232561434

Unavailable

100

External Serrated Lock Washer 6 mm

234461608

Unavailable

130

Panel Nut M6 X 1.0

250100198

Unavailable

160

Starter Relay Support

710006305

Unavailable

170

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

Unavailable

400

Starter Relay

278003012

Unavailable

715

Flange Elastic Nut M5

233251434

Unavailable

720

LH Rear Tail Light

710008427

Unavailable

730

RH Rear Tail Light

710008428

Unavailable

900

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

Unavailable

910

Battery Support

710008195

Unavailable

915

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

920

Battery Cover

710008267

Unavailable

930

Holding Strap

293850112

Unavailable

940

Tuflok Plastic Rivet

293150230

Unavailable

970

Hex. Flange Screw M6 X 25

207562544

Unavailable

1950

Hex. Flange Screw M6 X 20

207662046

Unavailable

1960

Trailer Harness

710005846

Unavailable

1970

Socket Head Screw M5 X 35

205053588

Unavailable

1980

Flange Elastic Nut M5

233251434

Unavailable

1990

Panel Nut M6 X 1.0

250100198

Unavailable

2000

Trailer Hicth Support

710008961

Unavailable

4710

Screw | Not Shown

710009084

Unavailable

4720

Washer | Not Shown

710009082

Unavailable
